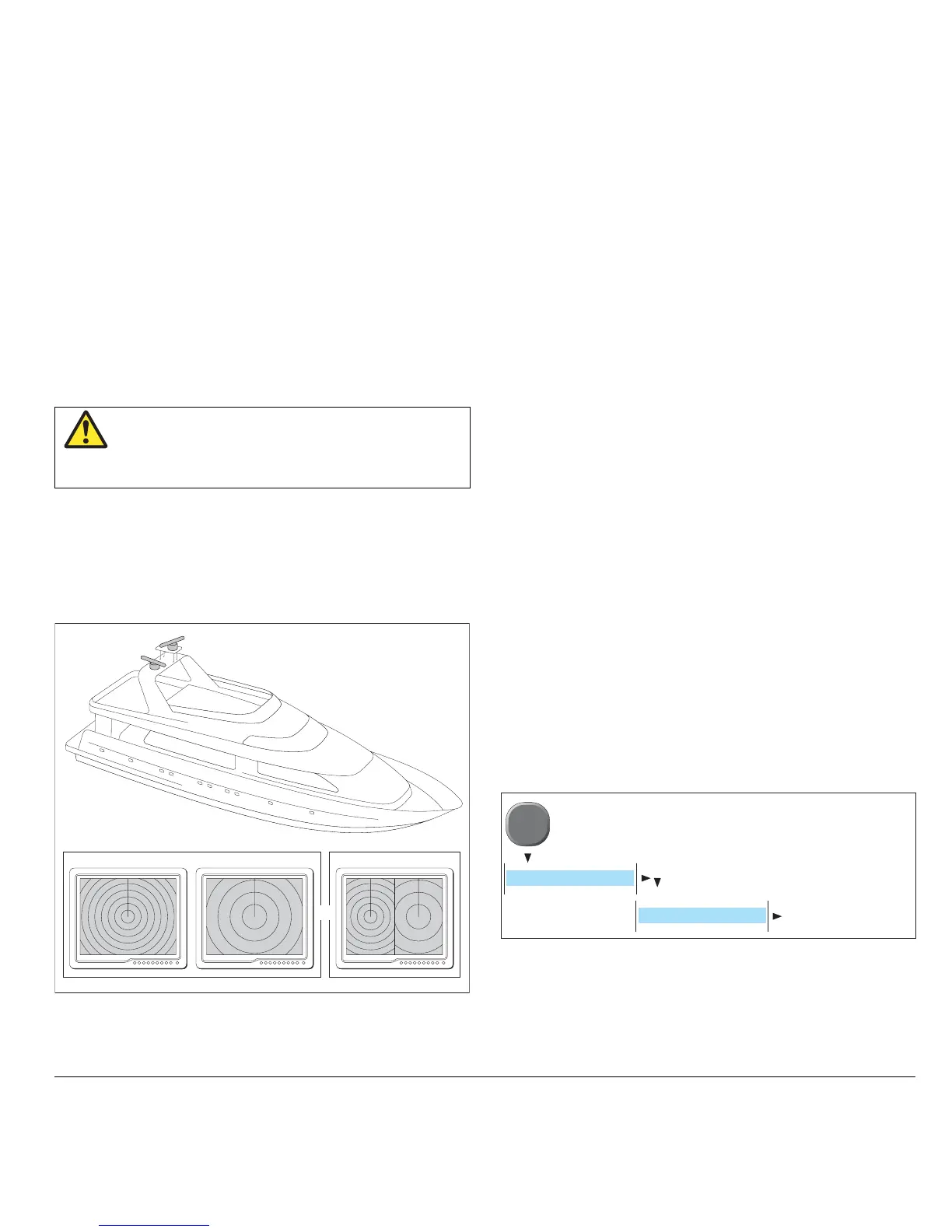

83 Chapter 8: Commissioning
8.3 Radar setup
2 scanner systems
The system may have 2 digital scanners connected. You can select
the scanner to be used for each radar window.
For 2 scanner systems you must repeat the instructions in this
(Radar setup) section, once for each scanner.
Initialize radar and set to transmit
You will need to:
• Initialize the radar
• Select a scanner (2 scanner systems only)
• Set radar to transmit
To initialize the radar
Select a Radar page by either:
i. Press the PAGE key to select from the current page set.
OR
ii. Press and hold the PAGE key to select from all available
pages.
The Radar scanners will now initialize in standby mode, this pro-
cess will take approximately 70 seconds.
If the radar fails to initialize, refer to Chapter 9:
Troubleshooting. Page 91.
To assign scanners (2 scanner systems only)
For 2 scanner systems you must select which scanner is to be used
for the current radar view.
Scanners are listed by serial number (or name if assigned).
1. Select the appropriate scanner from those displayed.
2. Press OK when done.
Note: The EDIT NAME softkey allows you to assign a name to
each scanner connected
Electromagnetic energy
The radar scanner transmits electromagnetic
energy. Ensure all personnel are clear of the
scanner before switching to Tx (transmit mode).
Radar 1 (long range)
D10513-1
Radar 1 Radar 2Radar 2 (short range)
Radar 1
Radar 2
OR
D10340-1
MENU
RADAR SETUP
ASSIGN SCANNERS
To Next Page
