Raymarine Pathfinder GyroPlus 2 User Manual

8 Pathfinder Smart Heading System - Owner’s Handbook
2 Installation
2.2 Installing the GyroPlus 2 unit

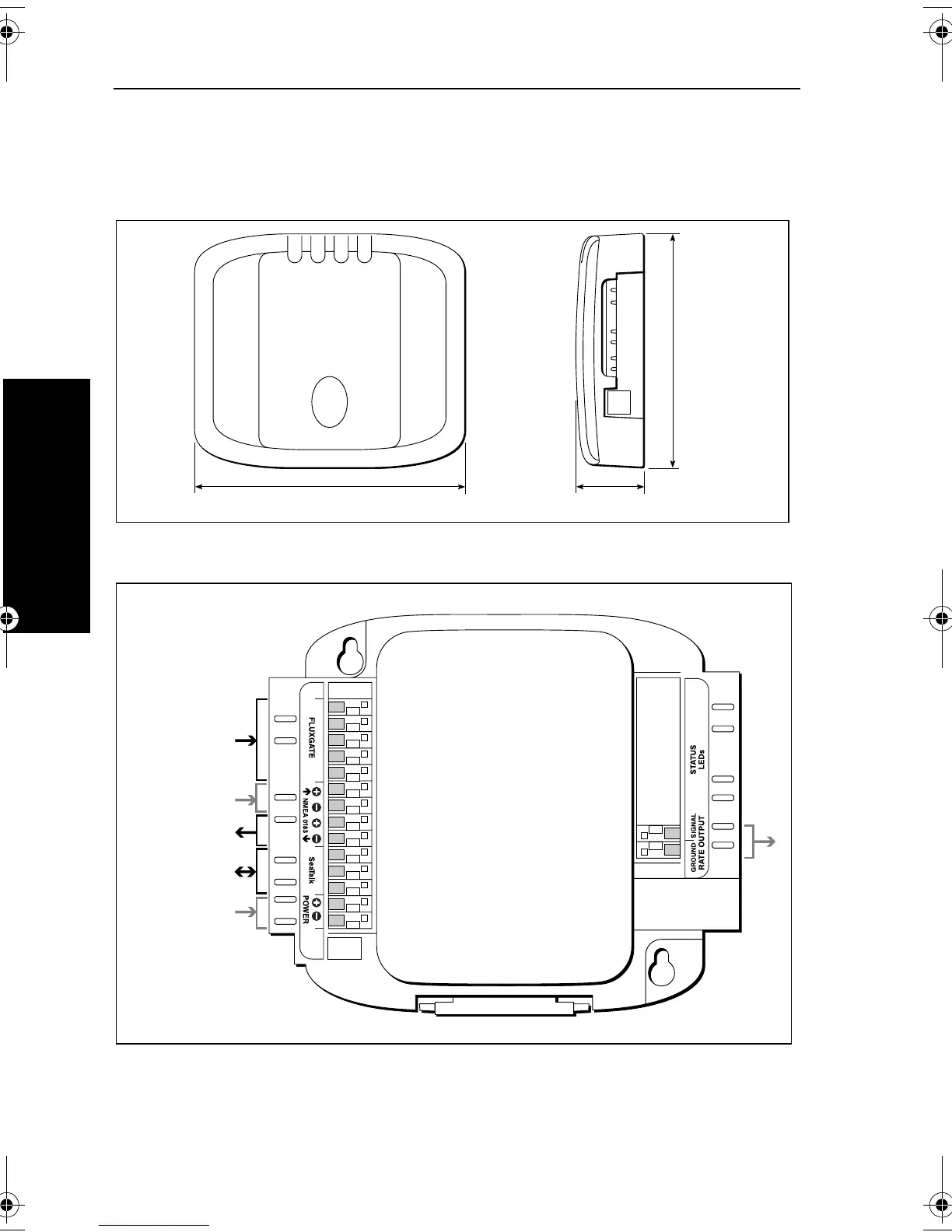

GyroPlus 2 unit - dimensions
GyroPlus 2 unit - inputs/outputs
D5915-1
150 mm (5.9 in)
39 mm
(1.5 in)
130 mm (5.1 in )
D5916-1
GyroPlus 2 unit - inputs/outputs
Fluxgate
compass in
NMEA 0183 in
Not used
NMEA 0183 out
Heading at 10 Hz,
±2˚ accuracy, 0.1˚ resolution
SeaTalk in/out
including Heading at 2 Hz,
±2˚ accuracy, 0.5˚ resolution
Power in
10 V to 32 V
Rate
output
22 mV/˚/sec
