2 Installation

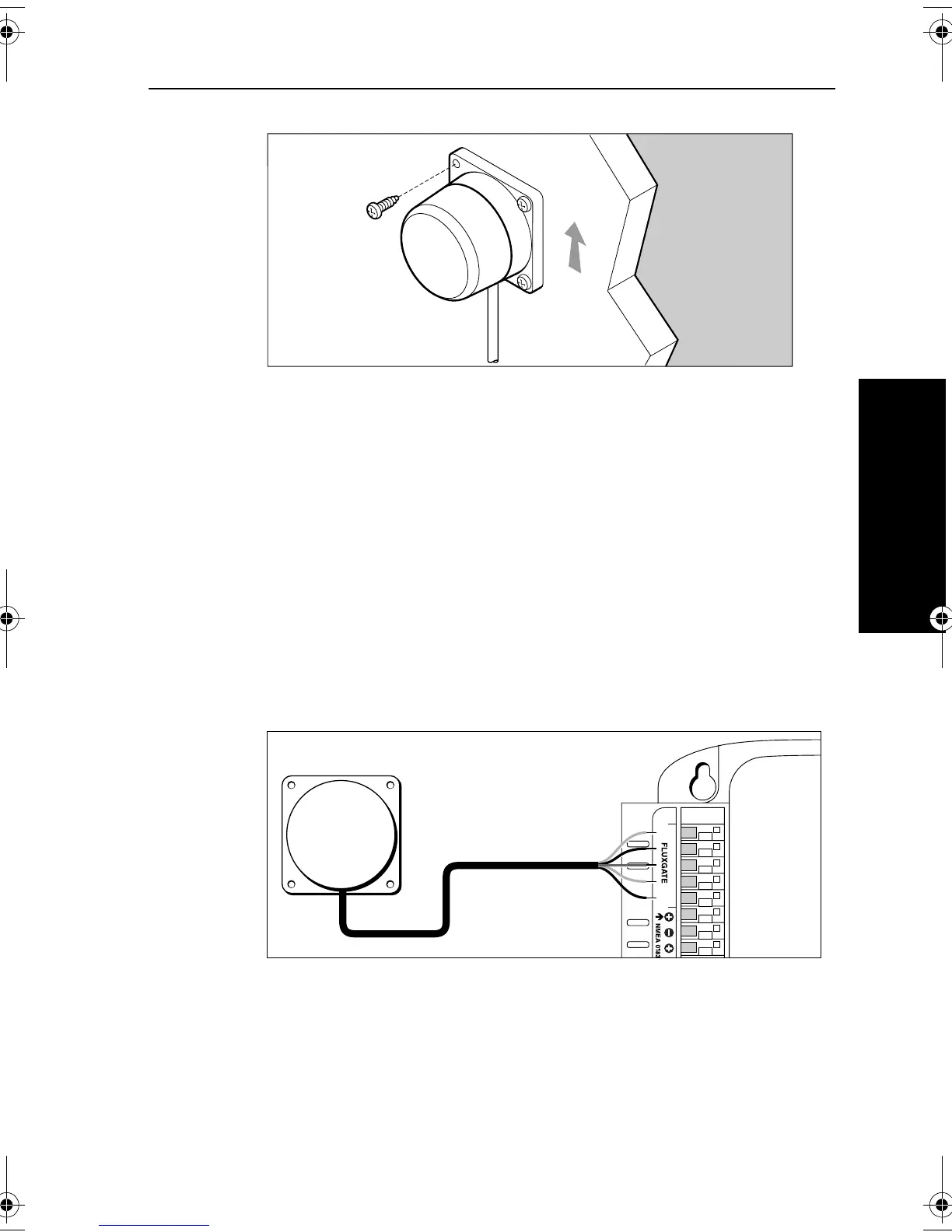

Figure 2-4: Fluxgate compass - orientation
Note: Stick the supplied warning label near to the fluxgate compass,
where it is clearly visible.
Connect the fluxgate compass to the GyroPlus 2 unit
1. The fluxgate compass is supplied with 8 m (26 ft) of cable. Route the
cable to the GyroPlus 2 unit, taking into account the EMC installation
guidelines (see page 7).
Note: Make sure you leave some spare cable so, if necessary, you can
re-position the compass to reduce deviation.
2. Connect the five cores of the cable to the
FLUXGATE
terminals on the
GyroPlus 2 unit (as shown).
3. Secure the compass cable to the loops on the GyroPlus 2 unit with one
of the supplied cable ties.
D
5
384
-1
Vertical
D5922-1
Screen
Blue
Red
Yellow
Green
Fluxgate compass
