Chapter 2: Installation 11
2 Installation
GyroPlus 2 unit - power supply
As described at the start of this Chapter, you can provide power to the
GyroPlus 2 unit either:
• via SeaTalk (12 V)
or
• direct from your boat’s distribution panel (12 V or 24 V): using
suitable cable protected with a 3 A in-line fuse or equivalent circuit
breaker
Note: If you connect power to both the SeaTalk terminals and the
POWER terminals, the GyroPlus 2 unit will power up when either or both
of these is switched on.

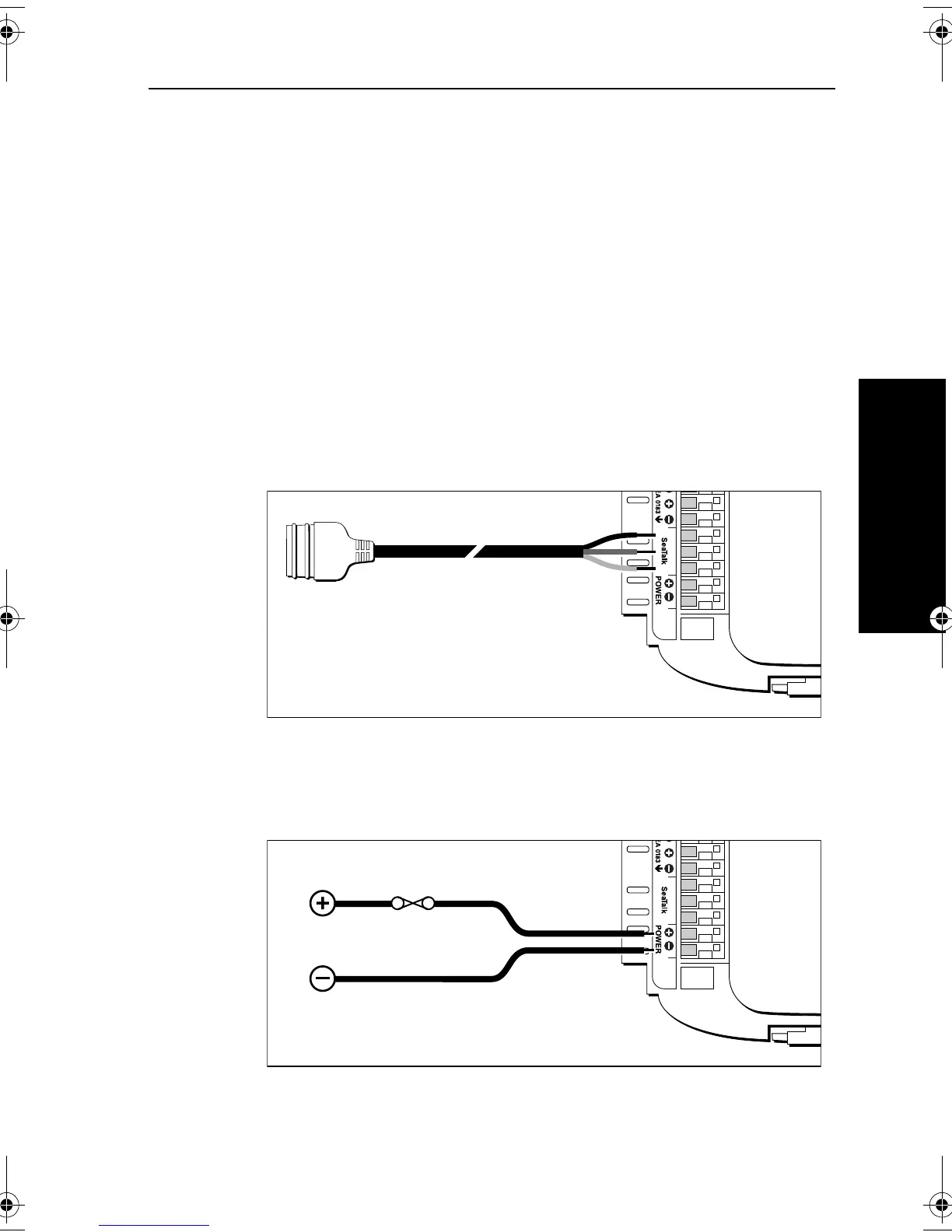

Power from SeaTalk
Note: Secure the SeaTalk cable to the loops on the GyroPlus 2 unit with
one of the supplied cable ties.
Power from distribution panel
Note: Secure the power cabling to the loops on the GyroPlus 2 unit with
one of the supplied cable ties.
D5951-1
Red
Screen
Yellow
Plug into SeaTalk instrument
or SeaTalk junction box
12 V or 24 V
power supply
3 A fuse or equivalent
circuit breaker
D5929-1
81198_1.book Page 11 Monday, February 11, 2002 8:36 AM
