2 Installation
Connecting to more than one Pathfinder Plus unit
You can use the NMEA out terminals on the GyroPlus 2 unit to supply
fast heading information to up to ten Pathfinder Plus units (depending on
the length of NMEA cable run).
To use MARPA and radar/chart overlay on all units you will need to
connect each Pathfinder Plus unit directly to the NMEA out
terminals on the GyroPlus 2 unit, so they receive fast heading data.

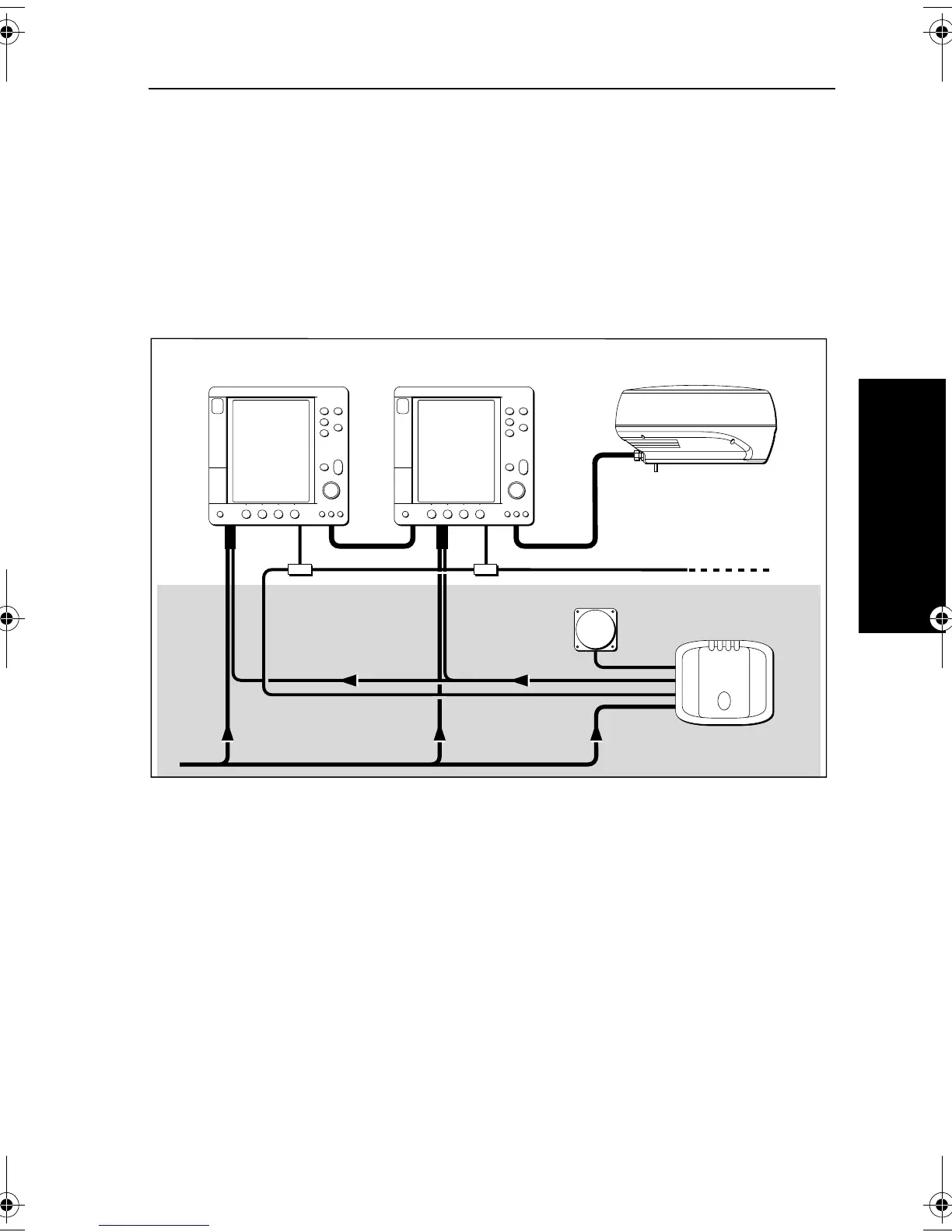

Connecting to more than one Pathfinder Plus display
Fluxgate Compass
GyroPlus 2 unit
Radar Scanner
SeaTalk SeaTalk
hsb
2
SeaTalk SeaTalk
NMEA out NMEA out
Power
12/24V
Power
12/24V
Power
12/24V
Pathfinder Plus Radar Pathfinder Plus Radar
D5930-1
