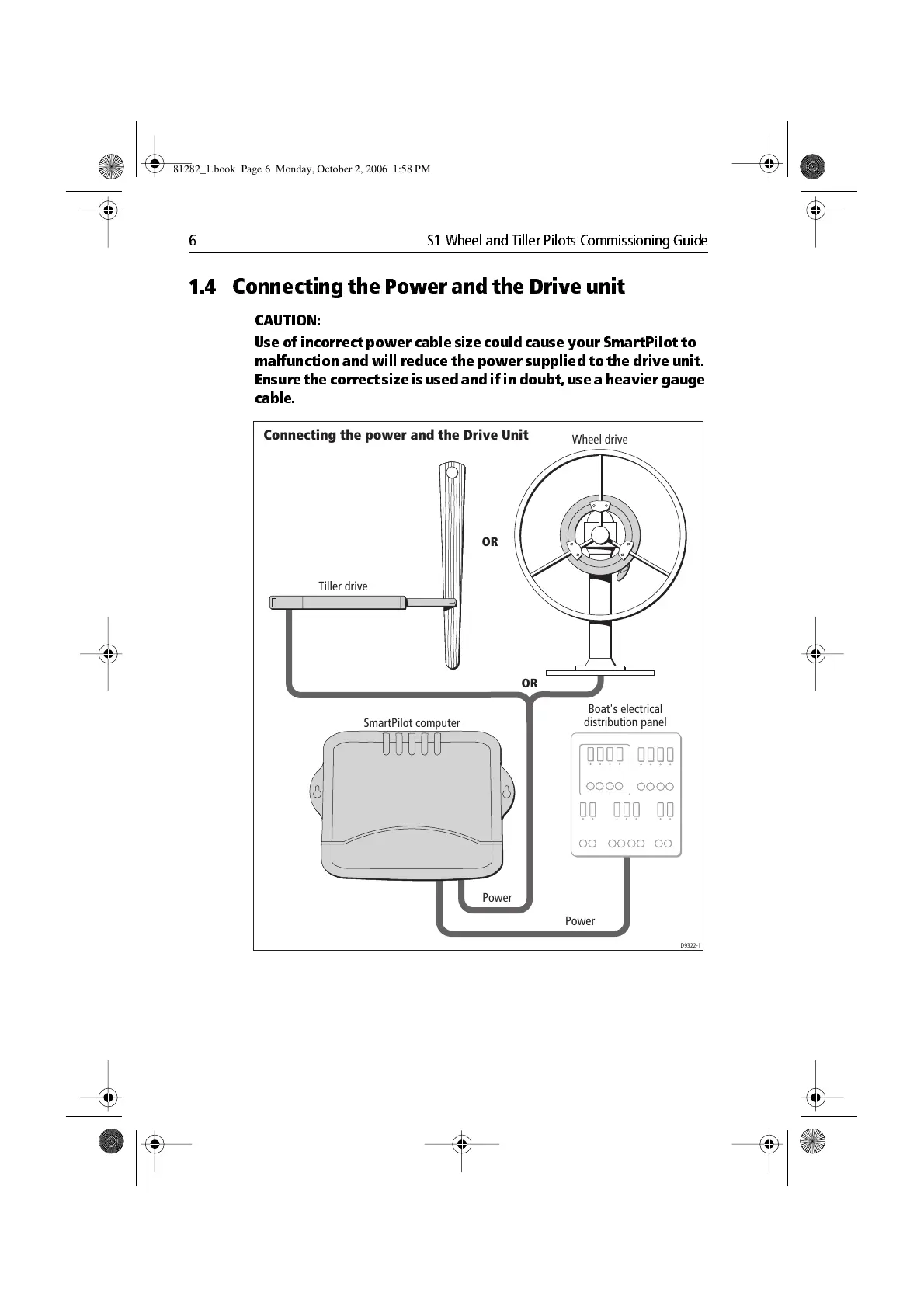

6 S1 Wheel and Tiller Pilots Commissioning Guide

1.4 Connecting the Power and the Drive unit

CAUTION:

Use of in correct power cable size could cause your SmartPilot to

malfu nction a nd will reduce the power supplied to the drive unit .

Ensur e the correct size is used and if in doubt, use a heavier gauge

cable.

Tiller drive

SmartPilot computer

Power

Wheel drive

D9322-1

Connecting the power and the Drive Unit

Boat's electrical

distribution panel

81282_1.book Page 6 Monday, October 2, 2006 1:58 PM
