Chapter 3: Installation
17
Connections to the instrument
You can connect your instrument:
• Directly to the depth transducer as a stand-alone master instrument.
When connected in this manner, the instrument must be connected
to a suitable power source using the 1 m (3 ft) power cable provided.
• As part of a SeaTalk system either as a repeater or, with a transducer
also connected as a system master. To connect to SeaTalk, you will
need an additional SeaTalk Interconnection Kit (Part No. E25028).
When connected in this manner, power can be provided from the
SeaTalk bus (e.g. from the autopilot).
You can also connect the instrument to both the depth transducer and
SeaTalk. When thus connected, the instrument will be the master depth
instrument for the SeaTalk system.

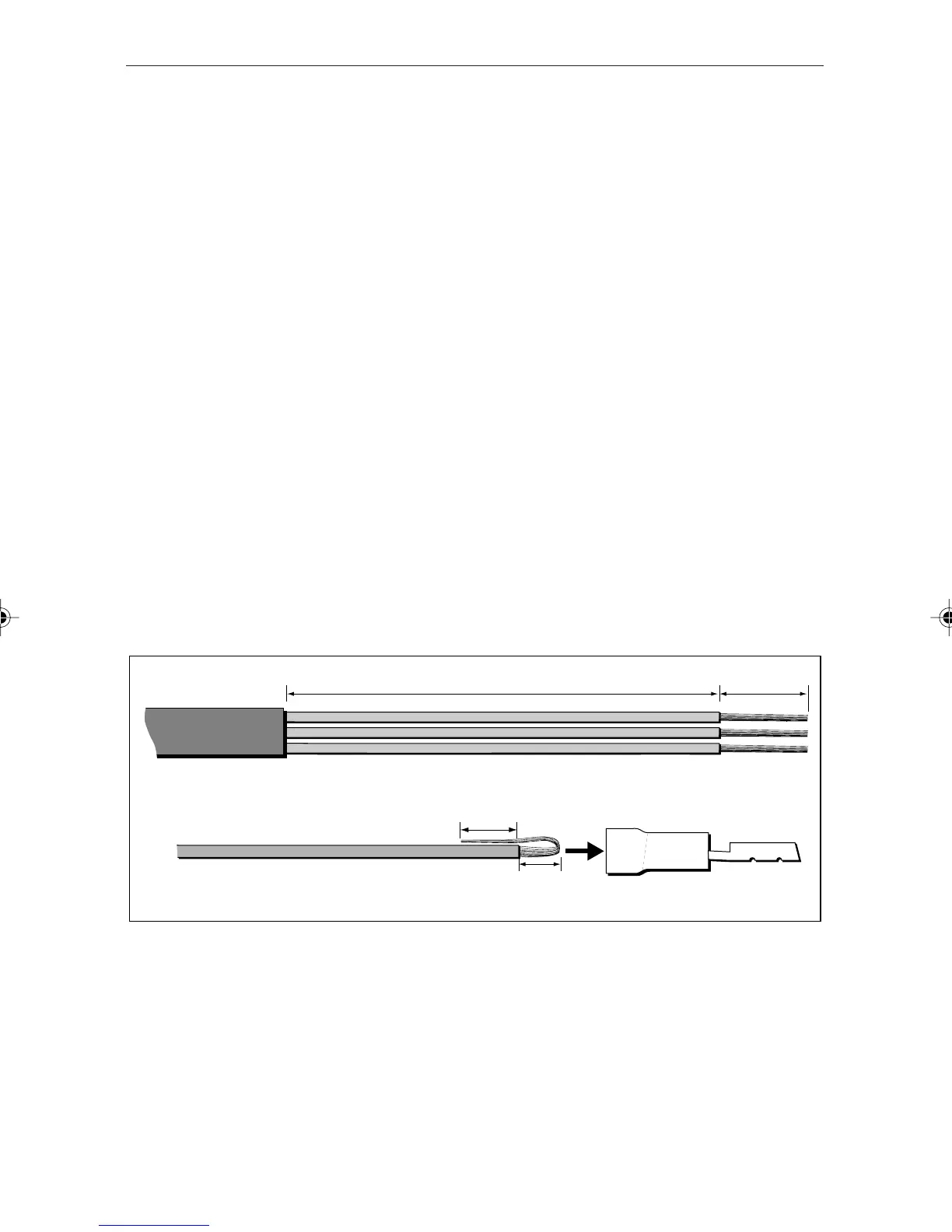

If it is necessary to fit spade connectors to the transducer cable, do so as
shown in the following illustration. Prepare the cable, as at (a), and fit
the spade connectors, as at (b). When fitting each spade connector,
ensure that wire strands do not extend beyond the rear of the spade
connector insulation.
D4467-3
3 mm
4 mm
10 mm
50 mm
Preparing wires for connection
(a)
(b)
158_2c03.p65 01/05/01, 13:5617
