Chapter 3: Installation
19
5 A circuit breaker
Red (+ve)
12 V dc supply
(e.g. course
computer
or battery)
Uninsulated wire
(screen) -ve
D4824-2

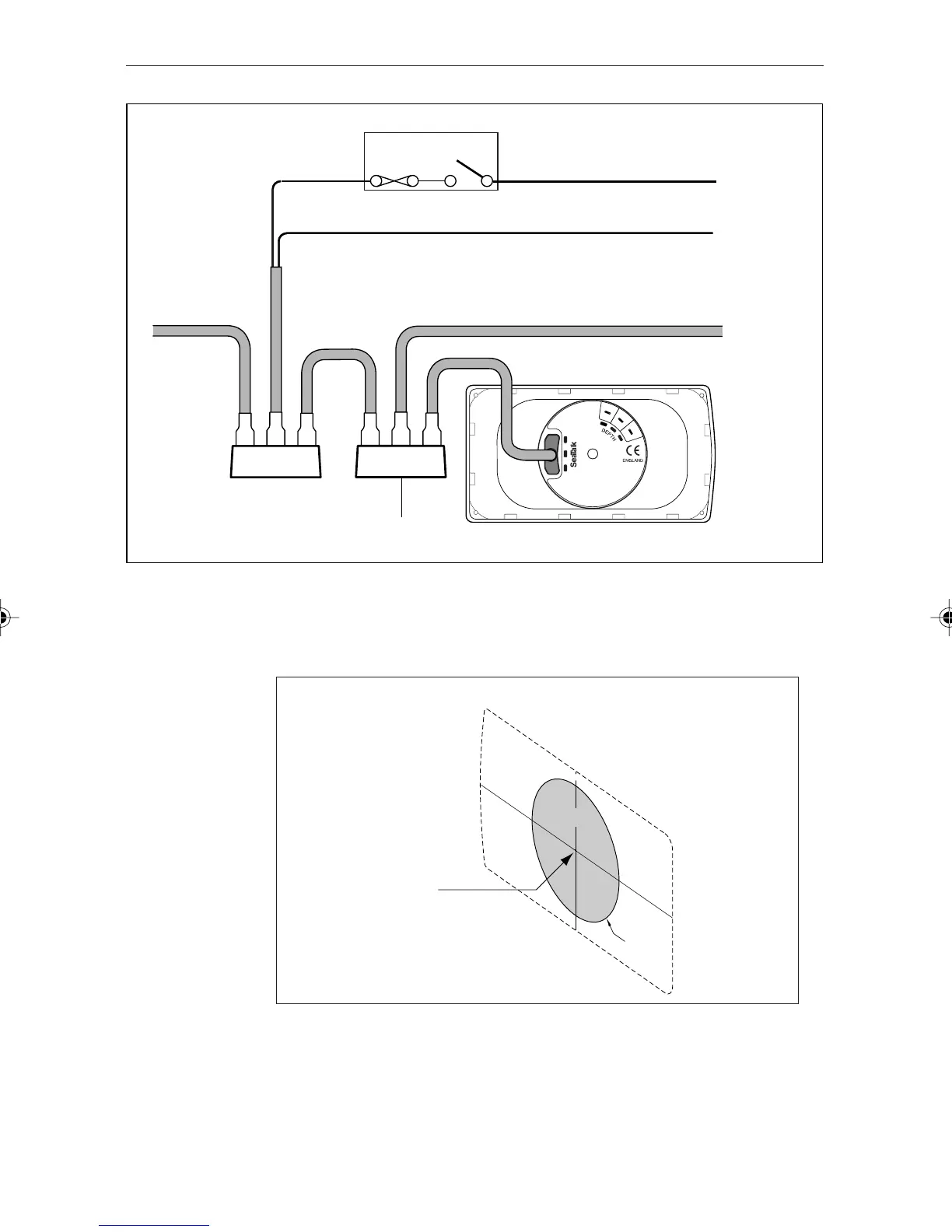

Typical SeaTalk connections
SeaTalk bus
SeaTalk bus
SeaTalk interface
kit
Power cable
Note:
A 5 A fuse can be used in place of
the circuit breaker, if preferred.
Fitting the instrument
Fit your ST40 instrument as shown in the following illustrations.
1
D4759-1
Cutting centre
TO
P
Cut out
shaded area only
Cut out hole
57 m
m
(2.25 in)
diam
eter
ST40 Instrum
ent Tem
plate
Remove template from handbook (immediately after index), apply to required location
and mark cutting centre.
158_2c03.p65 01/05/01, 13:5619
