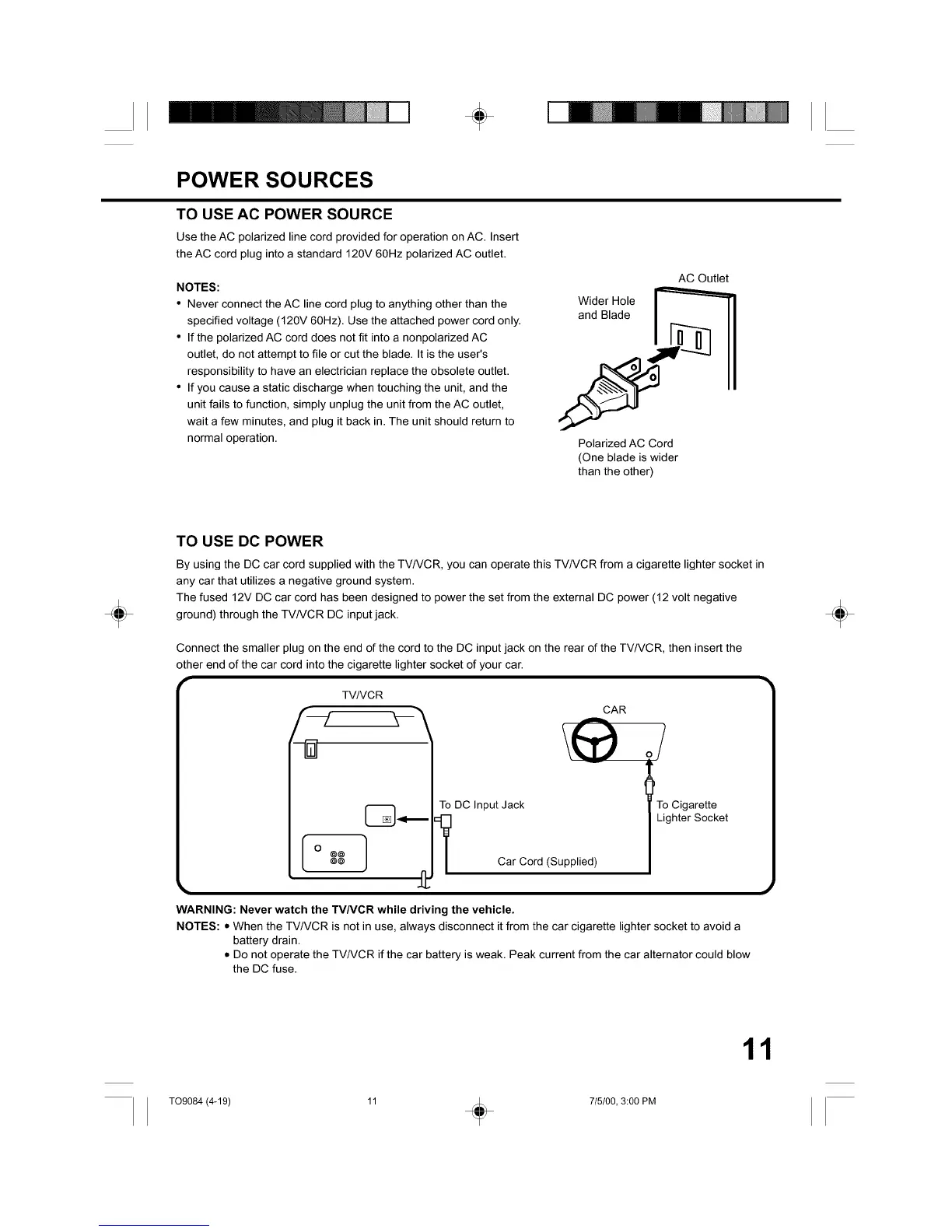

POWER SOURCES
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert
the AC cord plug into a standard 120V 60Hz polarized AC outlet.
NOTES:
• Never connect the AC line cord plug to anything other than the
specified voltage (120V 60Hz). Use the attached power cord only.
• If the polarized AC cord does not fit into a nonpolarized AC
outlet, do not attempt to file or cut the blade. It is the user's
responsibility to have an electrician replace the obsolete outlet.
• If you cause a static discharge when touching the unit, and the
unit fails to function, simply unplug the unit from the AC outlet,
wait a few minutes, and plug it back in. The unit should return to
normal operation.
AC Outlet
Wider Hole _
and Blade
Polarized AC Cord
(One blade is wider
than the other)
÷
TO USE DC POWER
By using the DC car cord supplied with the TV/VCR, you can operate this TV/VCR from a cigarette lighter socket in
any car that utilizes a negative ground system.
The fused 12V DC car cord has been designed to power the set from the external DC power (12 volt negative
ground) through the TV/VCR DC input jack.
Connect the smaller plug on the end of the cord to the DC input jack on the rear of the TV/VCR, then insert the
other end of the car cord into the cigarette lighter socket of your car.
TV/VCR
cAR
To DC Input Jack To Cigarette
Lighter Socket
Car Cord (Supplied)
WARNING: Never watch the TVNCR while driving the vehicle.
NOTES: • When the TV/VCR is not in use, always disconnect it from the car cigarette lighter socket to avoid a
battery drain.
• Do not operate the TV/VCR if the car battery is weak. Peak current from the car alternator could blow
the DC fuse.
÷
