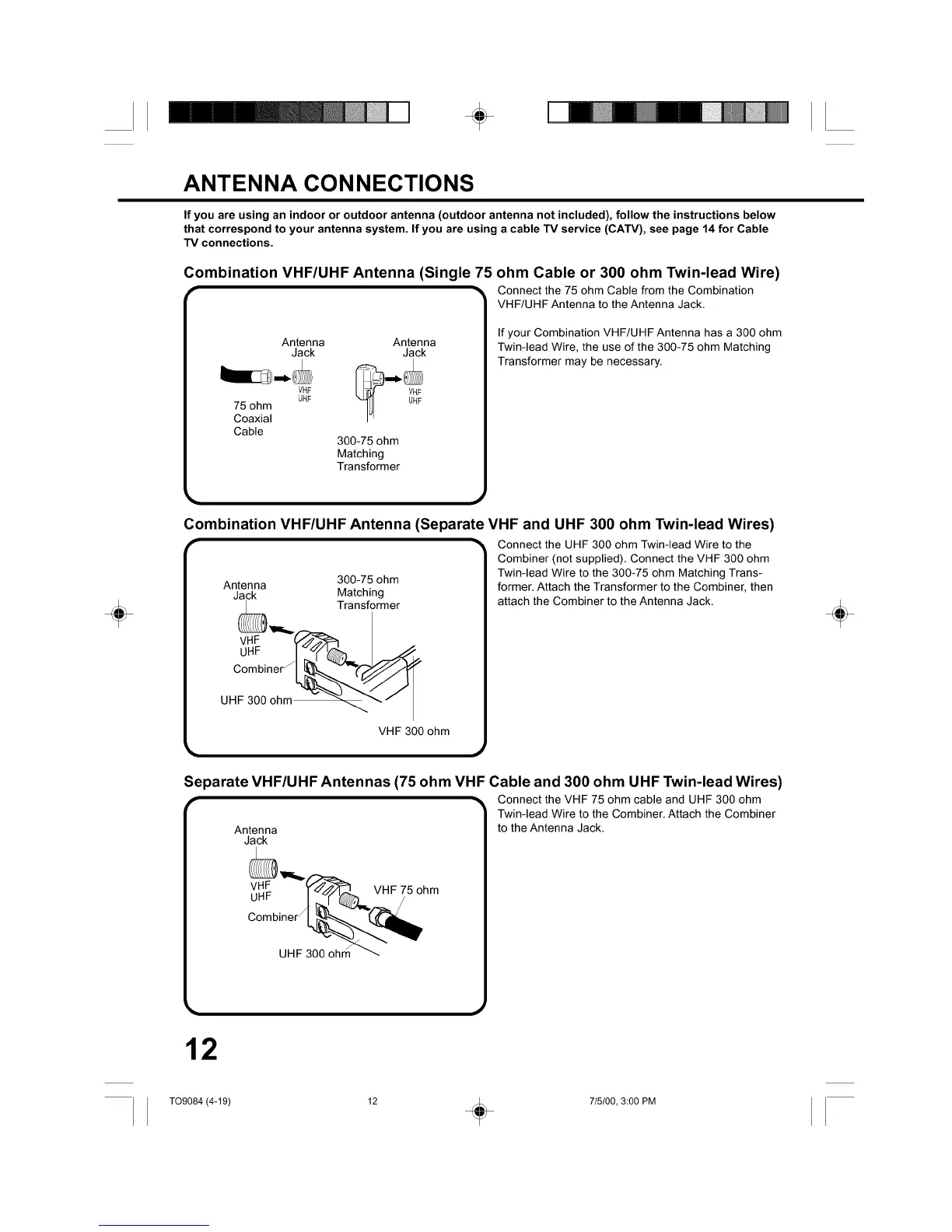

ANTENNA CONNECTIONS
If you are using an indoor or outdoor antenna (outdoor antenna not included), follow the instructions below
that correspond to your antenna system. If you are using a cable TV service (CATV), see page 14 for Cable
TV connections.
Combination VHF/UHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)
,- _, Connect the 75 ohm Cable from the Combination
Antenna Antenna
Jack Jack
VHF
UHF
75 ohm
Coaxial
Cable
300-75 ohm
Matching
Transformer
VHF/UHF Antenna to the Antenna Jack.
If your Combination VHF/UHF Antenna has a 300 ohm
Twin-lead Wire, the use of the 300-75 ohm Matching
Transformer may be necessary.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm Twin-lead Wires)
"- _' Connect the UHF 300 ohm Twin-lead Wire to the
Combiner (not supplied). Connect the VHF 300 ohm
Antenna 300-75 ohm Twin-lead Wire to the 300-75 ohm Matching Trans-
Jack Matching former. Attach the Transformer to the Combiner, then
attach the Combiner to the Antenna Jack.
vH_F Transformer
VHF 300 ohm
Separate VHF/UHF Antennas (75 ohm VHF Cable and 300 ohm UHF Twin-lead Wires)
,- -_ Connect the VHF 75 ohm cable and UHF 300 ohm
Twin-lead Wire to the Combiner. Attach the Combiner
Antenna to the Antenna Jack.
Jack
÷
12
