RD Instruments WorkHorse Sentinel - Figure 9. Visual Inspection before Deployment

WorkHorse Sentinel User's Guide
P/N 957-6163-00 (January 2001) page 25
TRANSDUCER HEAD
CHECK O-RINGS
AND MOUNTING
HARDWARE ARE
INSTALLED
ELECTRONICS AND
BATTERY PACKS
CHECK MEMORY CARD
AND BATTERIES ARE
INSTALLED
END-CAP
CHECK O-RINGS AND
MOUNTING HARDWARE
ARE INSTALLED
I/O CABLE CONNECTOR
INSTALL DUMMY PLUG
HOUSING
CHECK FOR
CRACKS
URETHANE TRANSDUCER FACES
REMOVE BARNACLES AND
CHECK FOR CRACKS
VISUALLY INSPECT THE ADCP

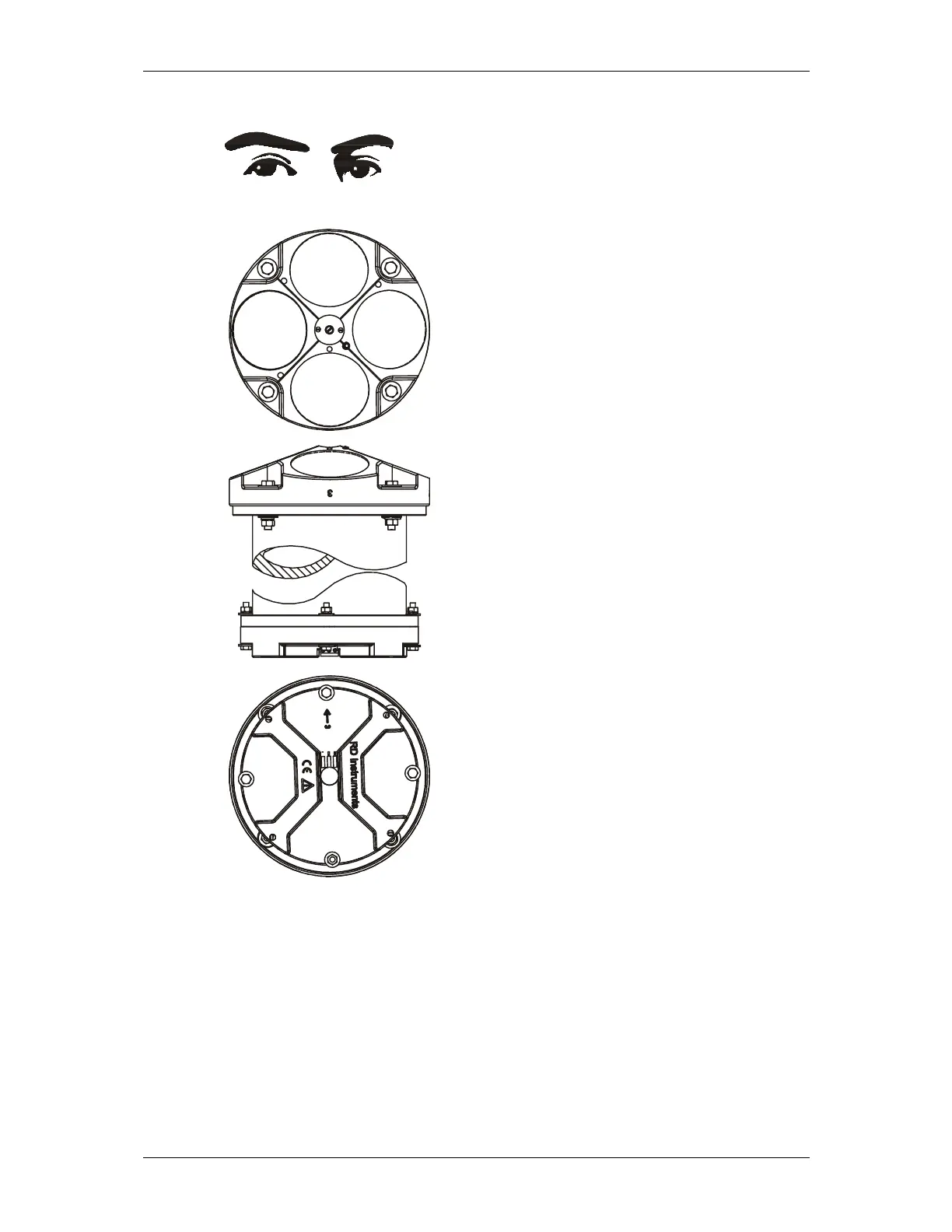

Figure 9. Visual Inspection before Deployment
