RDS PS 8000 User Manual

2 - Operation
2.3 Nozzle settings - the "Nozzle Wizard"
The "Nozzle Wizard" will assist you to choose the appropriate nozzles for a chosen
application rate and forward speed.
The "Nozzle Wizard" displays the following;
The Nozzle Wizard page shows you how a selected nozzle will perform in order to
achieve the Target Application Rate at a programmed Target Speed.
The centre of the "bow tie" display indicates the target speed for optimum nozzle
performance. The operating range of the nozzle is based on the target speed.
There are 8 pre-programmed, ISOstandard nozzle types A to H ;
Type Colour
A Orange
B Green
C Yellow
D Blue
E Red
F Brown
G Grey
H White

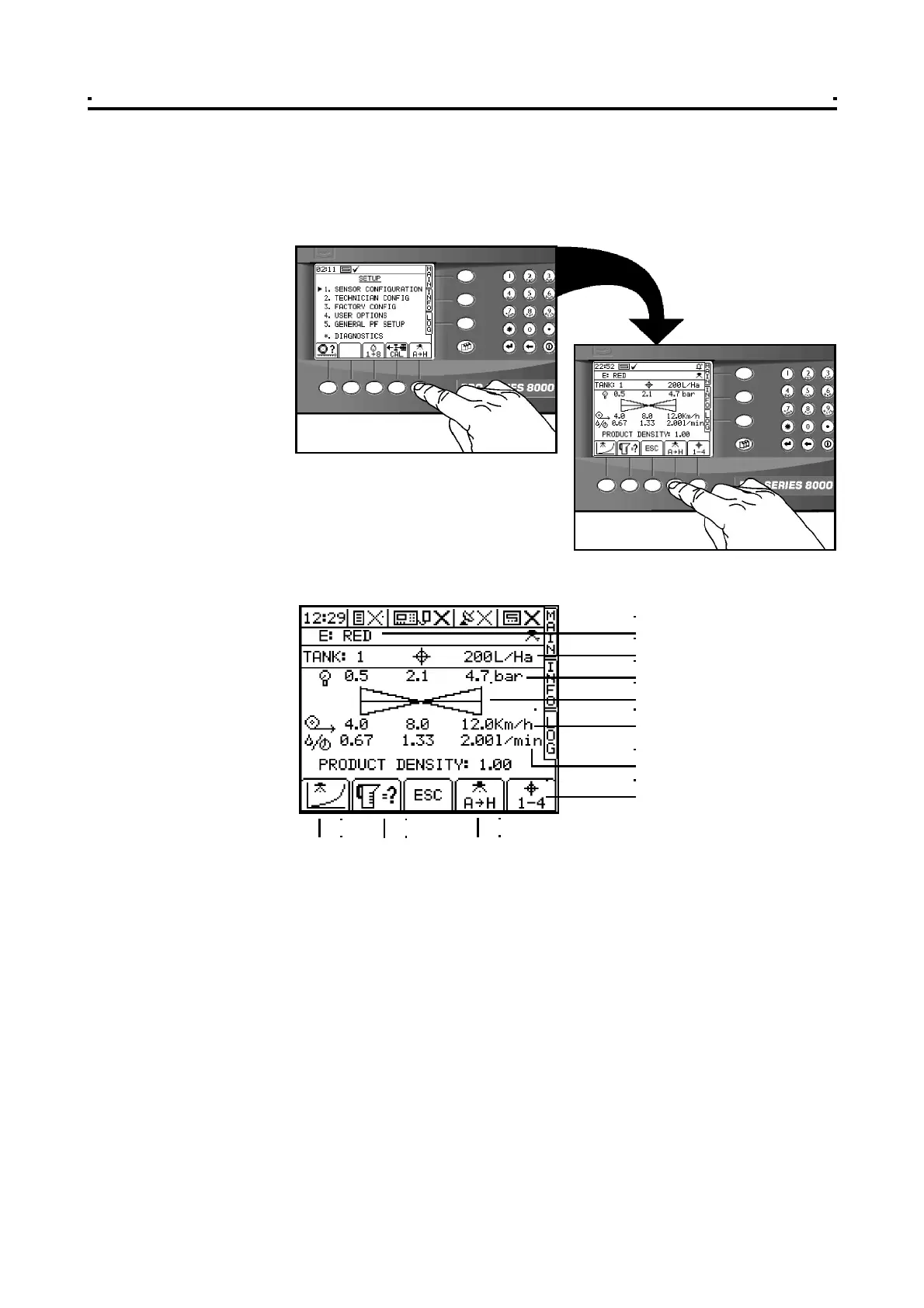

Figure 10
Selecting the "Nozzle
Wizard"
Target Rate
Nozzle Type
Pressure Range
Nozzle operating range
Speed Range
Nozzle Flow Rate
Select Tank
Figure 11
The "Nozzle Wizard"
Edit Nozzle
Data
Jug Test
Wizard
Select
Nozzle type
14
