Reach Alpha Integration Manual | V006
+61 (2) 9519 7651 | info@reachrobotics.com www.reachrobotics.com
5. Interfacing and integration
This section covers the mechanical and electrical requirements for integrating the Reach Alpha into a full system.
Please contact Support if you require 3D CAD files or any additional information to assist with integration.
5.1. Mechanical
All Alpha manipulators, grabbers and actuators have the same mounting flange which can be attached to a
mounting kit for easy installation. The mounting kit is designed to absorb moderate shock to help protect the Alpha
from external impact.

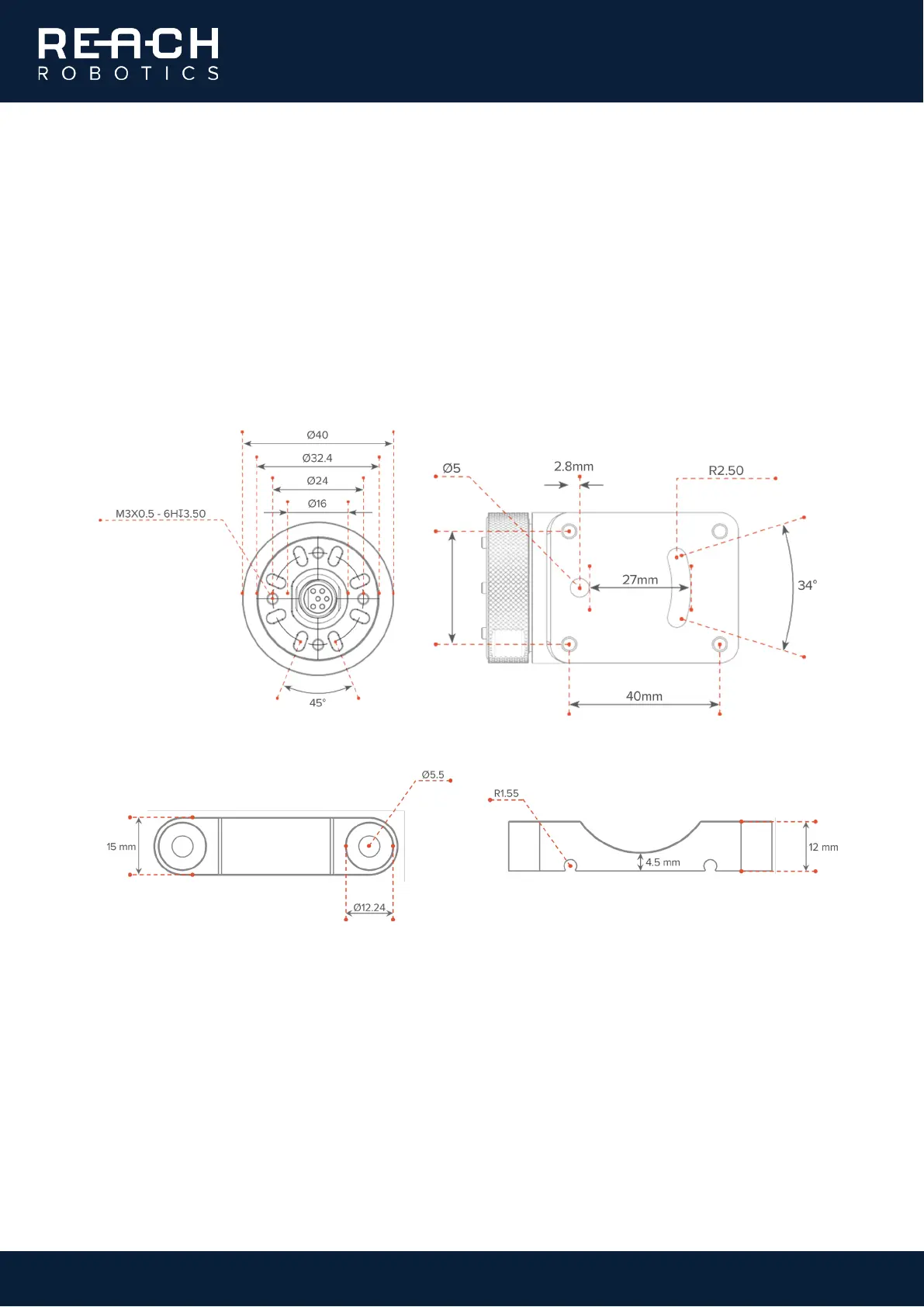

Alpha base mounting flange Alpha mounting kit, base part
Alpha mounting kit, supporting part
