Reach PoE5 Tester Manual 1.8 03/25/2021 Page 13
5.2. Power input

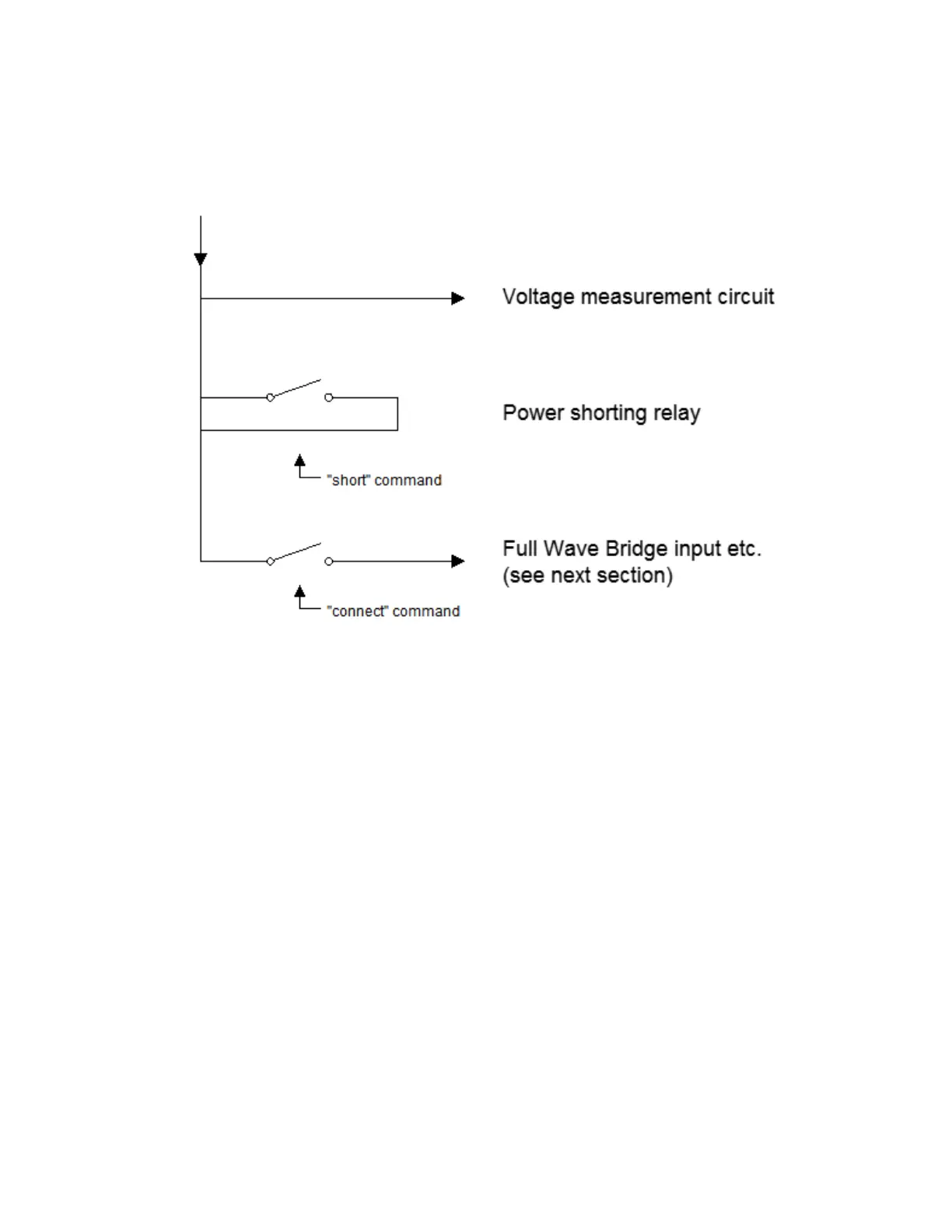

Power Input (above); two instances, one for each power pair:
Each UUT port can have either power pair measured (reported voltage can be positive or
negative depending on polarity), shorted, or connected to the Full Wave Bridge and
subsequent load circuits. The power pairs can be measured regardless of the state of the
connect or short relay settings.
WARNING – Sustained currents above 1 amp through the shorting relay may damage
the connector, PCB, relay, etc.
