Record Power BS12 - Getting to Know Your Bandsaw; Specifications

Original Instruction Manual | BS12 12” Bandsaw | Version 2.0 | February 2012

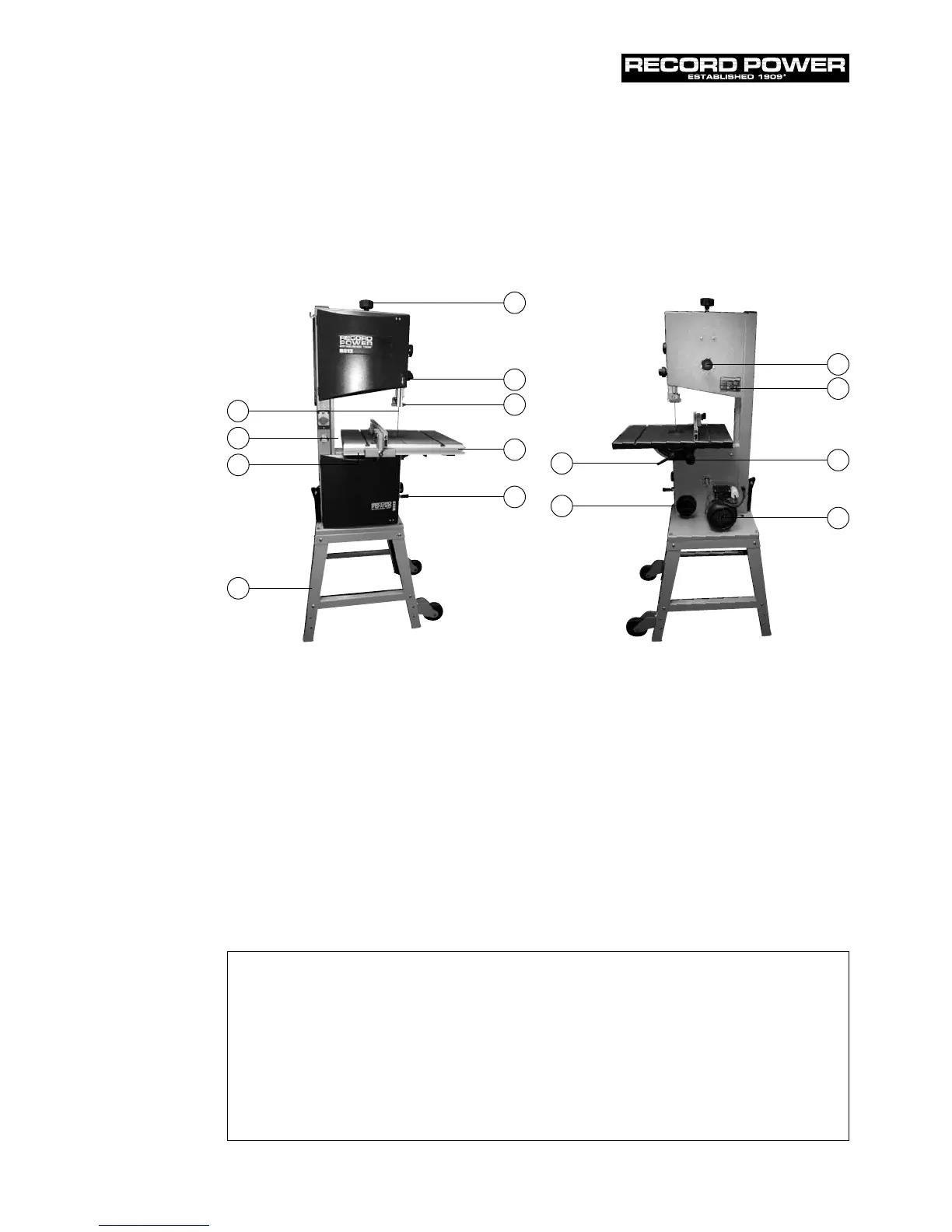

4. Getting to Know Your Bandsaw
A Blade Tensioning Knob
B Rise & Fall Knob
C Blade
D Upper Blade Guide
E Table
F Rip Fence
G Rip Fence Rail
H Table Tilt Lock Handle
I Stand & Wheel Kit
J Belt Tension &
Speed Change Handle
K Blade Tracking Knob
L Table Tilting Knob
M Motor Rating Plate
N 100mm Dust Extraction Port
O Motor
A
B
C
D
E
F
G
J
I
H
N
K
M
L
O
Blade length: 2240mm
Blade width: 6mm - 15mm
Max depth of cut: 175mm
Throat depth: 305mm
Table size: 480x400mm
Max width blade to rip fence: 185mm
Table height (from floor without stand): 478mm
Table height (from floor with stand): 1086mm
Extraction port: 100mm
Motor power (output): 750W
Weight: 75kg
Footprint (with stand): 791 x 874mm
Table size: 548 x 400mm
Dimensions (with stand): H1680 x W791 x D874mm
