Installation — Mounting | 19
MOUNTING CLEARANCES
HOT SURFACES: The heatsink can reach high temperatures during operation. For this reason, the
installer is responsible to leave at least 10 mm (0.4") of clearance down the sides and 40 mm (1.6") at
each end of the Main Unit to allow for air‑ow.

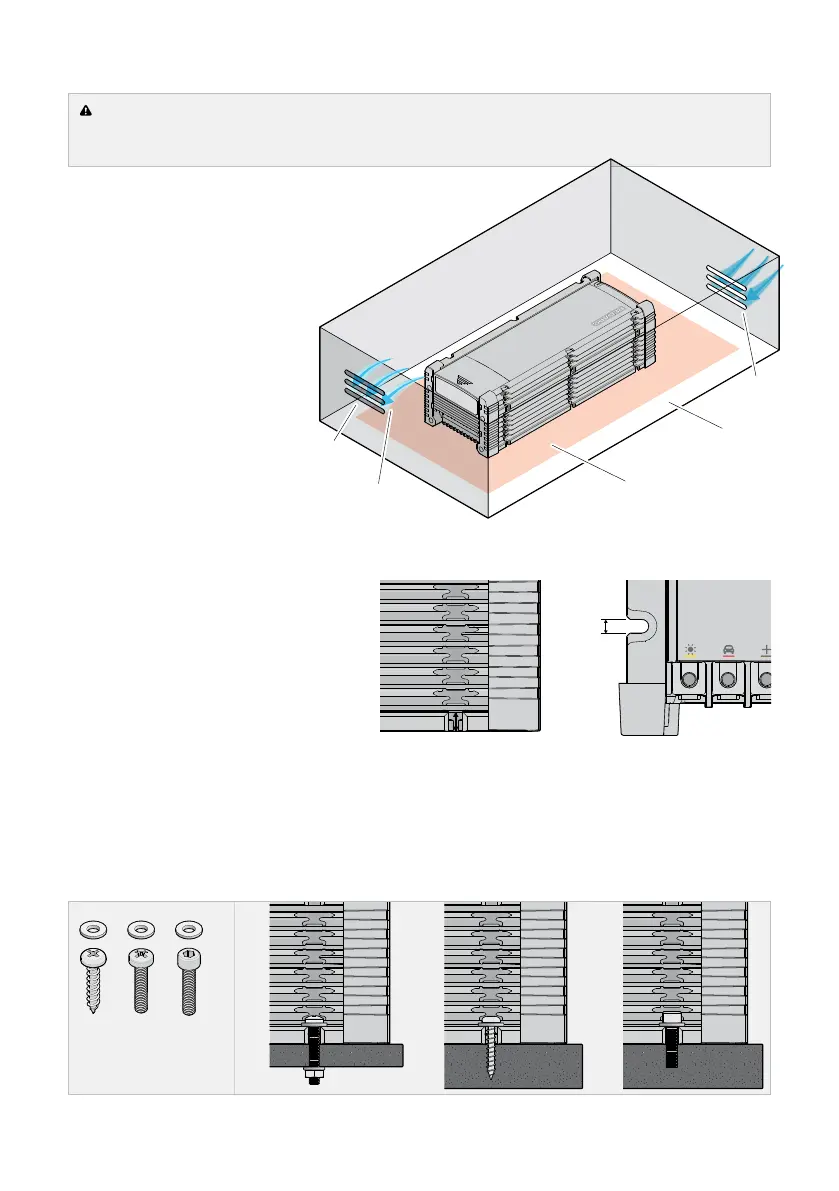

MOUNTING IN ENCLOSED SPACES
If installing the Main Unit in an enclosed space
leave at least 100 mm (4") of clearance on
all sides and above the Main Unit.
Ensure there is adequate venting.
Two vents should ideally be positioned
at opposite ends of the enclosure
for cross‑ow of air.
Ensure there is sufcient space
around the Manager to access
terminals when required.
MOUNTING HARDWARE
When mounting the Main Unit, all six
Mounting Points must be used.
Ensure the selected fasteners are suitable
for the mounting surface and there is
clearance‑t through the Mounting Points
on the Main Unit.
6.5 mm
(1/4")
9 mm
REDARC recommends using six M6 (1/4") bolts/screws with washers. If using countersunk fasteners, apply
countersunk washers to avoid damaging the Mounting Points.
If mounting the Main Unit on a sheet metal panel, it is recommended to apply a load spreading material
(i.e. mudguard washers) on the opposite side of the panel.
DO NOT mount using adhesives or adhesive tape.
Recommended
M6 Fasteners
(not supplied)
space
Air cross-ow
100 mm (4")
Clearance
Vent
Vent
