20 | Installation — Mounting

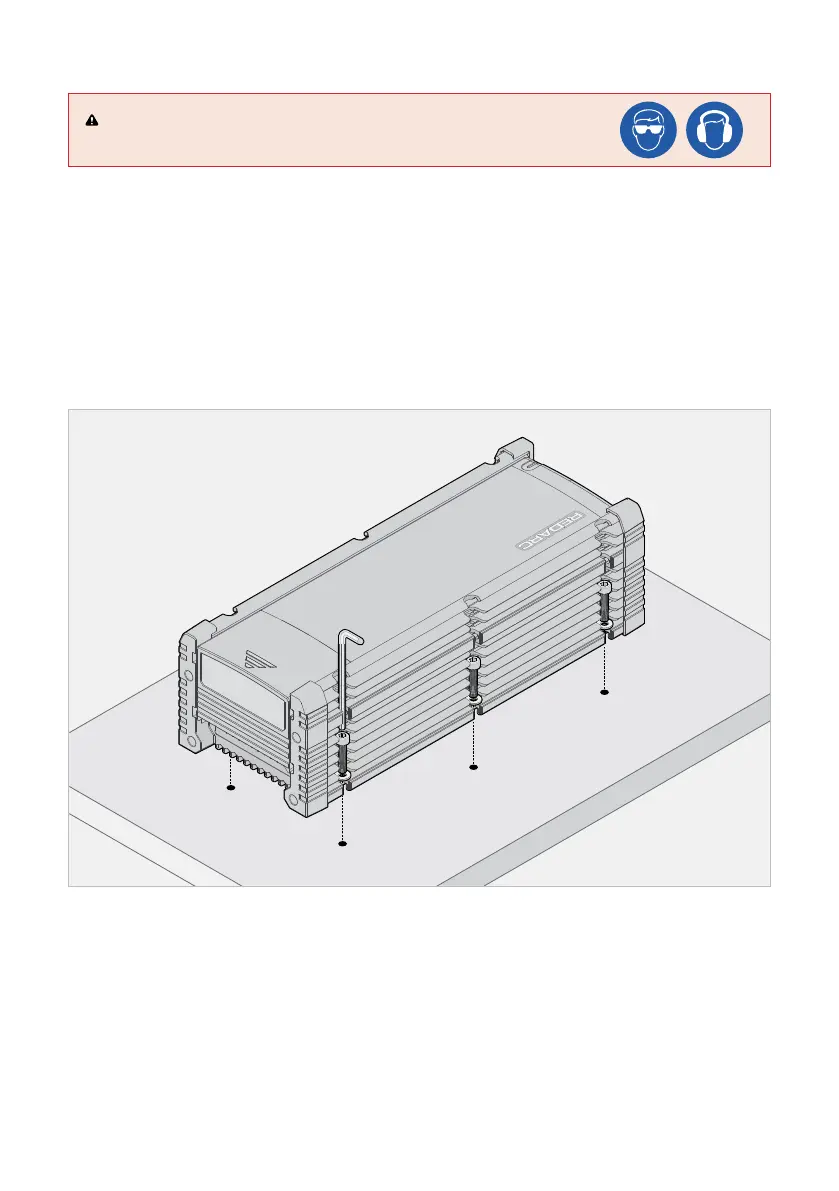

MOUNTING STEPS
WARNING: Use suitable Personal Protective Equipment (PPE) when operating
power tools.
1. Conrm clearances around the Main Unit are adequate.
2. If clearance/pilot holes need to be drilled, place the Main Unit in its nal position and mark the centre of
each Mounting Point or use the template provided on the retail packaging.
3. Remove the Main Unit and drill the holes. De‑burr the drilled holes and remove any swarf. Touch up any
bare metal surfaces that have been exposed with a rust‑inhibitor.
4. Fasten the Main Unit in place with appropriate fasteners, applying a washer in between the fastener and
the Mounting Point. The Main Unit should be held rmly against the mounting surface.
5. Check that there are no gaps under any of the mounting points. If gaps still exist, install spacers to ll the
gaps — do not over tighten fasteners to close gaps.
