WIRING TYPICAL LOADS
For connector pinout information, see 'Output Cable Connectors (C/D) Pinouts'(page48).
Loads/devices will typically be connected in one of the following ways:
Hard-wired directly to the Output Loom – this is ideal for permanently installed devices such
as lights in a caravan/travel trailer.
Plugged into an accessory socket that is mounted to the vehicle – this is ideal for
portable devices as they can then be quickly unplugged for moving.
1. Connect the wires from the device (the load) to a numbered pair of Orange and Black wires on
the Output Wiring Loom (at C or D).
2. Insulate the ends of individual unused wires to prevent them from shorting. DO NOT heatshrink/
tape multiple unused wires together as a single bundle.
3. Configure via the REDARC Configurator App.
Wiring Typical Loads

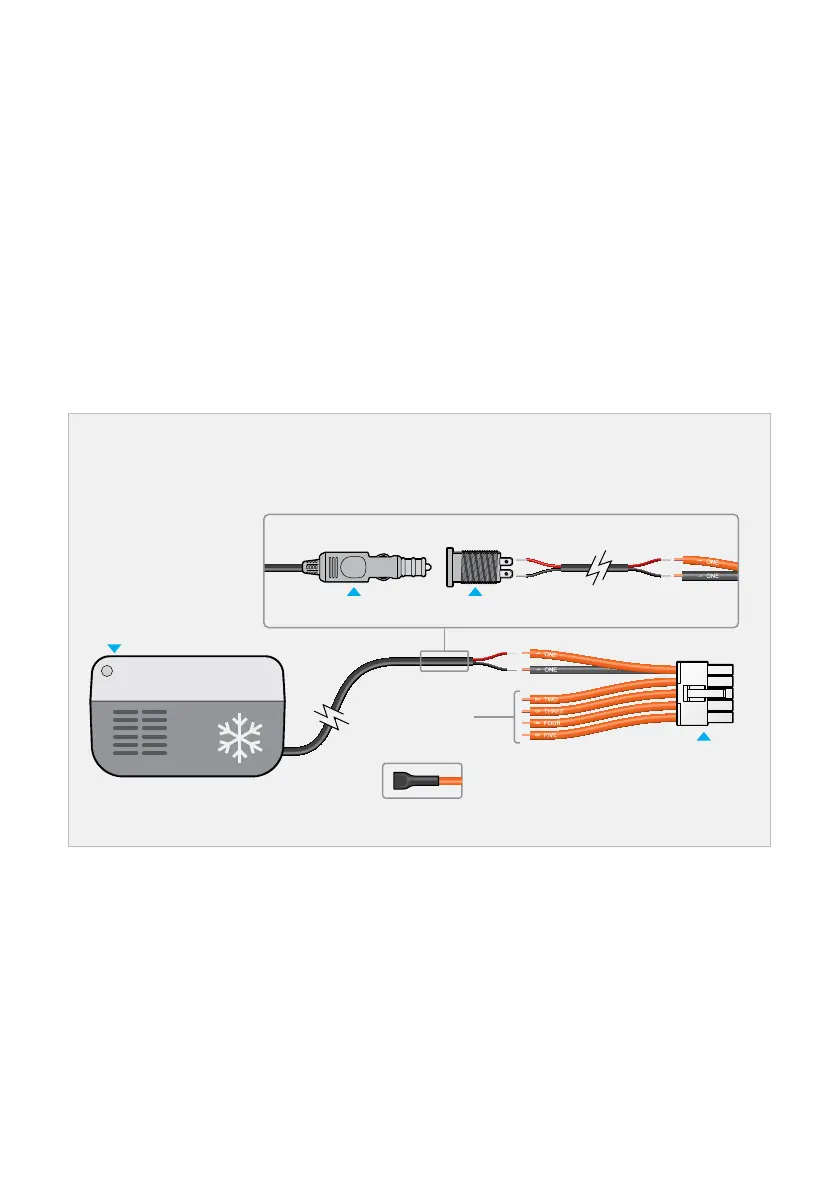

The example shows wiring of a fridge, with optional wiring for loads that have a connector.
Output Loom
Insulate ends of
individual unused
wires
Load (e.g. fridge)
Connector Socket
Wiring an optional accessory socket
