ABOUT TERMINATING RESISTORS
R-Bus and CANBus (Controller Area Network) systems connect devices in a continuous
daisy-chain network. Terminating Resistors must be present at each end of the daisy-chain to
complete the CANBus system.

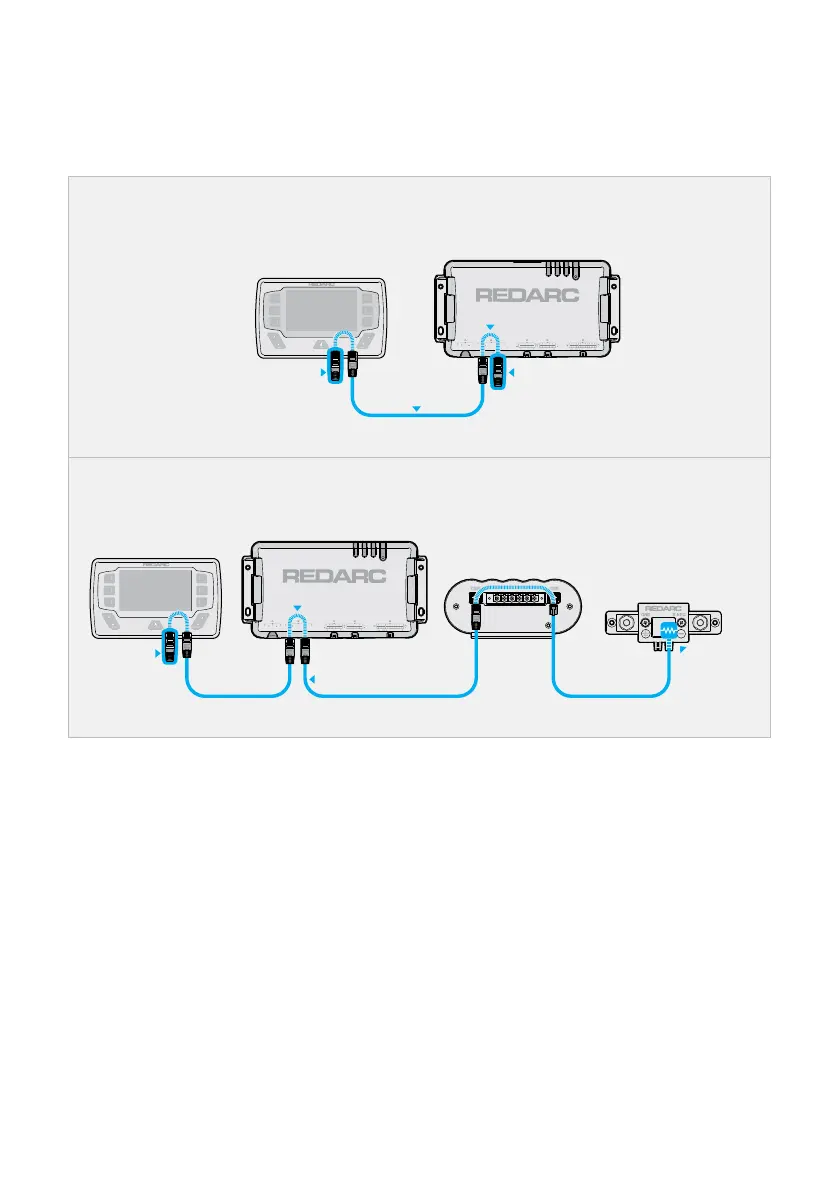

Basic Installation
Display
TVMS Rogue
CAN Bus ‘Spine’
Terminating Resistor #1 Terminating Resistor #2
RJ45 (CAN Bus)
Cable
BMS + Battery Sensor Installation
Display
TVMS Rogue
Manager
Battery Sensor
RJ45 (CAN Bus) Cables
CAN Bus ‘Spine’
Terminating
Resistor
(Inbuilt)
Terminating
Resistor
