Introduction
8 O wner’s Guide – Redback Smart Hybrid System – v 3.8
System description

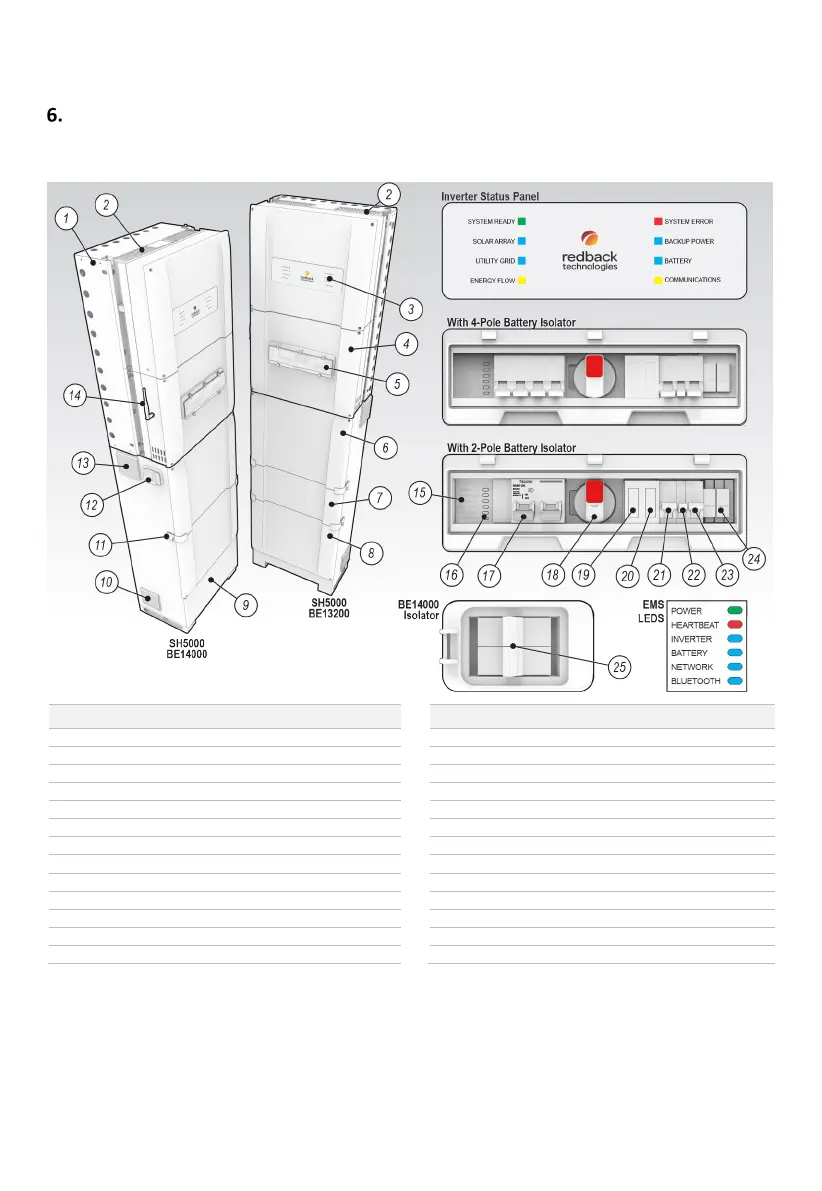

6.1 Major components and dimensions
# PART NAME # PART NAME
1.
Wall Mounting Frame
14.
Wi-Fi antenna
2.
Inverter Heatsink Fins
15.
Energy Management System (EMS)
3.
Inverter Status Panel
16.
EMS Status LEDs
4.
Inverter BoS Front Cover
17.
Battery System DC Isolator (2P or 4P)
5.
BoS Switchgear Hatch
18.
PV Array DC Isolator
6.
Battery Enclosure Upper Front Cover
19.
Backup Power Meter
7.
Enclosure Middle Front Cover*
20.
Grid Interactive Power Meter
8.
Enclosure Lower Front Cover
21.
Backup AC Isolator
9.
Enclosure Kick Panel**
22.
Bypass Switch
10.
Enclosure Air Inlets (Filter cover)
23.
Inverter AC Isolator
11.
Enclosure Padlock Hoop
24.
Relays #1 and #2
12.
Battery Enclosure Isolator Cover**
25.
Battery Enclosure Isolator Switch*
13.
Enclosure Extractor Fans (Filter cover)
*Fitted to BE13200 only **Fitted to BE14000 only.
