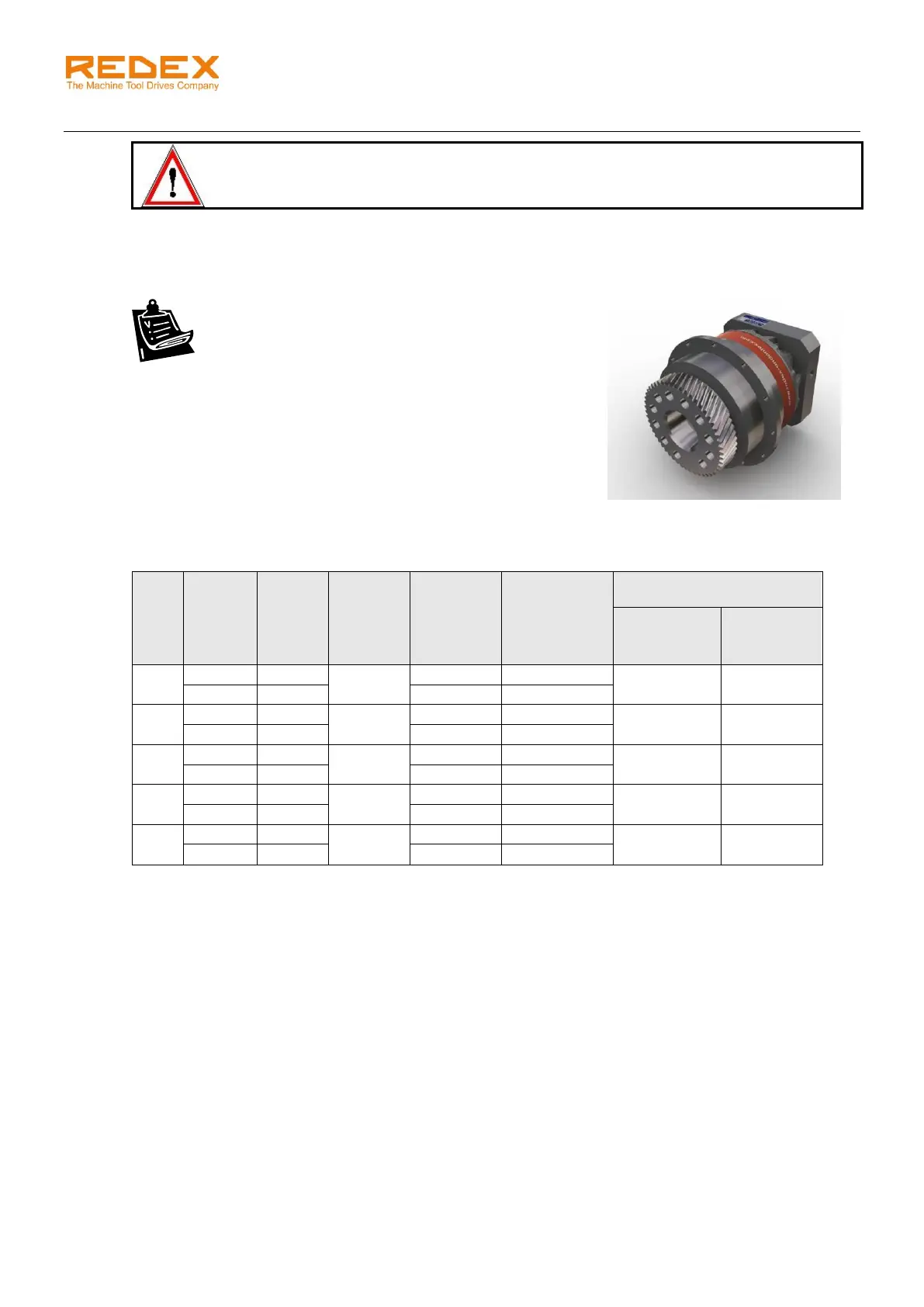

5 OUTPUT PINION (OP) MOUNTING
WARNING!
The rack and the output gears must be lubricated before running the SRP.
In case of fixing an output pinion (OP) to the SRP output flange,
we recommend respecting the following procedure:
1. Place the output pinion on the output flange pilot diameter.
2. Insert the fixing screws without tightening them.
3. Control the pinion run out by means of pins. The admissible
run out values are written in the following table. For other
pinion types, please consult us.
4. Adjust the pinion centering if necessary.
5. Tighten the fixing screws at the adequate tightening torque.
SIZE
Pinion
number
of teeth
Module
(mm)
Pitch
diameter
(mm)
Maximum
Run Out
(Quality
6)
(µm)
Pin diameter
for run out
control
(mm)
OP mounting on SRP
Fixing
screws type
Tightening
torque
(Nm)
0
45
2
95,49
21
3,5
M6
17
36
2,5
21
4,5
1
42
2,5
111,41
21
4,5
M8
41
35
3
21
5
2
52
3
165,52
28
5
M10
83
39
4
29
7
3
45
4
190,99
29
7
M16
355
36
5
29
9
4
42
5
222,82
29
9
M20
690
35
6
29
10
For sizes 5 and 6, the pinion is delivered by Redex mounted and adjusted on the SRP. The customer
shall not adjust or change any parameter.
