REDEX SRP0 - Oil Draining

SRP User manual
Ref.: RX182/006
Version 01/2017 - English
This document must not be reproduced nor information therein disclosed without our authorization
Page 5 / 28
SRP.R: right angle
configuration
Approximated volume of oil (cm3) depending of
mounting position
B5/B5
V1/B5
V3/B5
B5/V1
B5/V3
SRP0.R
1 stage
330
400
600
330
330
SRP1.R
1 stage
640
800
1200
650
650
2 stages
370
550
680
380
380
SRP2.R
1 stage
1500
2100
2200
1480
1480
2 stages
900
1500
1500
880
880
SRP3.R
2 stages
1650
2700
2900
1600
1600
SRP4.R
2 stages
2600
4100
4700
2600
2600
SRP5.R
2 stages
5600
8500
1400
5400
5400
SRP6.R
2 stages
15200
18200
Consult us
15200
15200
3.3 Oil draining
SRP units are delivered with oil and lubricated for a life time of 10000 hours.
In order to remove all residual particles in oil, do not hesitate to:
- Run the unit before draining in order to reduce the viscosity of the old lubricant
- “Wash” the unit with fresh oil before refilling.
1. Unscrew the fill-in plug situated at the top of the unit to allow air entering the gearbox.
2. Unscrew the lowest plugs and wait until no more oil flows out from the unit.
NOTE:
Drained oil is a special industrial waste and should be handled according to current laws.

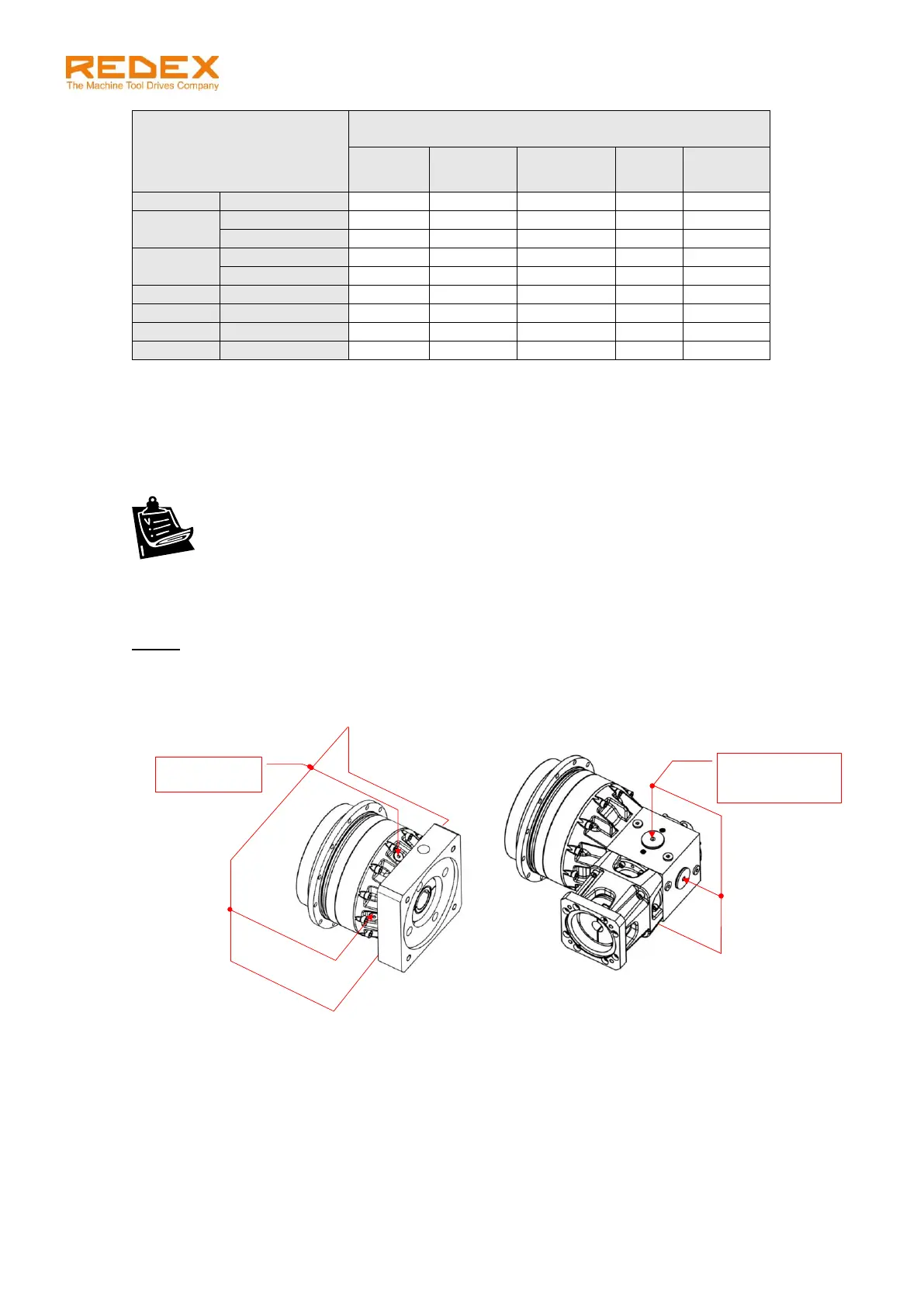

Location of oil plugs and sight glass:
SRP.M
SRP.R
The following drawings show the exact location of the lubrication holes (for size 5 and 6, consult us):
4 symmetrical
lubrication plugs
3 symmetrical
lubrication plugs
+ 1 sight glass
