7.2 SRP parallelism and perpendicularity tolerances

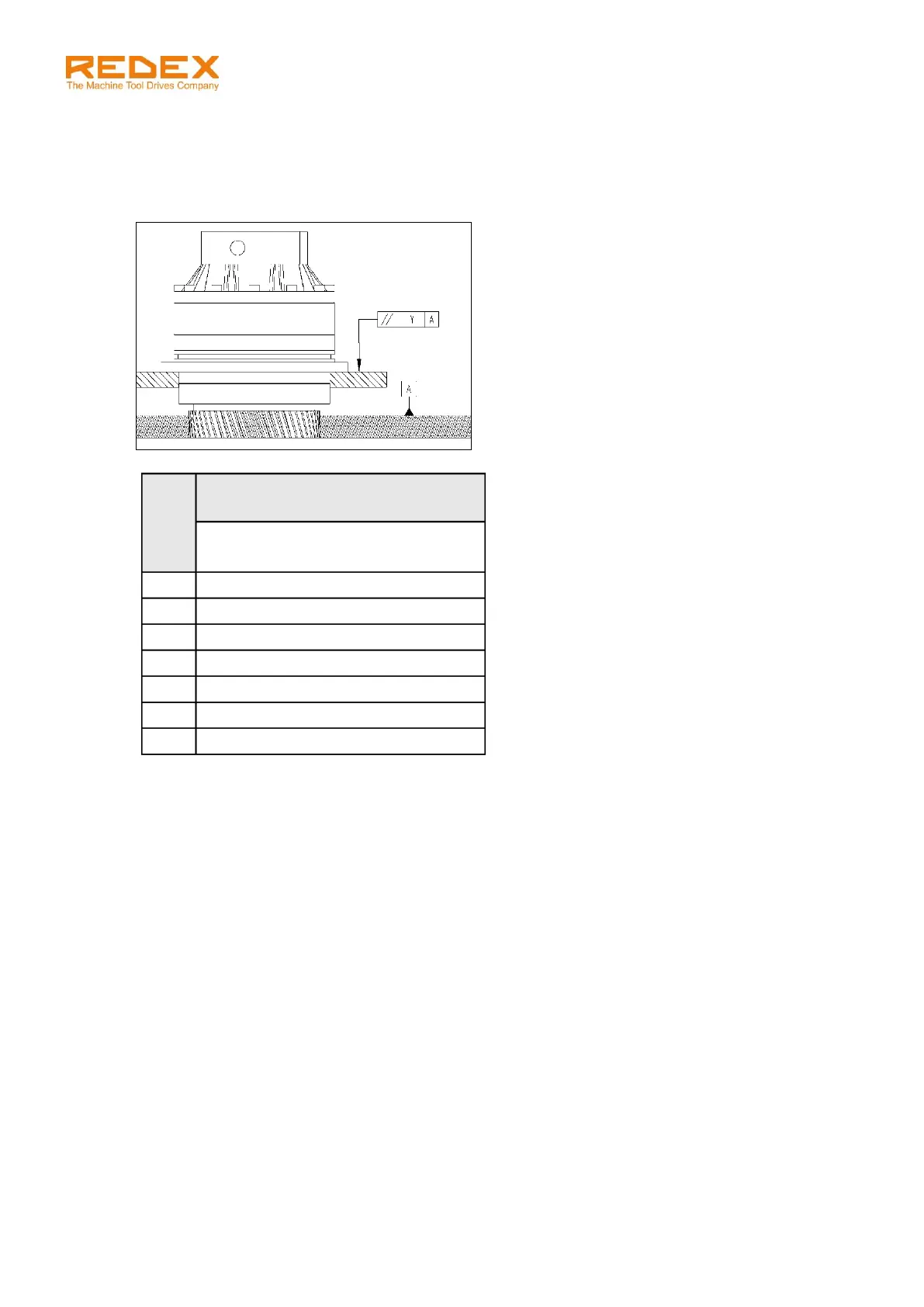

Parallelism between the SRP flange and the rack axis
Size
Maximum allowed mounting
tolerances
y:
parallelism of flange fixing face with
rack main axis
0
0,02 mm
1
0,02 mm
2
0,02 mm
3
0,02 mm
4
0,025 mm
5
0,030 mm
6
0,030 mm
