Reer JANUS - RECEIVER SIGNALS

8540573 • 16/09/2016 • Rev.20 19
LIGHT SIGNALS
EMITTER SIGNALS
At power-on, all the leds are ON for a period of 5 seconds.
Subsequently, the leds display functioning condition.

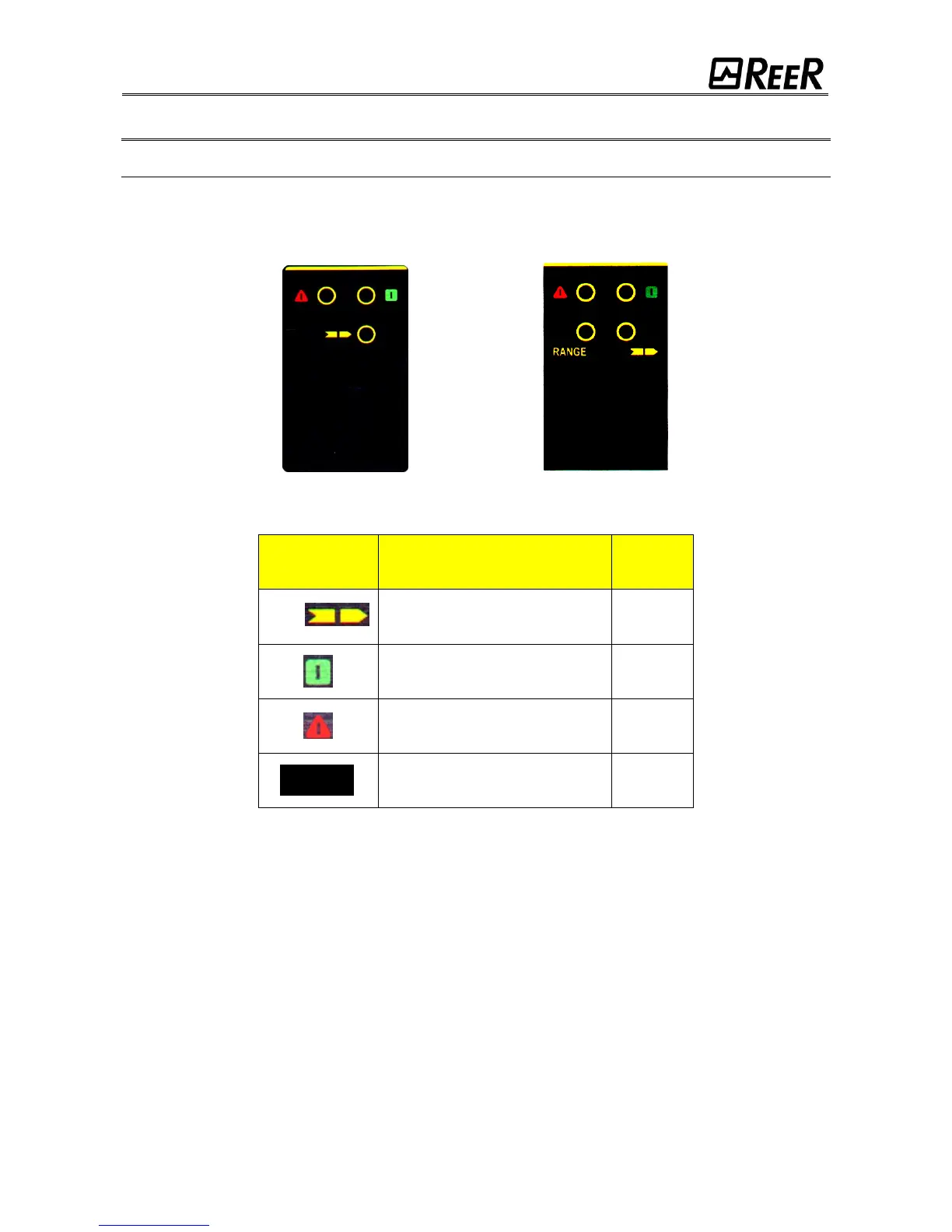

"ML" - "MT" MODELS "J"-"LR"-"MI" MODELS
Figure 24
LED
MEANING NORMAL
FUNCTIONING (LED ON)
COLOR
Test
Light curtain under test
YELLOW
Light curtain functioning
GREEN
Fault detected
RED
High range selected *
ORANGE
Table 3
If a fault is detected, the led will indicate the type of alarm (ref. "TROUBLESHOOTING").
* The value of the selected range depends on the JANUS model. (Refer TECHNICAL DATA - page 31).
RANGE
