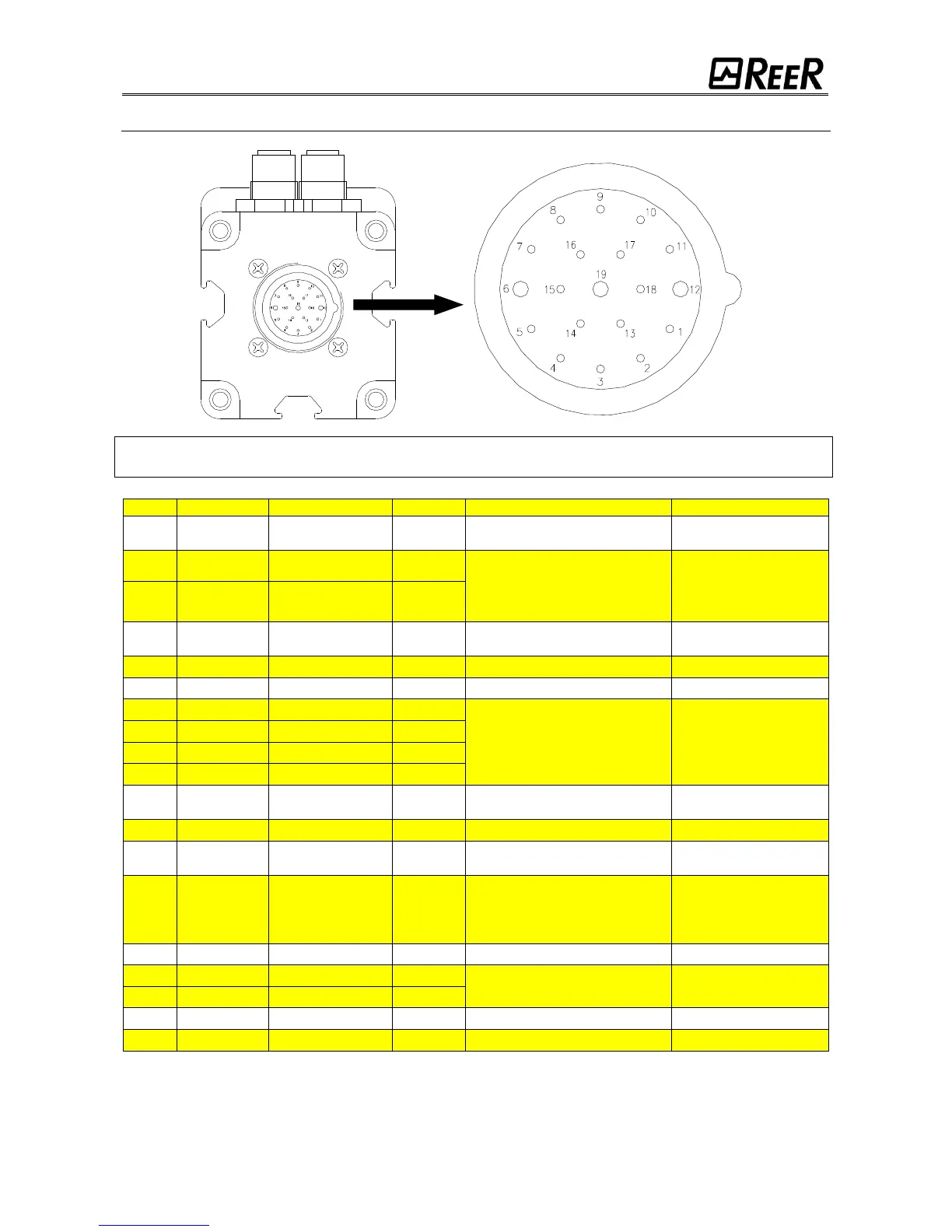

Reer JANUS - RECEIVER CONNECTIONS (Main Connector - Male)

8540573 • 16/09/2016 • Rev.20 23
RECEIVER CONNECTIONS (Main Connector - Male)
 Make sure the M23 connector is screwed down tightly to ensure correct barrier operation! (4 turns)
PIN
COLOR
NAME
TYPE
DESCRIPTION
FUNCTIONING
* 1
White
MUT. LAMP
OUT
Muting lamp output
24VDC with Muting
active
2
Red
OSSD2
OUT
Safety outputs
24VDC with :
 Light curtain clear
 Muting active
 Muting Override
3
Grey
OSSD1
OUT
4
Yellow
STATUS
OUT
Weak signal condition
+ OSSD status
ref. Figure 28
5
Green
N.C.
-
-
-
6
Blue
0VDC
0Vdc power supply
-
* 7
Violet
CONF0
IN
Configuration
of Muting characteristics
ref. Table 12
Table 13
* 8
Pink
CONF1
IN
* 9
Grey-Pink
CONF2
IN
* 10
Red-Blue
CONF3
IN
11
White-Green
ENABLE_K
IN
Enabling of external contactor
control
ref. Table 10
12
Black
PE
Ground connection
-
13
White-Yellow
MAN/AUTO
IN
Manual / Automatic mode
selection
ref. Table 11
14
Yellow-Brown
RESTART
IN
Restart
Active on LO-HI
transition (min.
duration of the signal
400 msec)
15
White-Grey
N.C.
* 16
Grey-Brown
OVERRIDE1
IN
Override signals
ref. Table 14
* 17
White-Pink
OVERRIDE2
IN
18
Brown-Green
FEED_K1K2
IN
Feedback external contactors
ref. Table 10
19
Brown
24VDC
24Vdc power supply
Table 7
* Connection present only in “M” models (with MUTING function)
