8540573 • 16/09/2016 • Rev.20 31

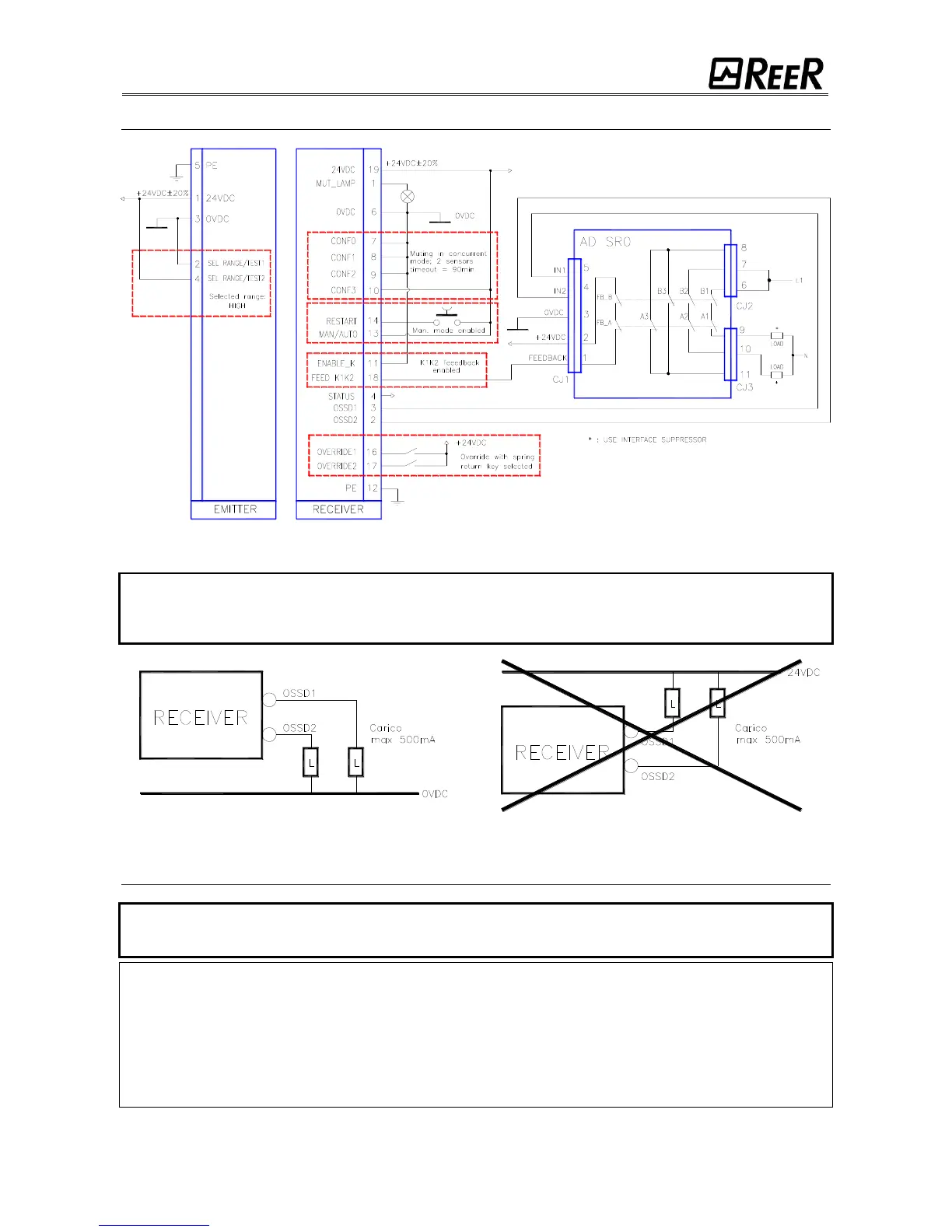

EXAMPLE OF CONNECTION WITH AD SR0 WITH START/RESTART INTERLOCK ACTIVATED
Figura 30
In the protected area clear condition, the Receiver supplies a voltage of 24VDC on both
outputs. The required load must therefore be connected between the output terminals and
the 0DVC (Figure 31).
Figure 31
MUTING STATUS AND LIGHT ("M" MODELS)
Muting status must be highlighted to the outside using a indicator light close to the
guarded opening.
JANUS is equipped with an output (pin 1 of connector M23 on the receiver) to which the indicator
light can be connected and is able to monitor correct functioning of this and also that it is present.
For a JANUS "M" light curtain correct operation the muting lamp must be connected. When using
JANUS "M" without Muting function or Muting lamp, connect the receiver pin 1 to 0VDC (via a 10KΩ
(1/4 W) resistor). If the muting lamp has a malfunction, the curtain switches to stop status indicating
a FAIL on the display of the receiver.
