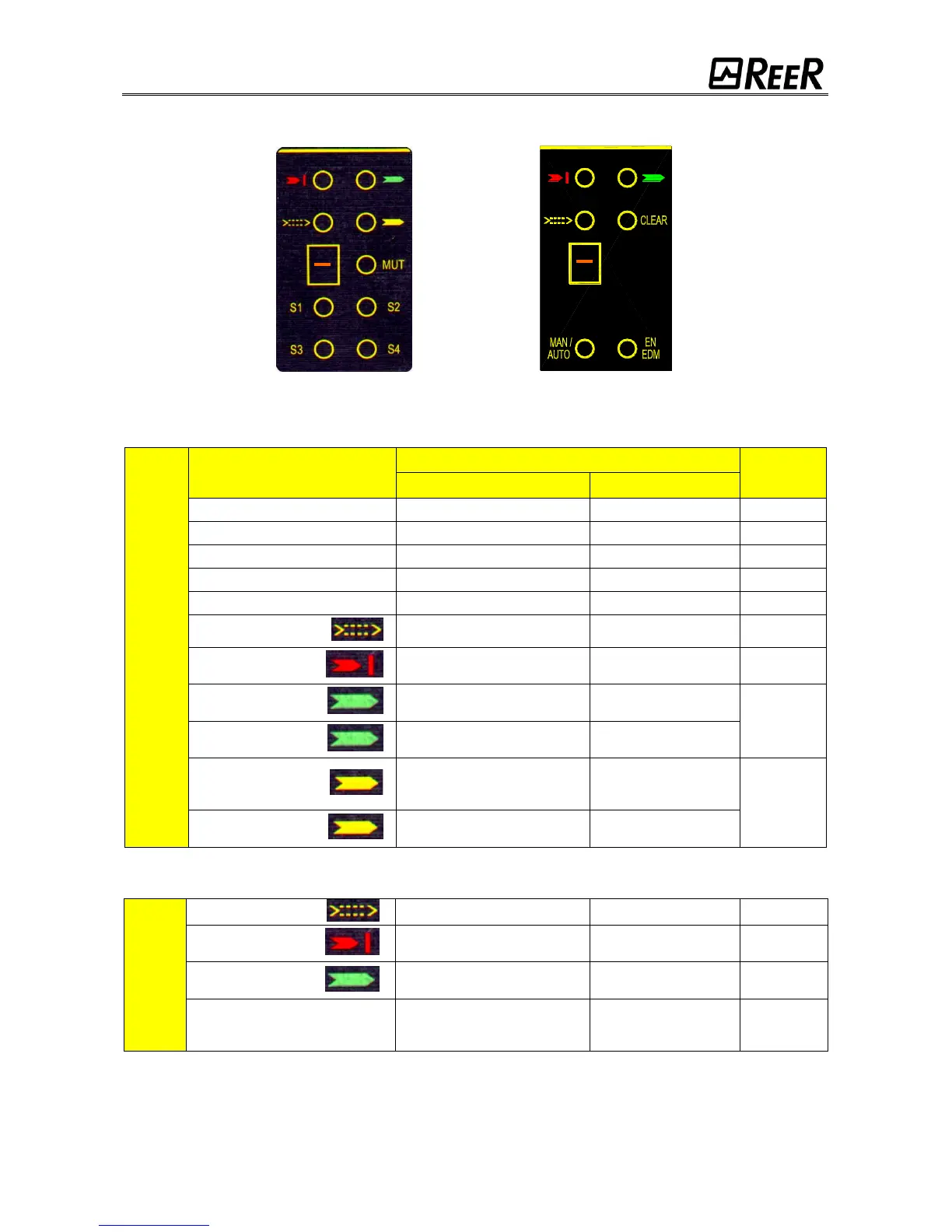

Normal display
Figure 26
JANUS “M”
LED
NORMAL FUNCTIONING
COLOR
(LED ON)
(LED OFF)
S1
Interruption Sensor 1
Sensor 1 clear
YELLOW
S2
Interruption Sensor 2
Sensor 2 clear
YELLOW
S3
Interruption Sensor 3
Sensor 3 clear
YELLOW
S4
Interruption Sensor 4
Sensor 4 clear
YELLOW
MUT
Muting active *
Light curtain active
YELLOW
Weak (1)
Weak signal received
Signal received OK
ORANGE
Break (2)
Light curtain occupied,
OSSD outputs set OFF
-
RED
Guard (3)
Light curtain clear,
OSSD outputs set ON
-
GREEN
Override_1 (3)
Light curtain in override,
OSSD outputs set ON **
-
Clear (4)
Light curtain clear, OSSD
outputs set OFF (the receiver
is waiting for a Restart signal)
-
YELLOW
Override_2 (4)
Override request
(BLINKING LED)
-
* The Muting/Override lamp lights on.
** A small "o" letter appears on the display and at the same time the external Muting/Override lamp blinks.
JANUS “J”
Weak (1)
Weak signal received
Signal received OK
ORANGE
Break (2)
Light curtain occupied,
OSSD outputs set OFF
-
RED
Guard (3)
Light curtain clear,
OSSD outputs set ON
-
GREEN
Clear (4) CLEAR
Light curtain clear, OSSD
outputs set OFF (the receiver
is waiting for a Restart signal)
-
YELLOW
Table 5
In case of fault, only the red led will remain ON and the display will show a flashing "C" or “F” followed by
the fault code (ref. TROUBLESHOOTING paragraph).
