Connected Master parameters visualization
MOSAIC M1S COM connected via LAN
➔
When MOSAIC M1S COM is connected via LAN in the “Module connected” textbox are displayed
these parameters:
- MOSAIC M1S COM: firmware version
- Ethernet Release: current ZIP container stored
- IP: MOSAIC M1S COM IP address
- MAC: MOSAIC M1S COM MAC address *
- Protocol choice: the currently running Fieldbus together with its version
- S/N: module serial number
- The symbol showed into the bottom status bar indicates that the current LAN
communication session is encrypted with AES128.
➔
* If the MOSAIC M1S COM is connected to the Profinet RT fieldbus, there are three MAC
Addresses (with progressive numbering) that identify it. During a connection to MSD, the first of
the three available MAC Addresses is displayed in the parameter window.

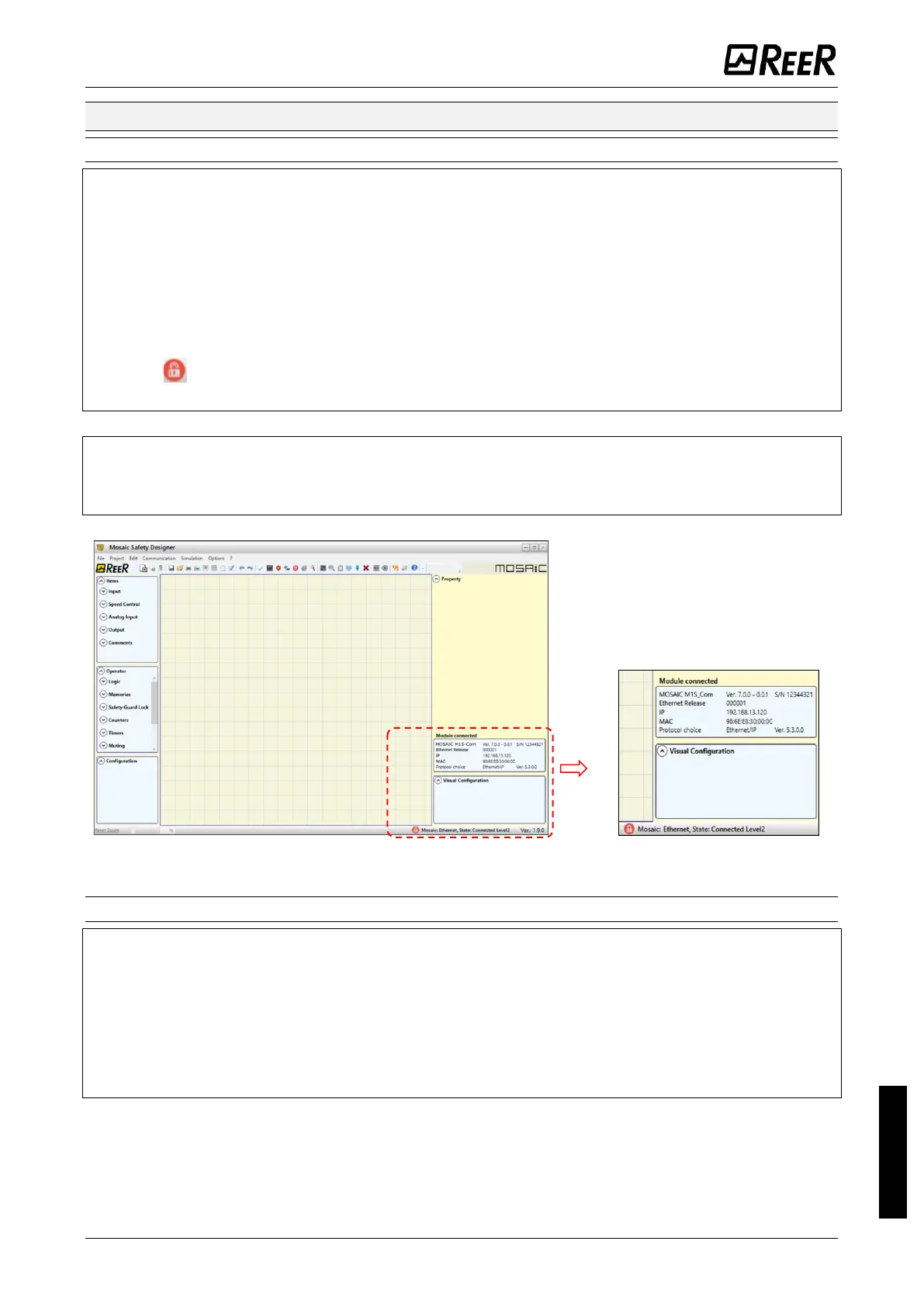

Figure 84
MOSAIC M1S COM connected via USB
➔
When MOSAIC M1S COM is connected via USB in the “Module connected” textbox are displayed
these parameters:
- MOSAIC M1S COM: firmware version
- Ethernet Release: current ZIP container stored
- MAC: MOSAIC M1S COM MAC address
- Protocol choice: the currently running Fieldbus together with its version.
- S/N: module serial number
