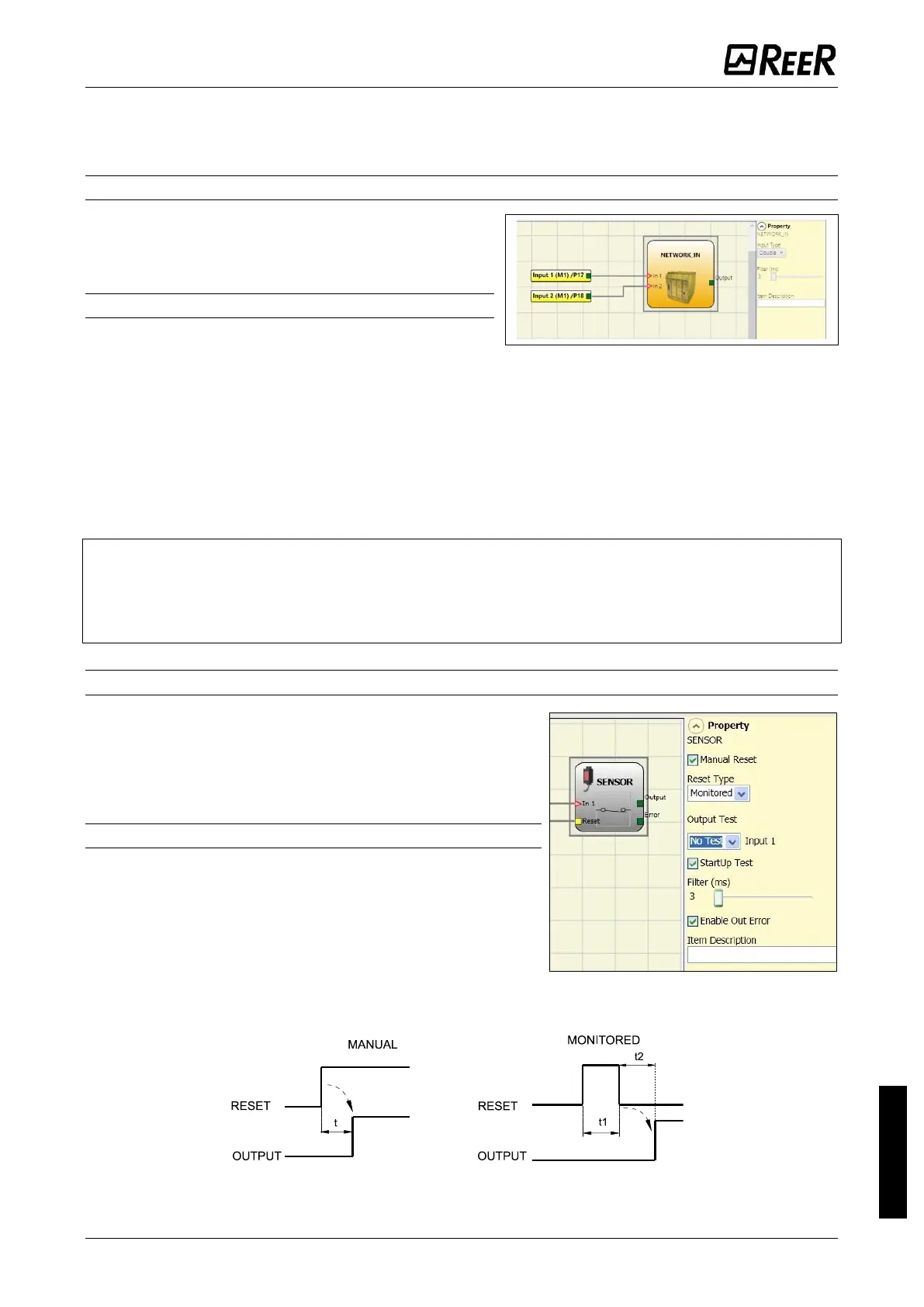

Reer MOSAIC M1S User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 25/01/2023 • Rev.43 151
English
Item description: This allows a description of the component's function to be entered. The
text is displayed in the top part of the symbol.
NETWORK_IN
This functional block implements a Network
connection input interface; it generates an LL1 in
the OUT output when the line is high, otherwise
an LL0.
Parameters
Type of input:
- Single - enables the connection of Signalling
outputs of an external MOSAIC M1, MOSAIC M1S, MOSAIC M1S COM unit.
- Double - enables the connection of OSSD outputs of an external MOSAIC M1,
MOSAIC M1S, MOSAIC M1S COM unit.
Filter (ms): Enables the filtering of signals from an external MOSAIC M1, MOSAIC M1S,
MOSAIC M1S COM unit.
This filter can be set to between 3 and 250ms. The length of the filter affects the calculation
of the unit's total response time.
➔
This input can only be allocated on MOSAIC M1, MOSAIC M1S, MOSAIC M1S COM and can’t be
used on expansion modules
➔
This input must be used when Mosaic OSSD outputs are connected to the inputs of a second
downstream Mosaic or together with the NETWORK operator.
SENSOR
The SENSOR function block verifies the status of the
input of a sensor (not a safety sensor). If the beam of
the sensor is occupied (sensor output FALSE) the
output is 0. Otherwise, with the beam clear and an
output of 1 (TRUE) then the output is 1.
Parameters
Manual reset: If selected this enables the request to
reset each time the area protected by the sensor is
occupied. Otherwise, enabling of the output directly
follows the input conditions.
There are two types of reset: Manual and Monitored.
When Manual is selected the system only verifies the
signal's transition from 0 to 1. If Monitored is selected the double transition from 0 to 1
and then back to 0 is verified.
t = 250ms
t1 > 250ms
t2 = 250ms
