Reer MOSAIC M1S User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 25/01/2023 • Rev.43 123
English

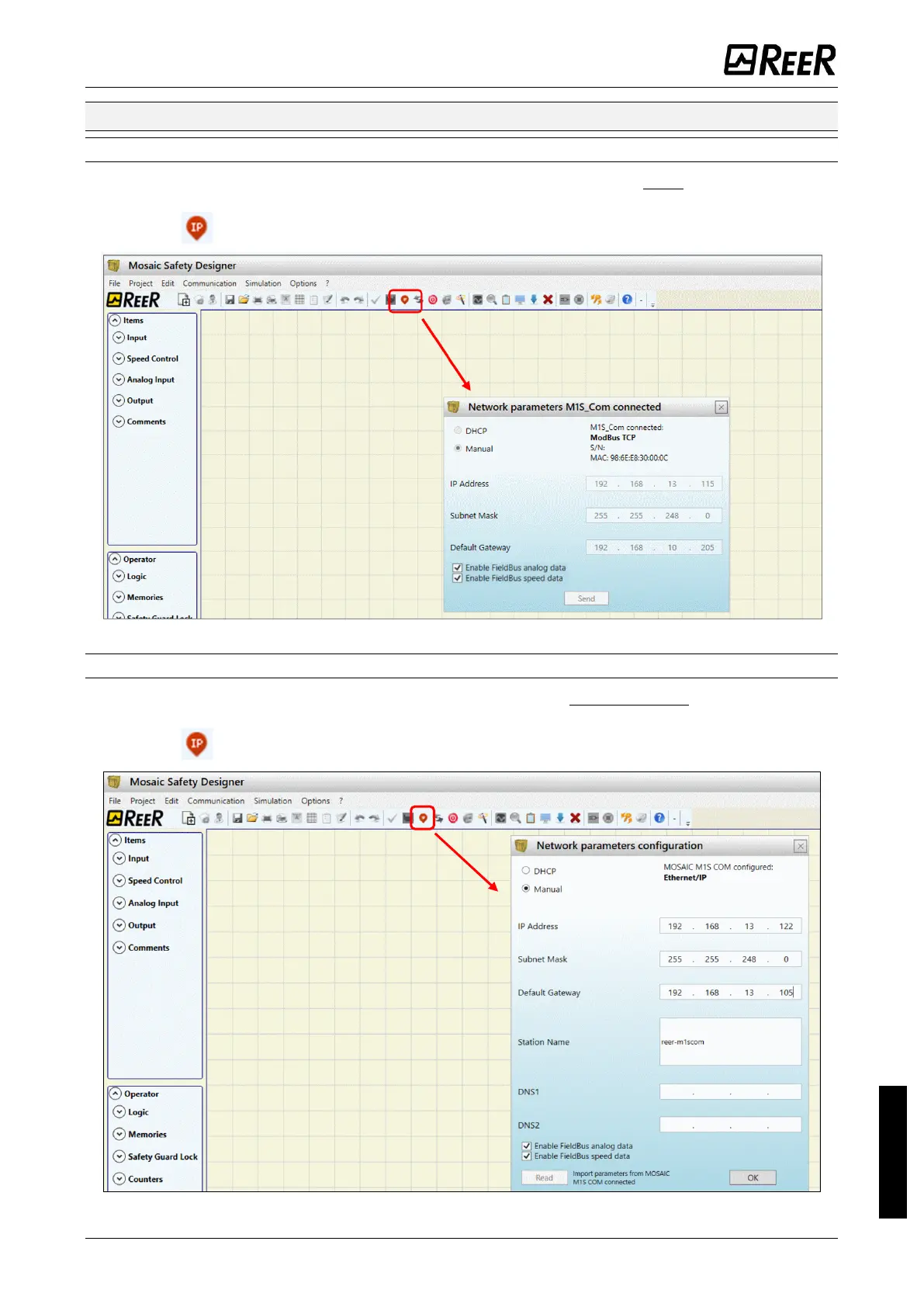

Operations available with master connected (MOSAIC M1S COM)
Visualization network parameters
With the Level 1 password, the user is only allowed to view the connection
parameters (refer to Password protection).
Select the icon to read the Fieldbus parameters.
Figure 87
Visualization/setting network parameters (MOSAIC M1S COM)
With the Level 2 password, the user is enabled to view and edit the connection
parameters (refer to Password protection).
Select the icon to modify/send the Fieldbus parameters.
Figure 88
