MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 25/01/2023 • Rev.43 241
English
If the measurement values are over “Threshold” value then the state of the threshold
comparator is “OVER THRESHOLD” until the measurements stay over “Threshold-
Hysteresis” value.
If the measurement values are under “Threshold-Hysteresis” value then the state of
the threshold comparator is “UNDER THRESHOLD” until the measurements stay
under “Threshold” value.
In the following figure is given an example of the behavior of the threshold
comparator.

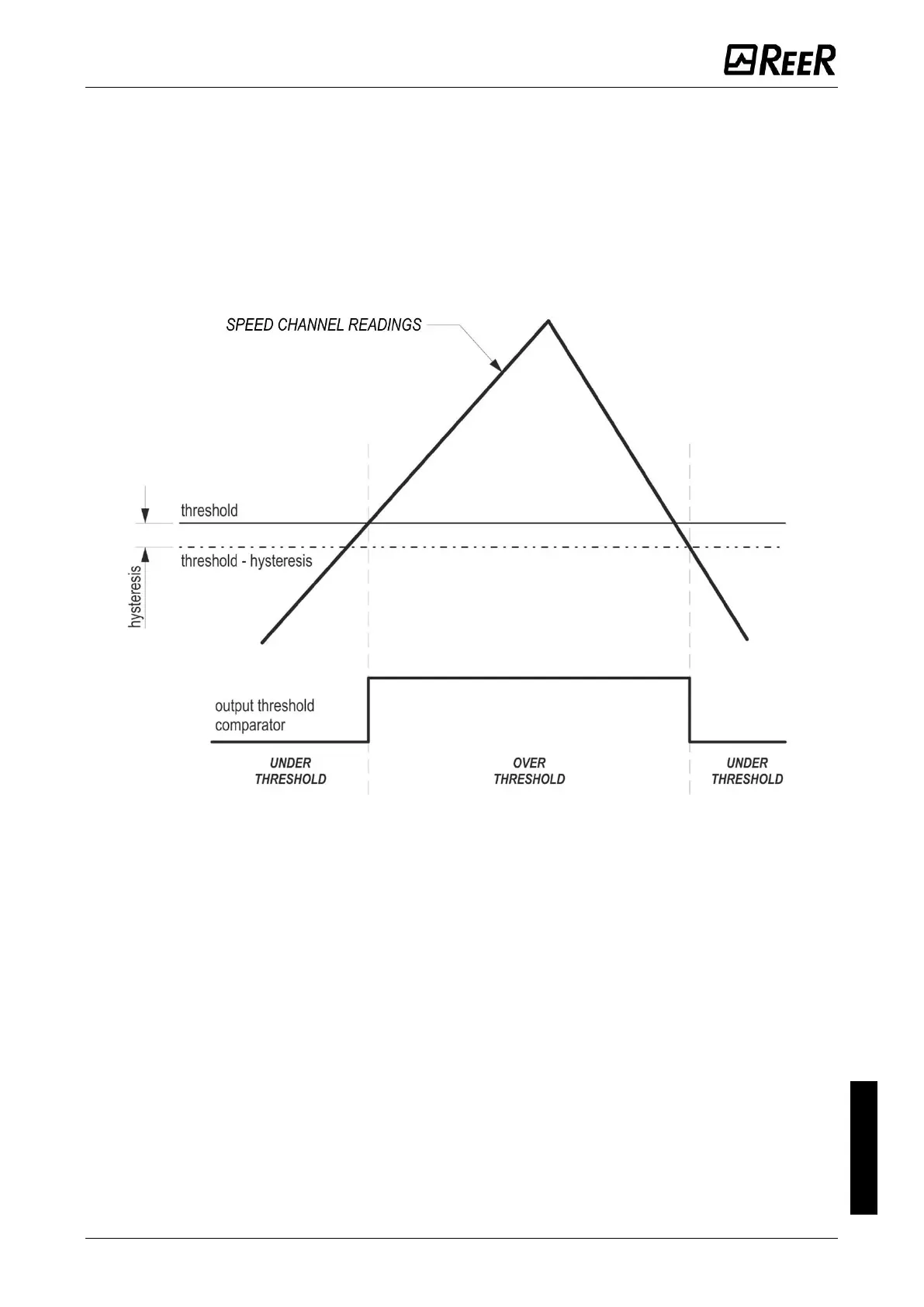

Example of threshold comparator behavior
