Reer MOSAIC MI802 User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 30/03/2016 • Rev.26 13
English
Instructions concerning connection cables.

Wire size range: AWG 12÷30, (solid/stranded) (UL).

Use 60/75°C copper (Cu) conductor only.

We recommend the use of separate power supplies for the safety module and for
other electrical power equipment (electric motors, inverters, frequency converters)
or other sources of disturbance.

Cables used for connections of longer than 50m must have a cross-section of at
least 1mm2 (AWG16).

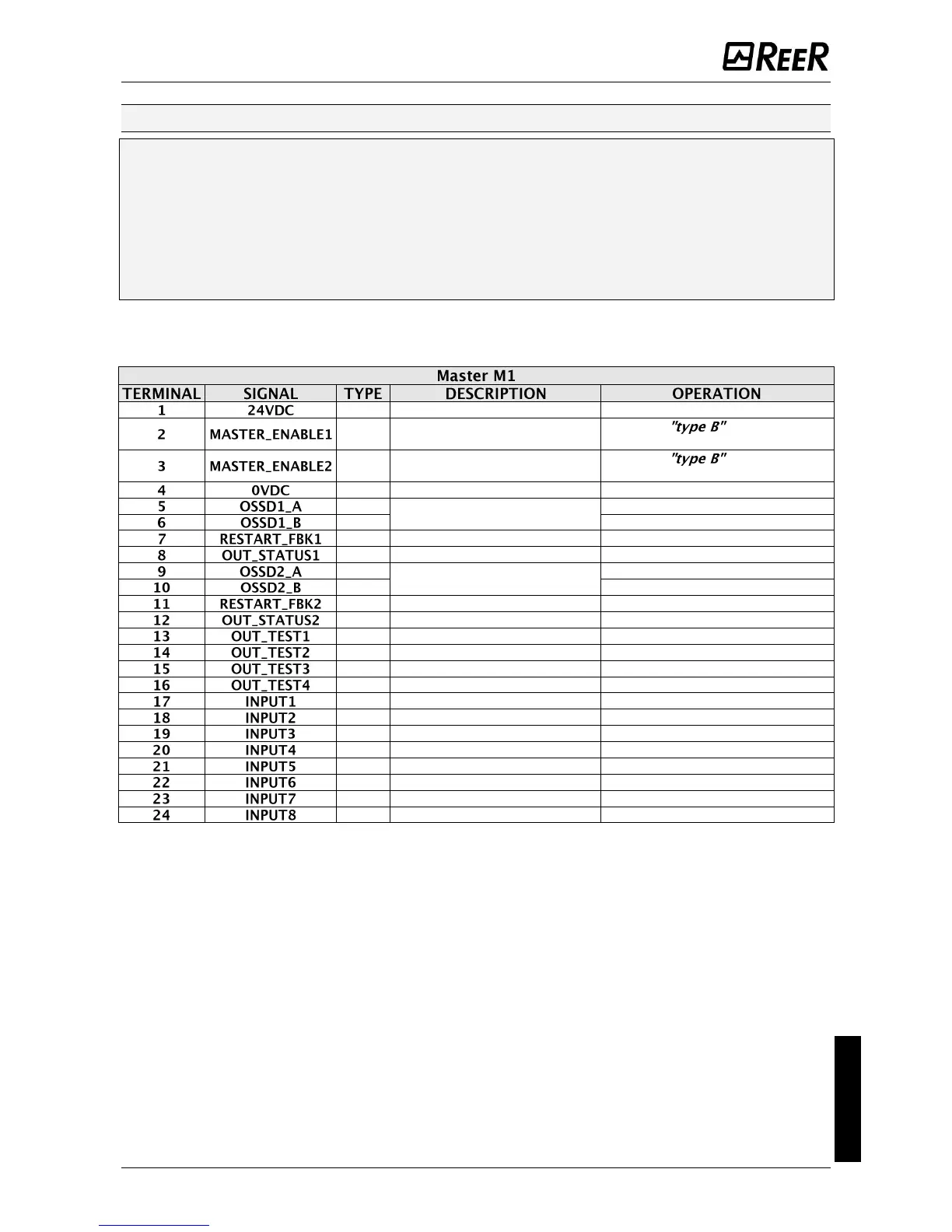

Connections of each single MOSAIC system unit are listed in the table below:
-
24VDC power supply
-
Input
Master Enable 1
Input ( according to
EN 61131-2 )
Input
Master Enable 2
Input ( according to
EN 61131-2 )
-
0VDC power supply
-
Output
Static output 1
PNP active high
Output
PNP active high
Input
Feedback/Restart 1
Input according to EN 61131-2
Output
Programmable signal output
PNP active high
Output
Static output 2
PNP active high
Output
PNP active high
Input
Feedback/Restart 2
Input according to EN 61131-2
Output
Programmable signal output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Input
Digital input 1
Input according to EN 61131-2
Input
Digital input 2
Input according to EN 61131-2
Input
Digital input 3
Input according to EN 61131-2
Input
Digital input 4
Input according to EN 61131-2
Input
Digital input 5
Input according to EN 61131-2
Input
Digital input 6
Input according to EN 61131-2
Input
Digital input 7
Input according to EN 61131-2
Input
Digital input 8
Input according to EN 61131-2
