MASTER ENABLE
The MOSAIC M1 master has two inputs: MASTER_ENABLE1 and MASTER_ENABLE2.

These signals must both be permanently set to logic level 1 (24VDC) for the MOSAIC
to operate. If the user needs to disable the MOSAIC simply lower these inputs to
logic level 0 (0VDC).
NODE SEL
The NODE_SEL0 and NODE_SEL1 inputs (on the SLAVE units) are used to attribute a

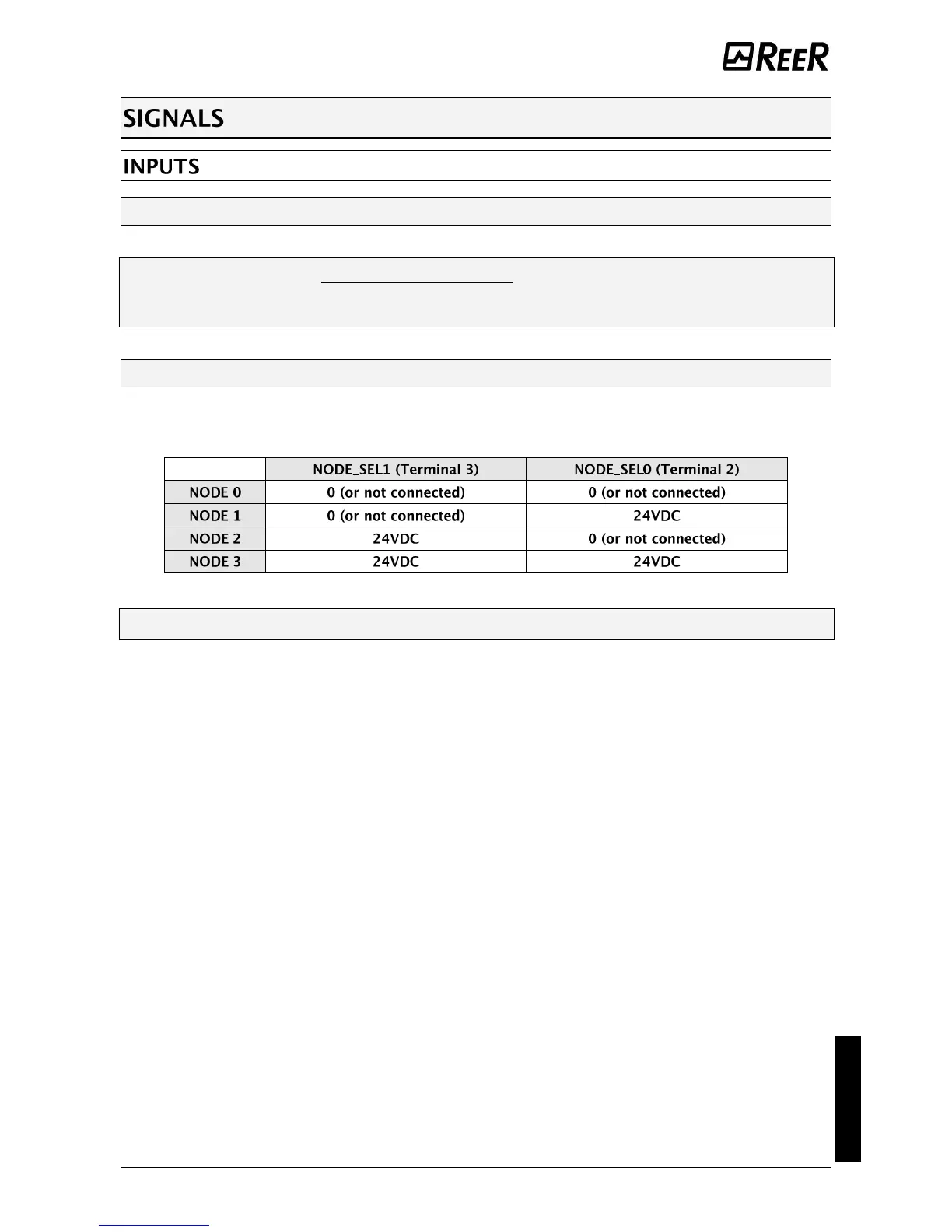

physical address to the slave units with the connections shown in Table 15:
Table 15

It is not allowed to use the same physical address on two units of the same type.
