Reer MOSAIC MI802 User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
26 8540780 • 30/03/2016 • Rev.26
English
PROXIMITY INPUT FOR SPEED CONTROLLER MV
When an axis of the MV modules is configured for a measurement with two proximity
switches, these can be configured in interleaved mode. Under the conditions listed below
the system reaches a Performance Level = PLe:
 Proximity switches must be fitted such that the recorded signals overlap.
 Proximity switches must be fitted such that at least one is always activated.

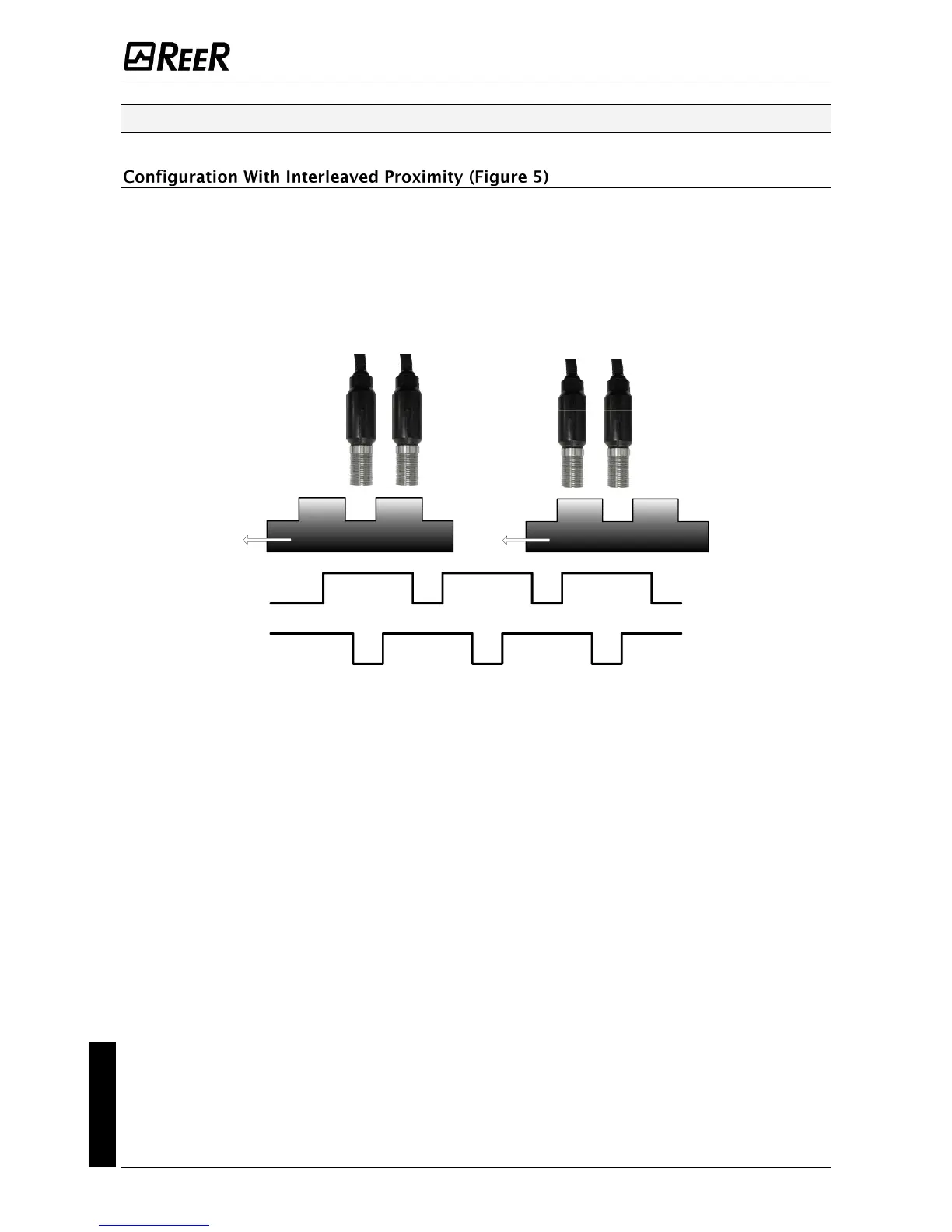

Figure 5
In addition:
 The proximity switches must be PNP type.
 The proximity switches must be NO type (Output ON when detecting metal).
 With the above conditions fulfilled, the DC value is equal to 90%.
 The two proximity switches must be of the same model, with MTTF > 70 years.
