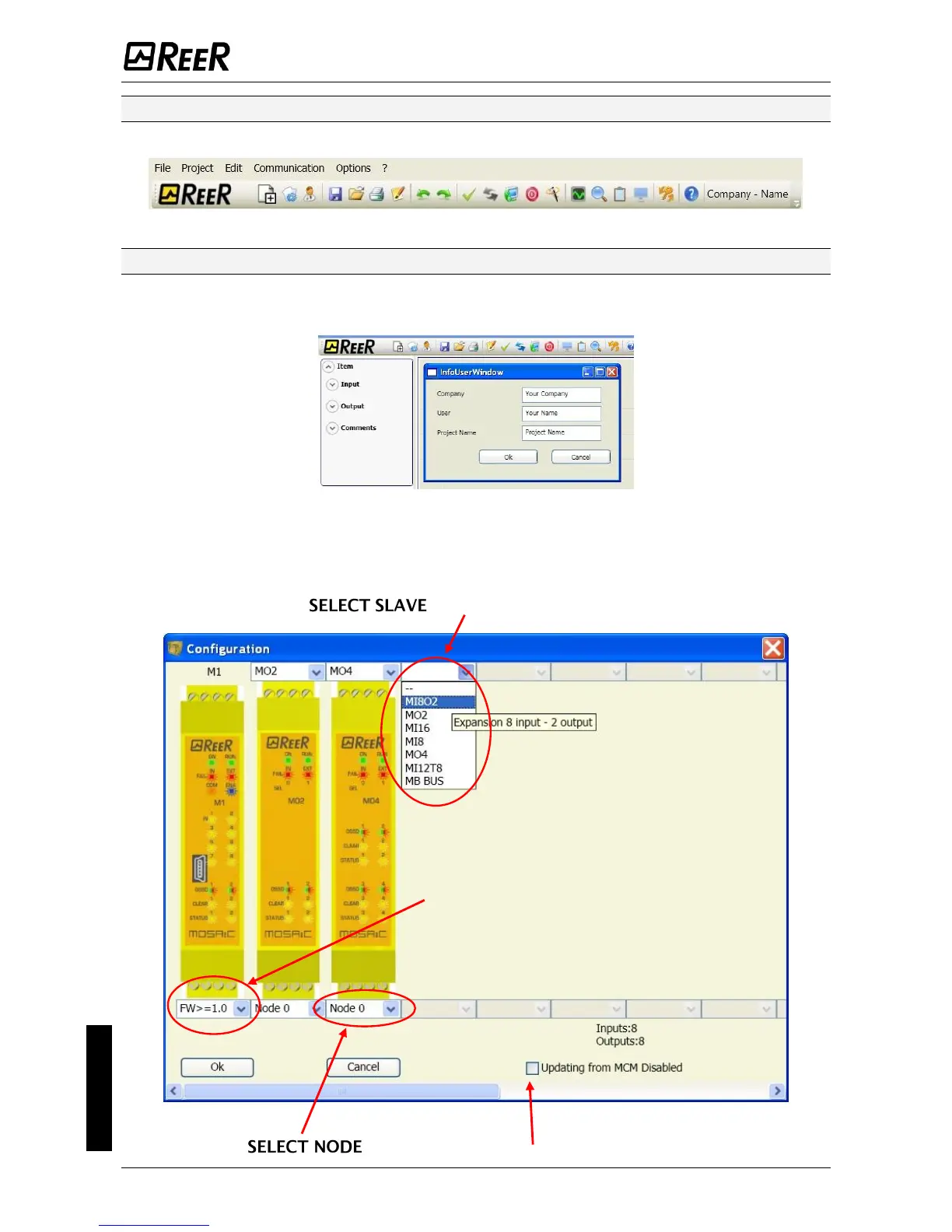

Textual tool bar
Optionally the textual tool bar shown below is also available (drop down).
Figure 38
Create a new project (configure the MOSAIC system)
Select icon CREATE (Figure 37) from the standard tool bar to start a new project. The user
authentication window is displayed (Figure 39).
Figure 39
Next the MSD displays a window showing the M1 only.
You may add the various units needed to create your system, using the pull-down menus
at the top of the screen (select slave) and at the bottom to select the relative node (0÷3).
(to add to your configuration)
Figure 40
(from 0 to 3) Select to disable MCM operations
Firmware version

Reer MOSAIC MI802 Specifications

General

Type	Safety Controller
Operating Voltage	24 VDC
Protection Rating	IP20
Safety Category	SIL 3
Operating Temperature	-10°C to +55°C
Inputs	8 safety inputs
