Connection
Control Remote — 09.11.2015 German — 5
4 Connection
Danger – electric shock!
• Risk of serious injury or death due to electric shock.
– Ensure that the system is voltage-free before installing the device.
– Ensure that the system is secured and cannot be reactivated by other persons.
– Ensure that installation work for the electric connection of the device is carried out by an electrician, and in
compliance with electrical engineering regulations.
Danger – electric shock!
• Risk of serious injury or death due to electric shock. Some parts of the main board may still carry 230 V voltage even
with the device physically isolated from the 230 V power supply.
– Before you remove the covers, completely isolate the device controller from the power supply.
– Verify that the main circuit board is voltage-free.
4.1 Power supply
AnexternalmainsadapterissuppliedwiththeReflexControlRemotetoprovidepower.


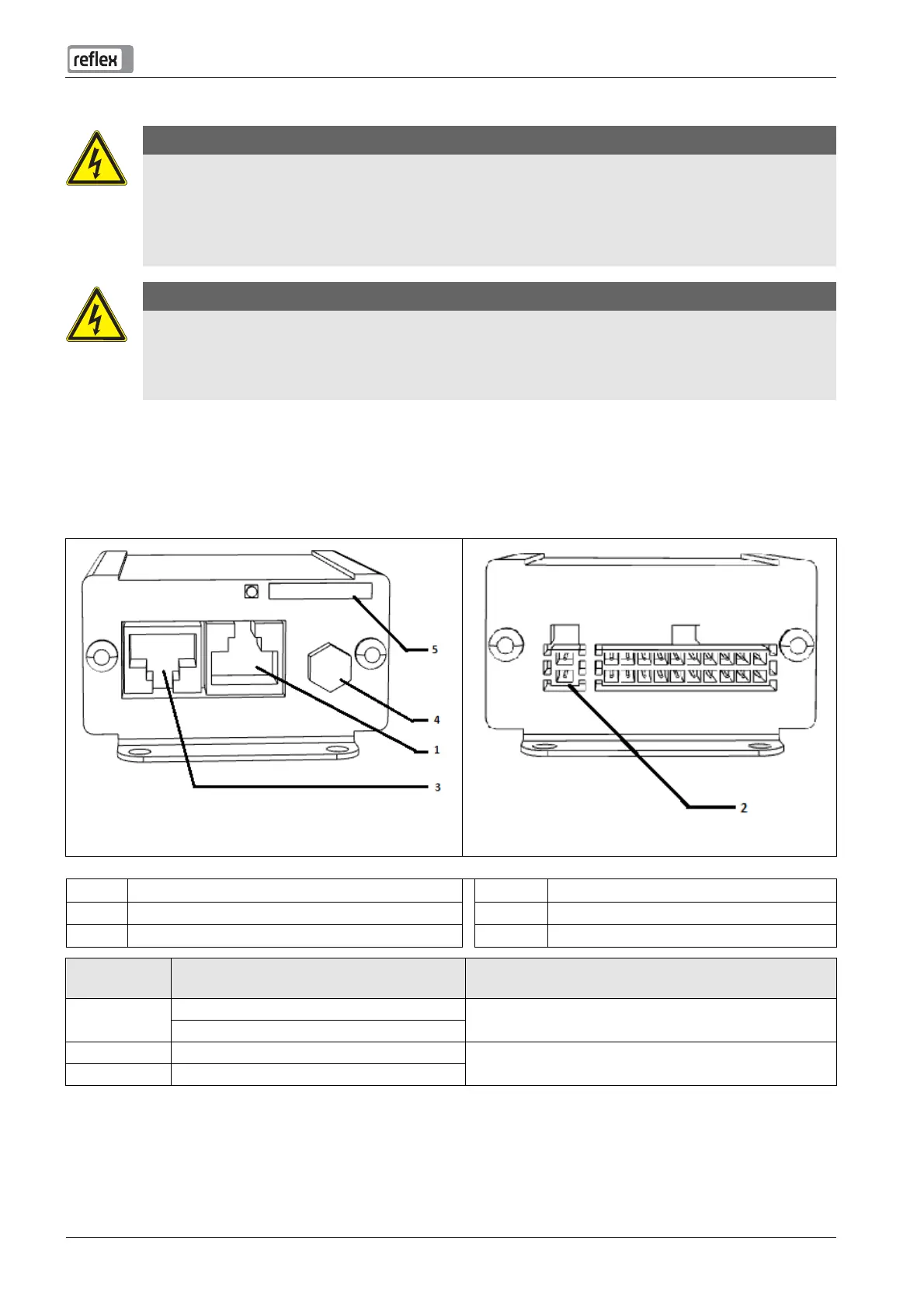

Reflex Control Remote housing.



1 RS485interfaceRJ45jack 4 Aerialconnection(GSM)
2 Clampsforthepowersupply 5 SIMcard
3 LANinterfaceRJ45jack 6
Terminal
number
Signal Function
RJ45 RS-485 signal A (+) yellow/white
RS-485 interface
RS-485 signal B (-) green/white
1 GND Voltage supply
2 6-30VDC (24V DC)
