Reflex Control Basic User Manual

Settings
10 — German Control Remote - 09.11.2015

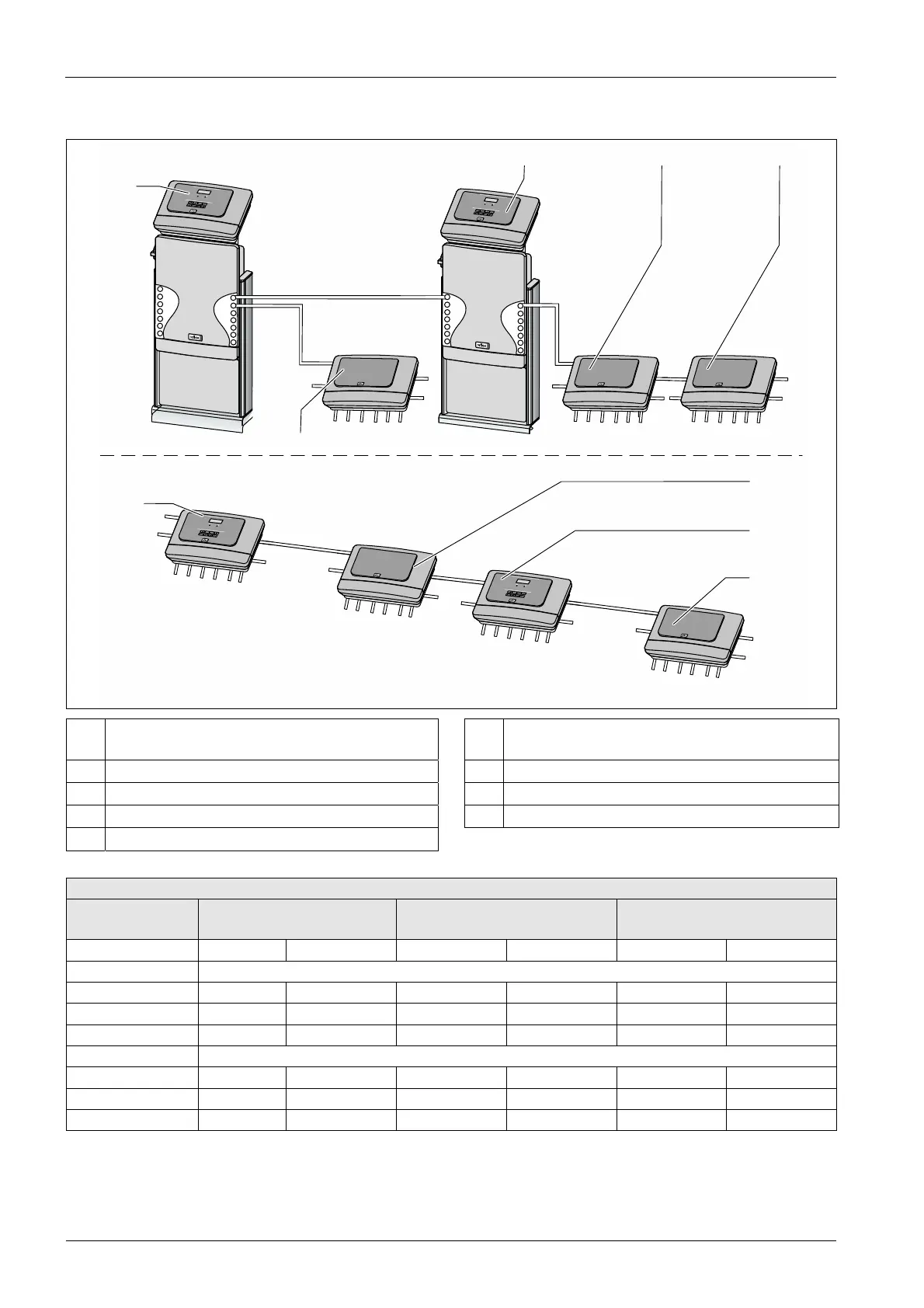

Device controllers and I/O modules in Master – Slave functions.
000255_00 _R0012
1
7
9
6
2
3
8
4 5
1
ControlTouchcontrollerwithControlRemotein
Masterfunction
 6
ControlBasiccontrollerwithControlRemotein
Masterfunction
2 I/OmodulefortheMasterfunction7 I/OmodulefortheMasterfunction
3 ControlTouchcontrollerinSlavefunction8 ControlBasiccontrollerinSlavefunction
4 I/OmodulefortheSlavefunction9 I/OmodulefortheMasterfunction
5 Busmodules
Terminator settings, example 1 Control Touch
Jumper/switch Jumpers J10 and J11 DIP switches 1 and 2
Jumper J3
1 and 2 and 3 and 4
Setting Activated Deactivated Activated Deactivated Activated Deactivated
Master function:
I/O module X -- -- -- -- --
Control Touch -- -- X -- -- --
Control Remote -- -- -- - -- --
Slave function:
Control Touch -- X -- -- -- --
I/O modules -- -- -- -- -- --
Bus modules -- -- X -- --
