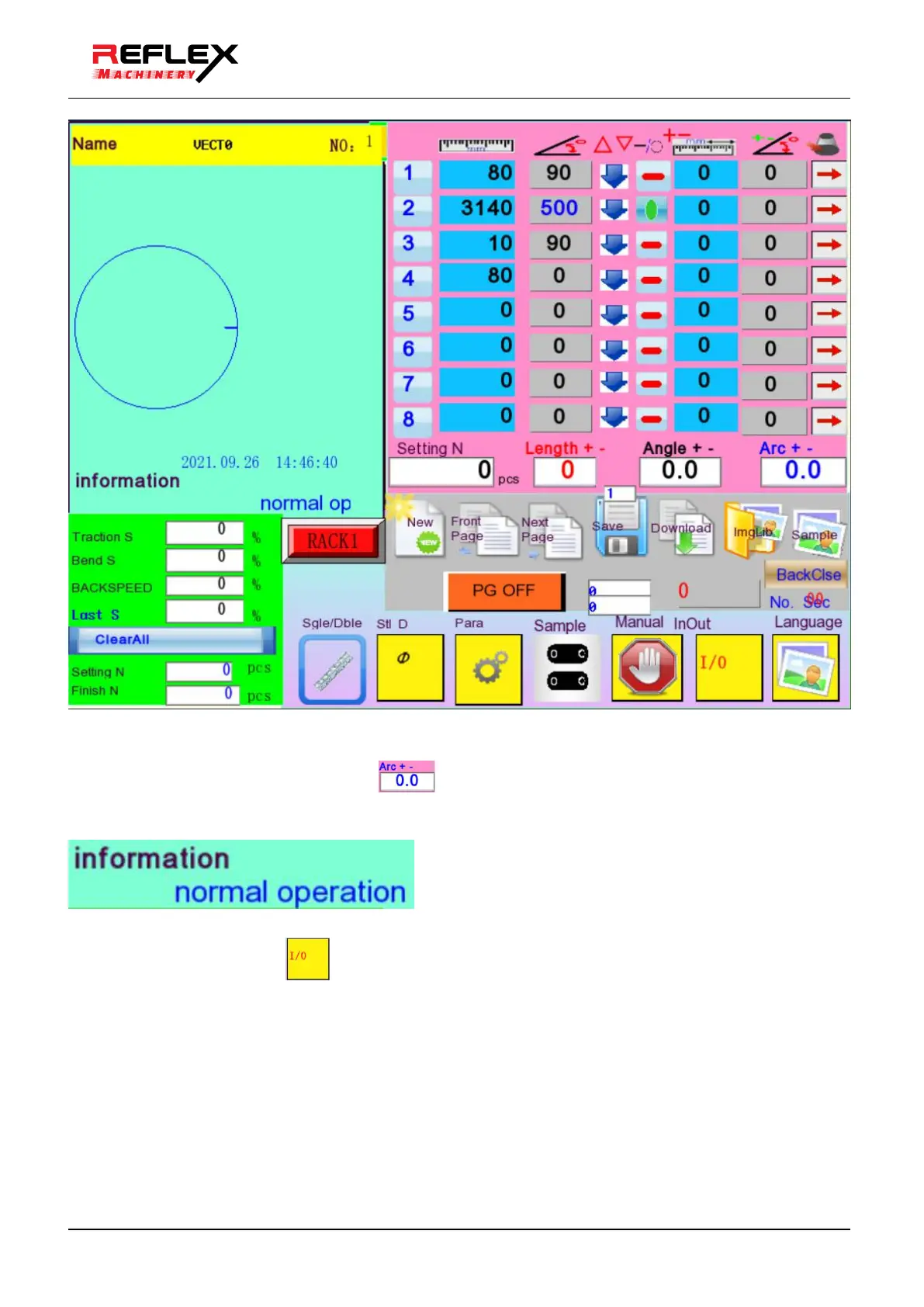

Here add a side of 10 mm, then bend it by 90 degrees, and finally feed the material by 80 mm.
Click again to save, download, and confirm as the current task.
2. Adjust the arc compensation according to the diameter of the circle. The size of the arc can be
modified. The larger the value, the smaller the arc.
●Fault display analysis function
●Maintenance personnel can find out the cause of the failure based on the relevant alarm messages.
●When the user touches the button, the following input and output monitor function indicator display
screen will appear
The main purpose of this screen is to monitor the operating status of the machine when the system is
debugged or malfunctions occur.
As shown below:
