CHAPTER 6
6-34

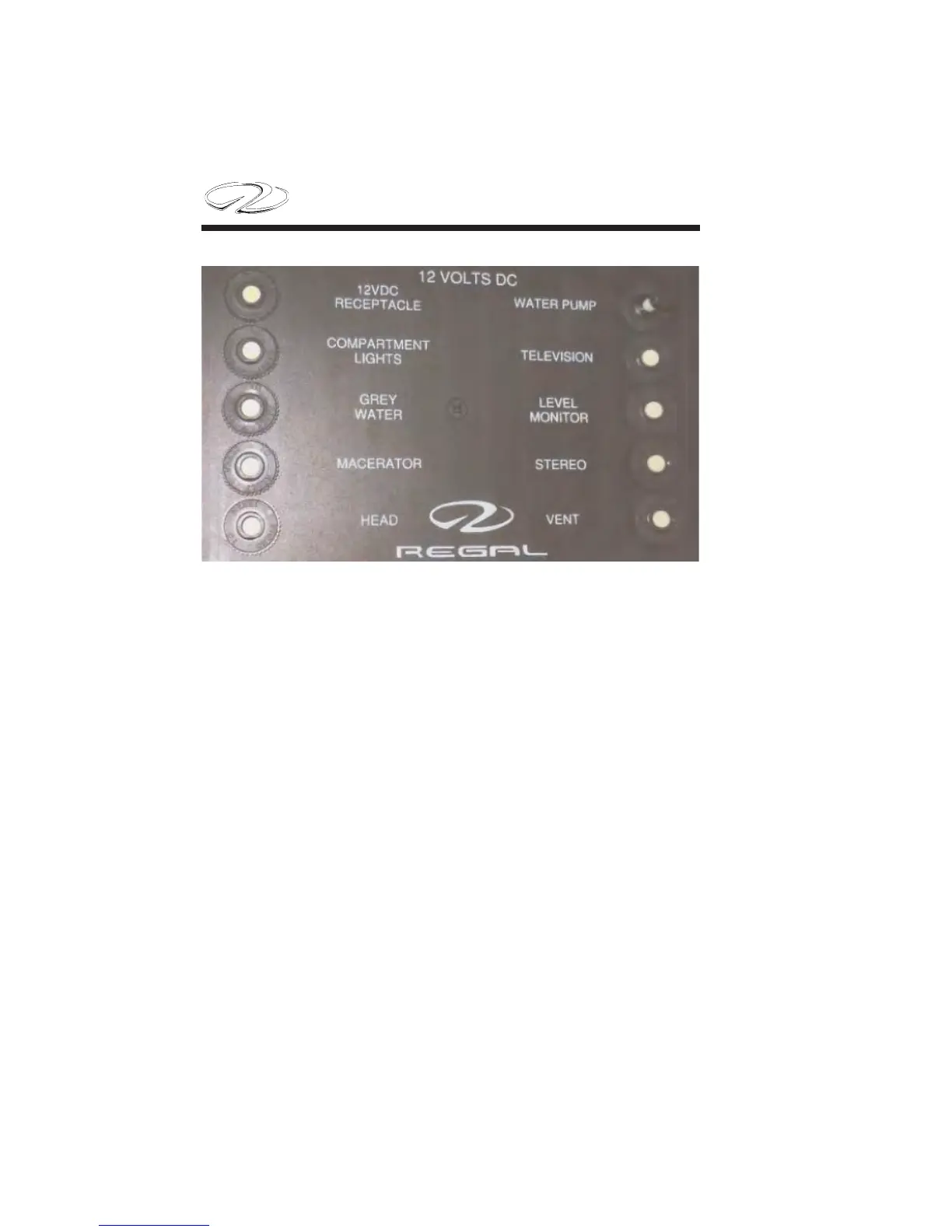

An auxiliary 12 volt breaker panel is located in the head. Below is an
explanation of selected breakers.
12 VDC Receptacle- Protects the dash accessory receptacle.
Compartment Lights- Protects the head light and the light beneath
the helm area.
Grey Water- Protects the grey water sump pump circuitry.
Macerator- Protects the optional overboard discharge pump.
Head- Protects optional electric head.
Water Pump- Protects the fresh water pump.
Television- Not currently used on this model.
Level Monitor- Protects the optional monitor panel.
