Fresh Water System (Pressurized)
Pressure Pump
Feed Hose
Water Filter

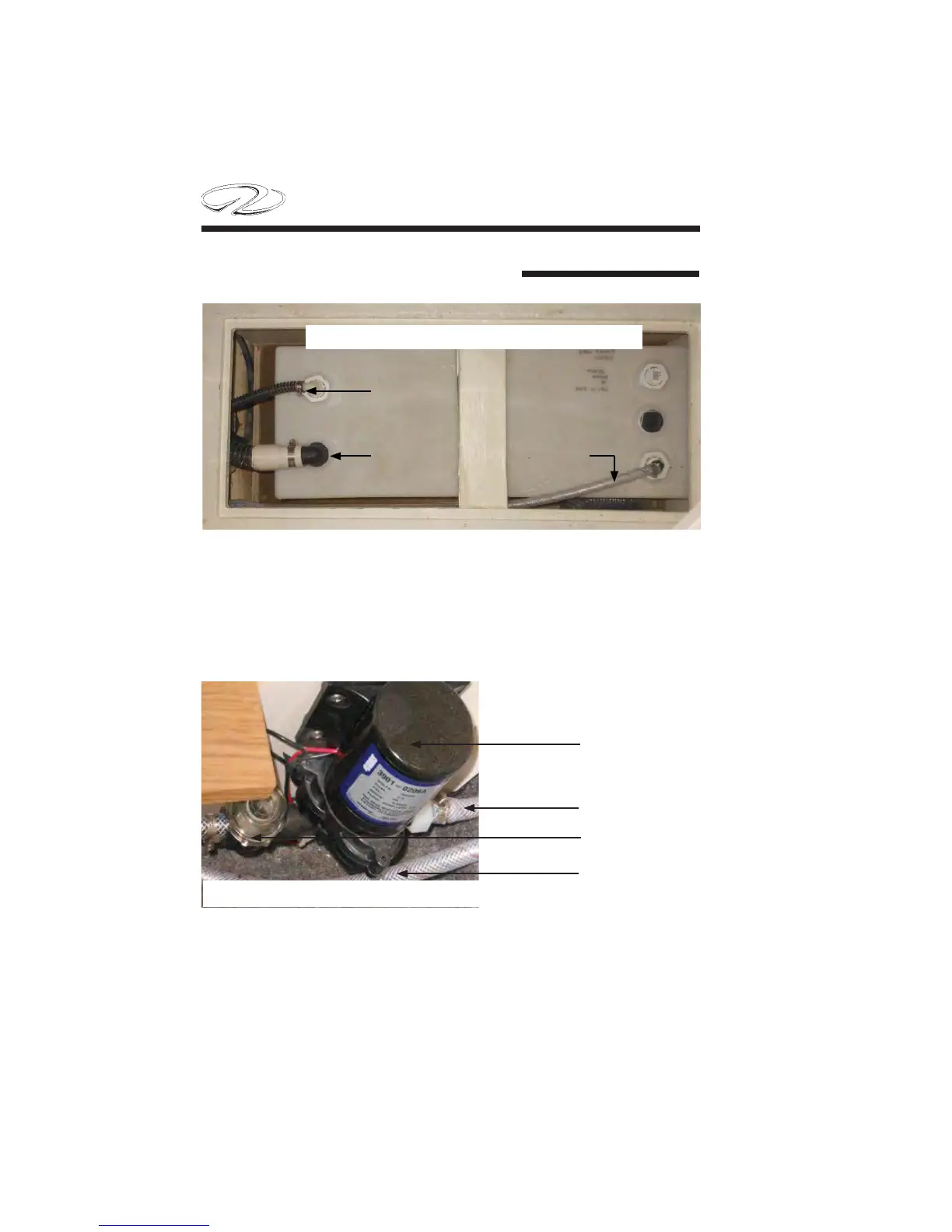

Typical Freshwater Pump
The fresh water pump is located forward of the fresh water tank un-
der the cover. Remove the screws to access the pump/fi lter.
Note: The fresh water tank level should be topped off before leaving
the dock. Ensure the water quality before fi lling the tank at the deck
fi ll marked “water” located on the bow.
Fill Hose
Outgoing Water
To Equipment
Incoming Water
From Tank
Typical Water Tank
The fresh water tank is located under the amidships cockpit fl oor. The
capacity is approximately 18 gallons. A feed hose connects the system
to the fresh water pump/strainer for distribution purposes. In cold
climates, follow appropriate winterization procedures for the entire
water system.
Vent Hose
