M. BILGE PUMP
F. HOLDING EMPTYING POINT
D. WATER TANK FILLING POINT
K. TOWING STRONG POINT
A. FUEL TANK
C. WATER TANK
I. AUTOMATIC FIRE EXTINGUISHER
J. ANCHOR STRONG POINT
E. HOLDING TANK
L. BATTERY SWITCH
H. THRU-HULL FITTINGS
B. FUEL TANK FILLING POINT
G. SEACOCKS
KEY
6/3/14 -
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE
INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN
PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
1 OF 1
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
REGAL MARINE INDUSTRIES
ALL RIGHTS RESERVED
APPROVED BY:
DWG. NO.:
DATE:
7
DRAWING TITLE:
PAGE:
DRAWN BY:
REVISION:
-
JAL

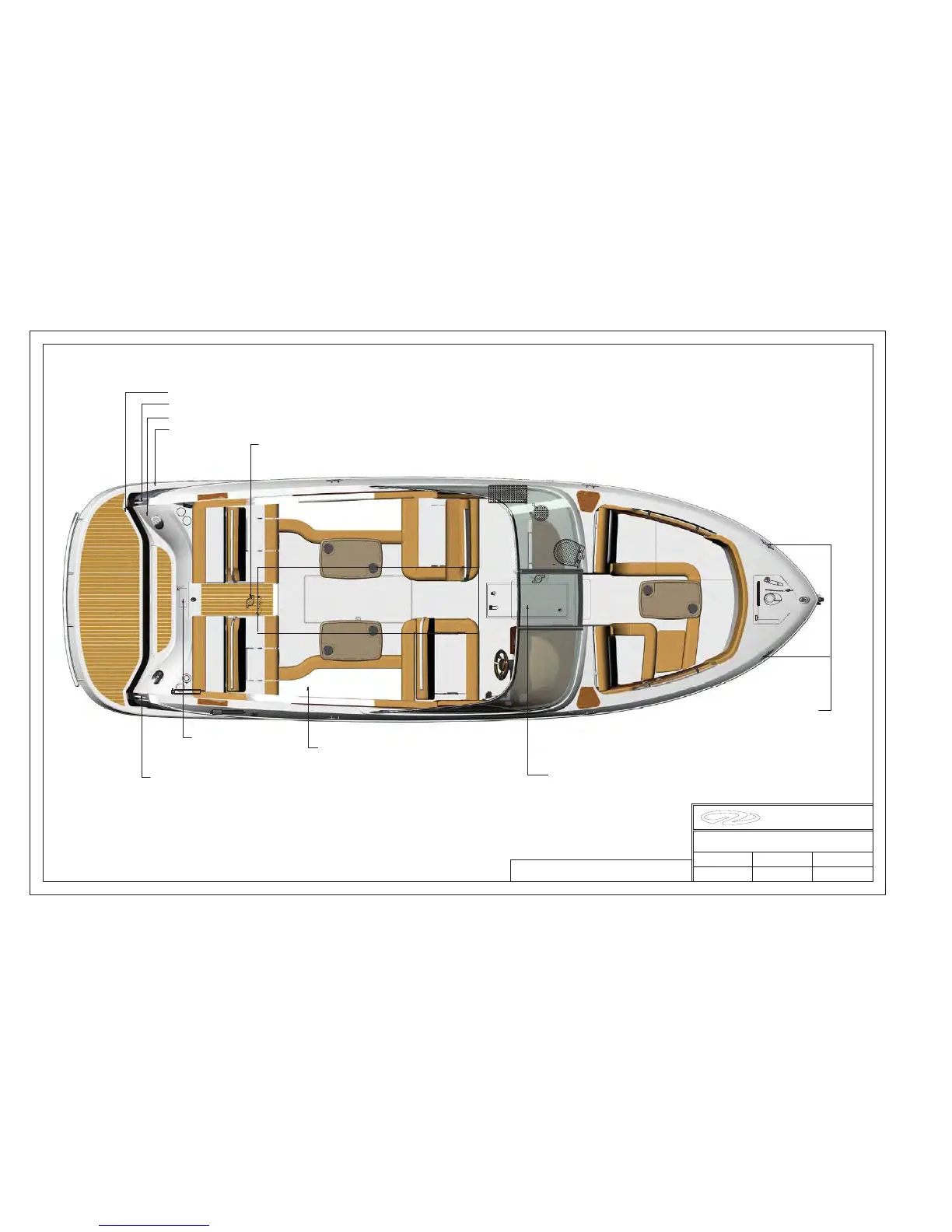

2800 Component Location
(I) Automatic Fire
Extinguisher
(J) Anchor Strong Point
(C) Water Tank
(L) Battey Switch
(J) Anchor Strong Point
(E) Holding Tank
(J) Anchor Strong Point
(G) Seacock
(F) Holding Empting Point
(A) Fuel Tank
108 Gallons
(M) Bilge Pump
T
o
i
l
e
t
Sink
(C) WATER TANK
To Next Page
