Regal 2800 - Page 353

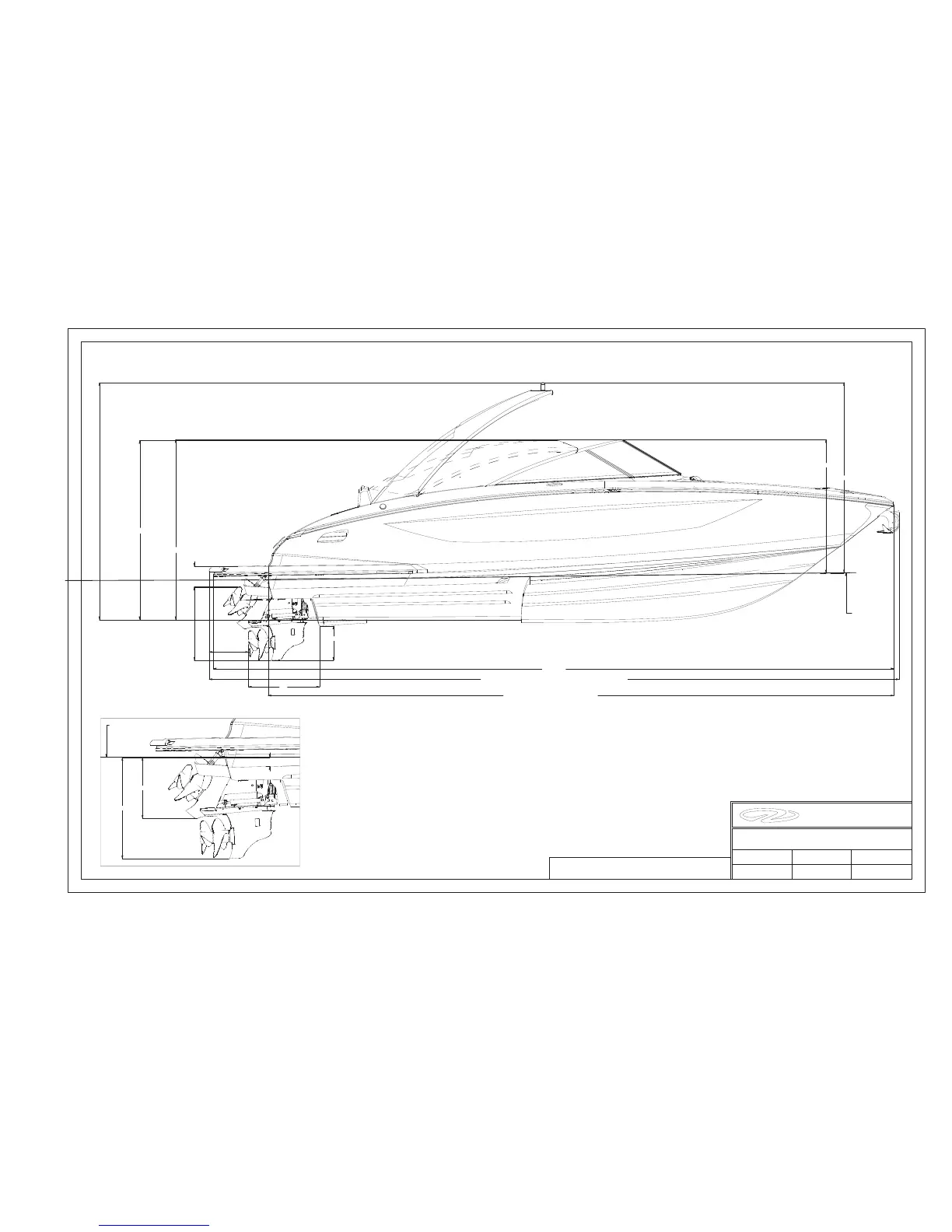

2800 BOW RIDER MAIN DIMENSIONS
6/3/14
5
DWG. NO.:
PAGE:
REVISION:
2800 Main Dimensions
APPROVED BY:
REGAL MARINE INDUSTRIES
DRAWN BY:
DATE:
1 OF 1
2300 JETPORT DRIVE
ORLANDO, FLORID A 32809
TEL (407) 851-4360
JAL
-
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE
INDUSTRIES. ANY REPRODU CTION IN PART OR AS WHOLE WITHOUT THE WRITTEN
PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
-
ALL RIGHTS RESERVED
DRAWING TITLE:
16"
33 1/4"
10' 1/2" Arch Up W/ Nav Light
10 1/4"
7' 7" (Top of Window)
27"
Water Line
7' 5" (Arch Down)
Water Line
38"
LOA W/O Swim Platform: 26' 2",7.97m
28' 4" (Without 1 1/2" anchor, 2 1/2" swim platform grab rail)
8'
CL: 28' 8"
15 1/4"
5' 6"
4 1/2" Above chine
37"
Draft Dimensions
