CHAPTER 3

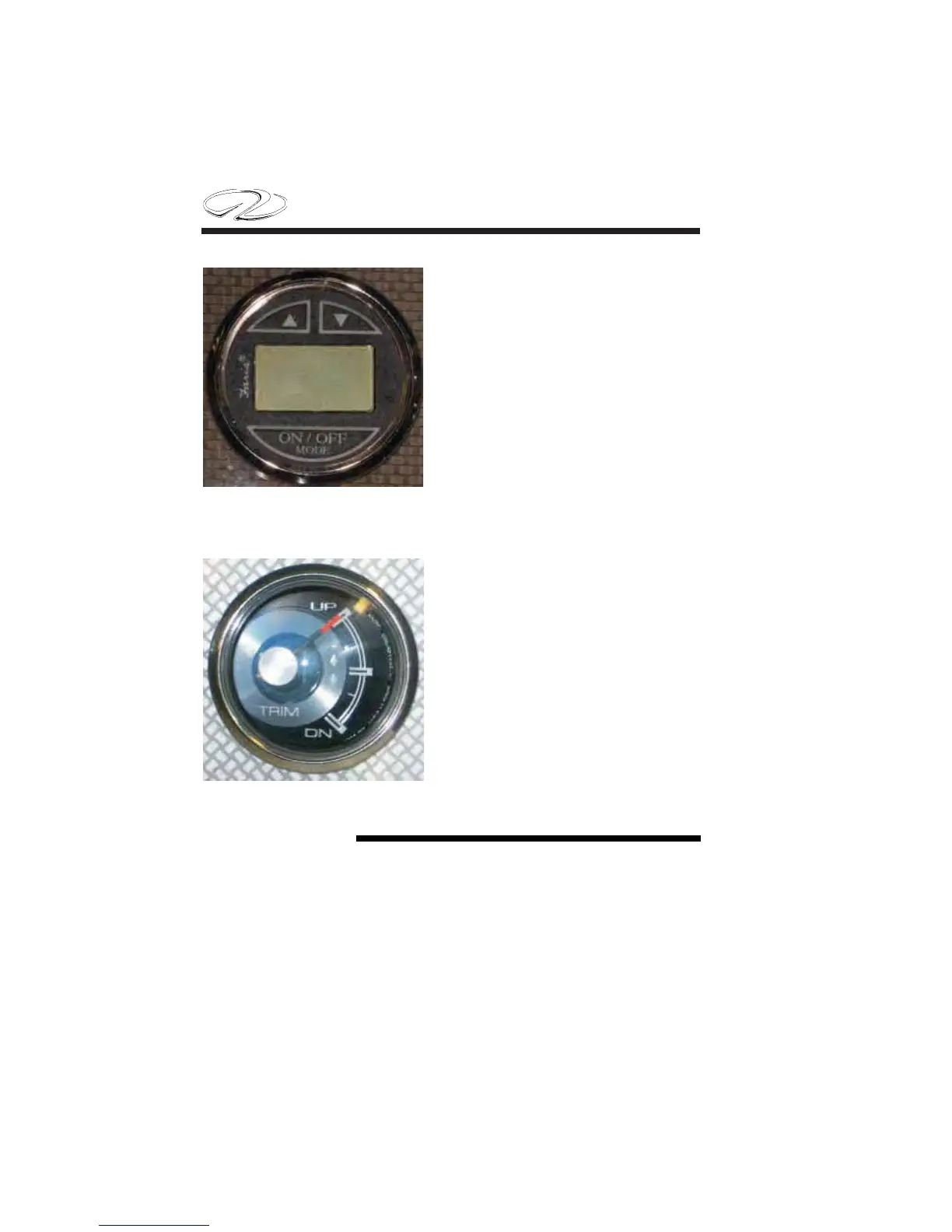

Depth Gauge:
The depth gauge is standard
equipment on selected models.
The depth gauge indicates the water
depth under the keel of the boat. It
features a shallow water alarm. By
monitoring the water depth closely,
damage to props and underwater
hardware may be avoided.
Trim Gauge:
This gauge measures the stern drive
tilt and indicates the relative position
of the bow, up or down when
the boat is on plane. The power
trim normally begins in the down
position when used to accelerate
the boat onto a plane position. The
gauge can be helpful in achieving the
most economical running condition.
Each gauge is designed with a night lighting device. On most models
you activate the instrument lighting by energizing the navigation light
switch. Eliminate condensation inside the gauges by activating the
gauge lights in high humidity environments as needed.
