Bellavista® B36XTCE-11 Gas Fireplace | 25
installation

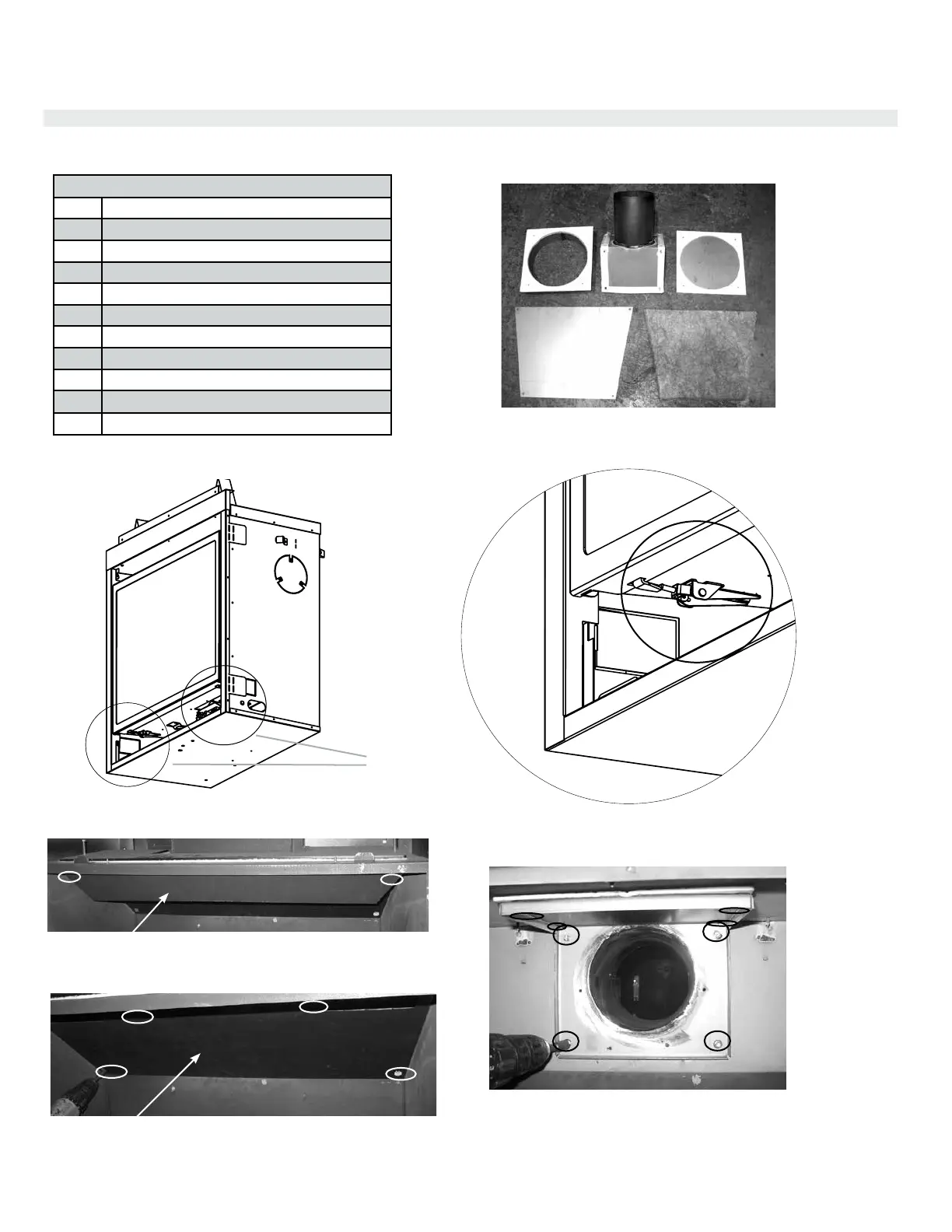

CONVERSION TO TOP VENT
Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit
1 Intake Collar Assembly with Gasket
1 Intake Cover Plate with Gasket
1 Top/Rear Exhaust Assembly with Gasket
1 Heat Deflector
1 Baffle Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1 Intake Collar Gasket (spare)
1 Exhaust Assembly Gasket (spare)
1 Insulation Plate Cover
1 Insulation Filling
Exhaust Assembly
w/ gasket
Intake Cover Plate
w/gasket
Insulation cover
plate
Insulation filling
Intake Collar AssemblyIntake Collar Assembly
w/gasketw/gasket
2. From inside the firebox, remove the top heat deflector by removing
2 screws.
Heat Deflector
Diagram 2
1. Remove the door assembly by releasing the adjustable latches and lifting up off the door frame assembly.
Adjustable Tension
Latch location
Diagram 1
Note: Components shown are installed on unit.
3. From inside the firebox, remove the baffle plate by removing 4 screws
- remove top front screw first. See Diagram 3.
Baffle Plate
Diagram 3
4) From the inside of the firebox, remove the exhaust assembly by
removing the 8 screws. See Diagram 4.
Diagram 4
