40 | Bellavista® B36XTCE-11 Gas Fireplace
installation

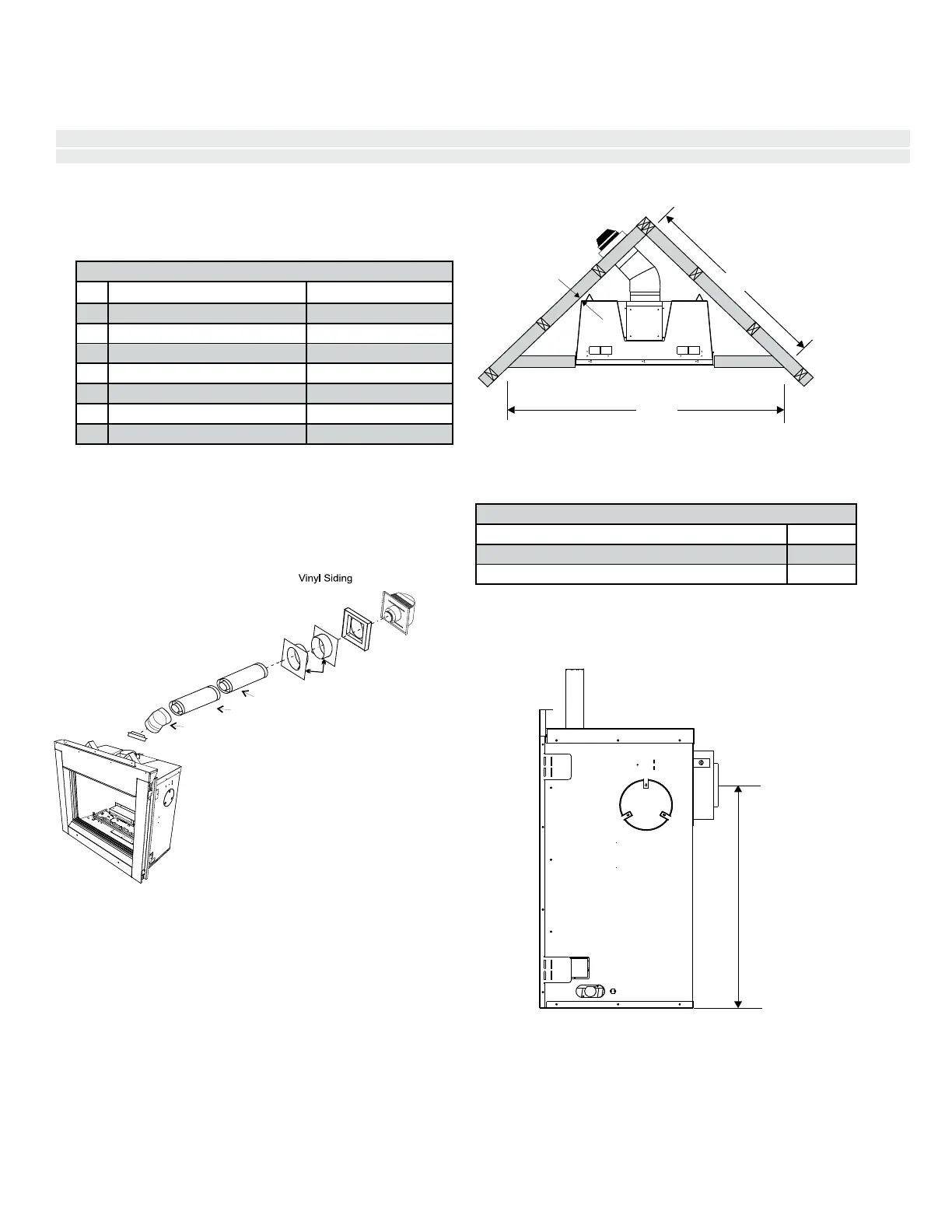

HORIZONTAL TERMINATIONS
ASTROCAP XL & RIGID REAR VENT KIT FOR CORNER INSTALLATIONS
RIGID PIPE 5" X 8"
918-797
10/20/081
B36X/XT
HORIZONTAL 5” X 8” RIGID REAR VENT KIT
FOR CORNER INSTALLA TIONS
Rigid Pipe Adaptor
Pipe Length
Astrocap
XL
Wall Thimble
Standoff
(Optional)
45 elbow
0
5
7-7/8
”
81-1/2
”
4”
Designed for a minimum vent confi guration when using a rear vent
application with a horizontal termination in a corner installation.
Kit 946-612 Includes
1 AstroCap XL 946-623/P
1 Rigid Pipe Adaptor 770-994
1 Vinyl Siding Standoff (Optional) 946-625
1 Wall Thimble 58DVA-WT
1 6" galvanized rigid pipe 58DVA-06
1 8-1/2" galvanized pipe extension 58DVA-08A
1 45º galvanized elbow 58DVA-E45
1 90 ml MillPac 948-128
26-1/2” (673mm)
Placement of the unit into the corner
Back top corner of unit to wall 4"
Inside corner out along the wall 57-7/8"
Across the face of the unit, wall to wall 81-1/2"
