Regency bellavista B36XTCE - Horizontal Terminations; Two (2) 90 Oelbows (Rigid Pipe 4 X 6 - 5;8); Three (3) 90 O Elbows (Rigid Pipe 4 X 6 - 5;8)

Bellavista® B36XTCE-11 Gas Fireplace | 43
installation
V1
H1
H
V

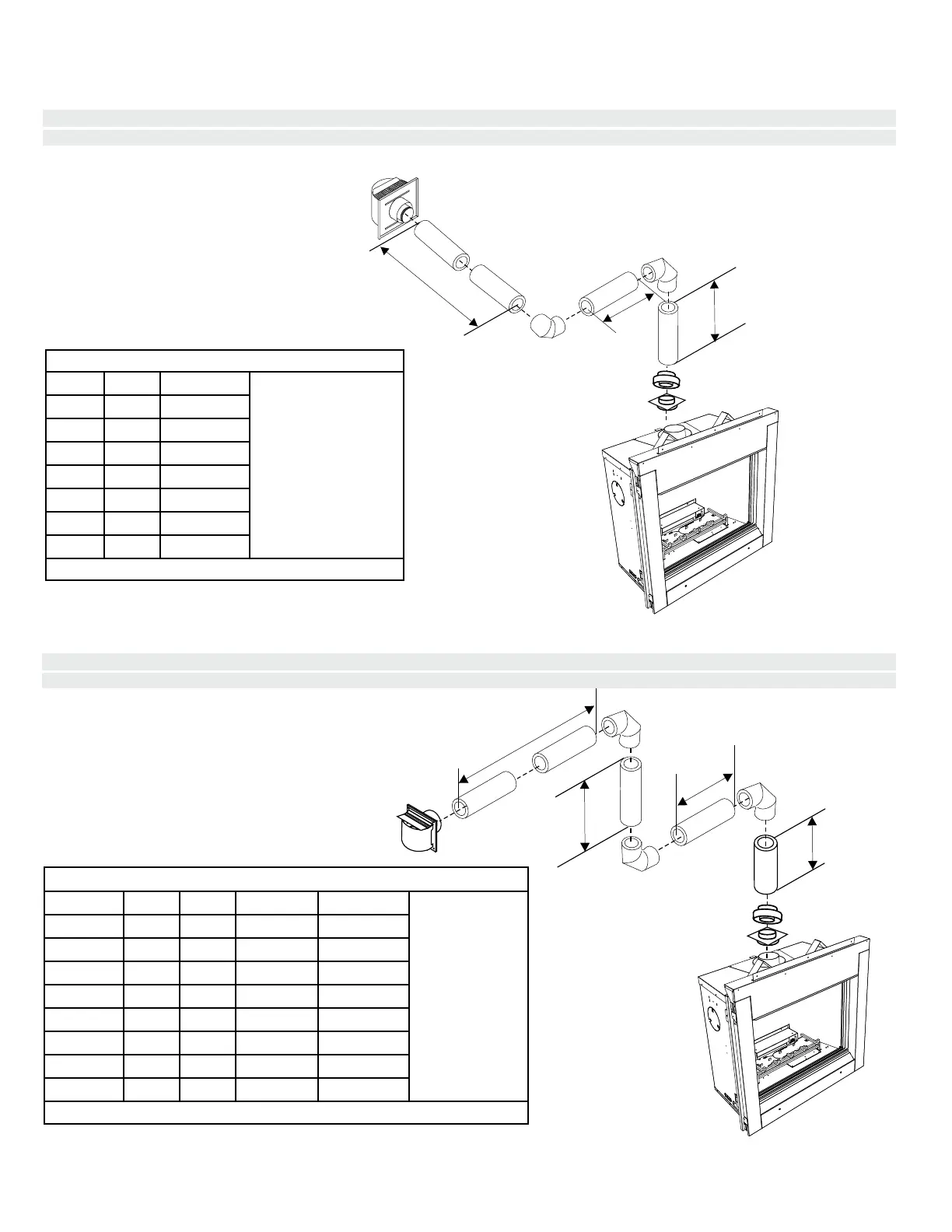

HORIZONTAL TERMINATIONS
TWO (2) 90
O
ELBOWS (RIGID PIPE 4" X 6 - 5/8")
H
H1
V
One 90
o
elbow = Two 45
o
elbows.
Option V H + H1
With these options,
maximum total pipe length
is 30 feet with minimum
of 6 feet total vertical
and maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max
No Vent Restrictor Installed
Lengths do not include elbow indicated.
Must use reducer # 946-606 and rigid pipe adaptor #770-994.
HORIZONTAL TERMINATIONS
THREE (3) 90
O
ELBOWS (RIGID PIPE 4" X 6 - 5/8")
Lengths do not include elbow indicated.
Must use reducer # 946-606 and rigid pipe adaptor #770-994.
One 90
o
elbow = Two 45
o
elbows.
Option V H V + V1 H + H1
With these options,
max. total pipe
length is 30 feet with
min. of 12 feet total
vertical and max. 9
feet total horizontal.
Please note min. 1
foot between 90
o
elbows is required.
A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
No Vent Restrictor Installed
