Regency bellavista B36XTCE - Vertical Terminations; Three (3) 90 O Elbows (Rigid Pipe 4 X 6 - 5;8)

Bellavista® B36XTCE-11 Gas Fireplace | 45
installation
V
H1
H
V1

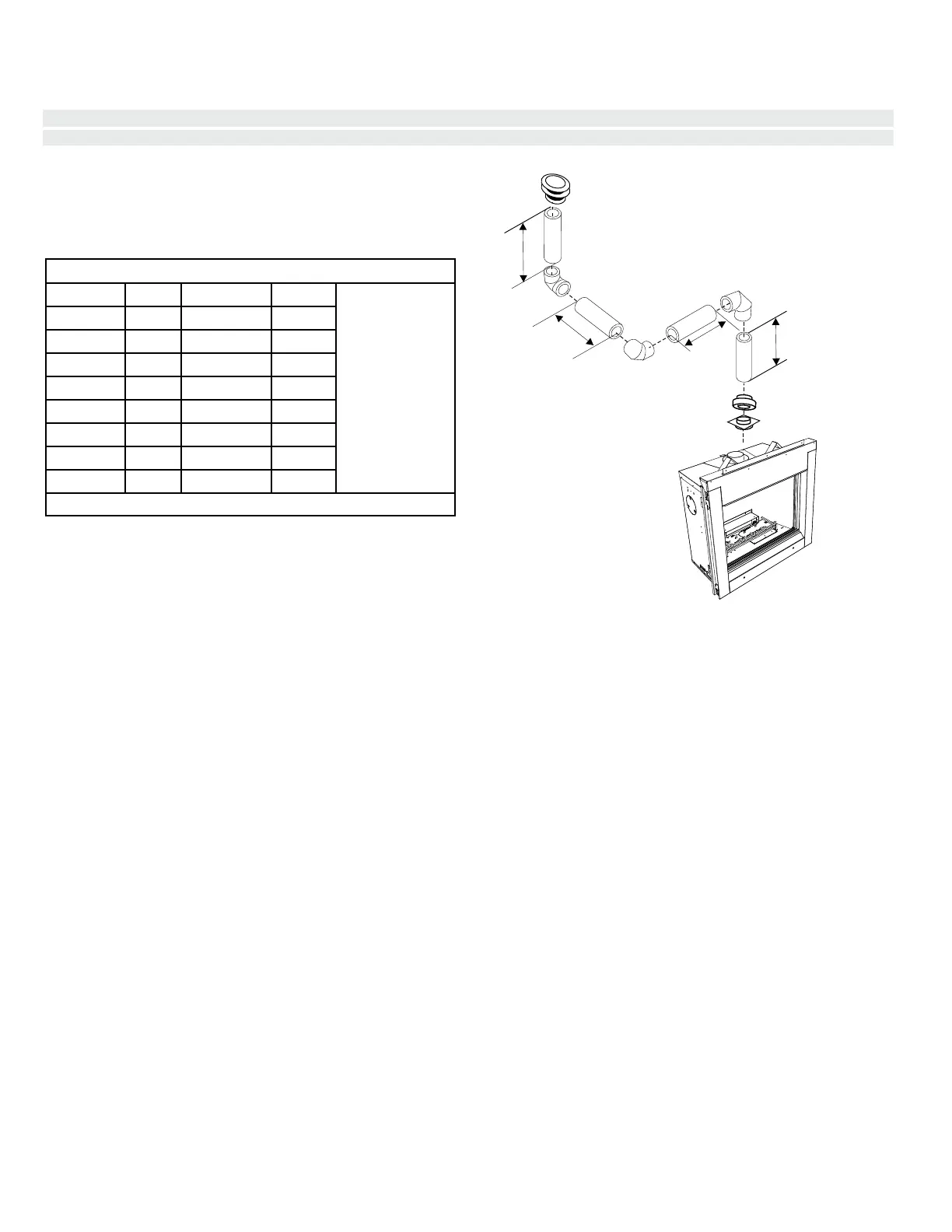

VERTICAL TERMINATIONS
THREE (3) 90
O
ELBOWS (RIGID PIPE 4" X 6 - 5/8")
One 90
o
elbow = Two 45
o
elbows.
Option V H + H1 V + V1
With these options,
max. total pipe
length is 30 feet with
min. of 10 feet total
vertical and max. 8
feet total horizontal.
Please note min. 1
foot between 90
o
elbows is required.
A) 0' Min. 2' Max. 2' Min.
B) 1' Min. 2' Max. 3' Min.
C) 2' Min. 3' Max. 4' Min.
D) 3' Min. 4' Max. 6' Min.
E) 4' Min. 5' Max. 7' Min.
F) 5' Min. 6' Max. 8' Min.
G) 6' Min. 7' Max. 9' Min.
H) 7' Min. 8' Max. 10' Min.
No Vent Restrictor Installed
Lengths do not include elbow indicated.
Must use reducer # 946-606 and rigid pipe adaptor #770-994.
