56 | Bellavista® B36XTCE-11 Gas Fireplace
installation
918-819a 04/20/09
2
B36XT
B
E
A
B
D
Notch location on underside
of Log A
(runs from back - front)
Right Peg - Log E

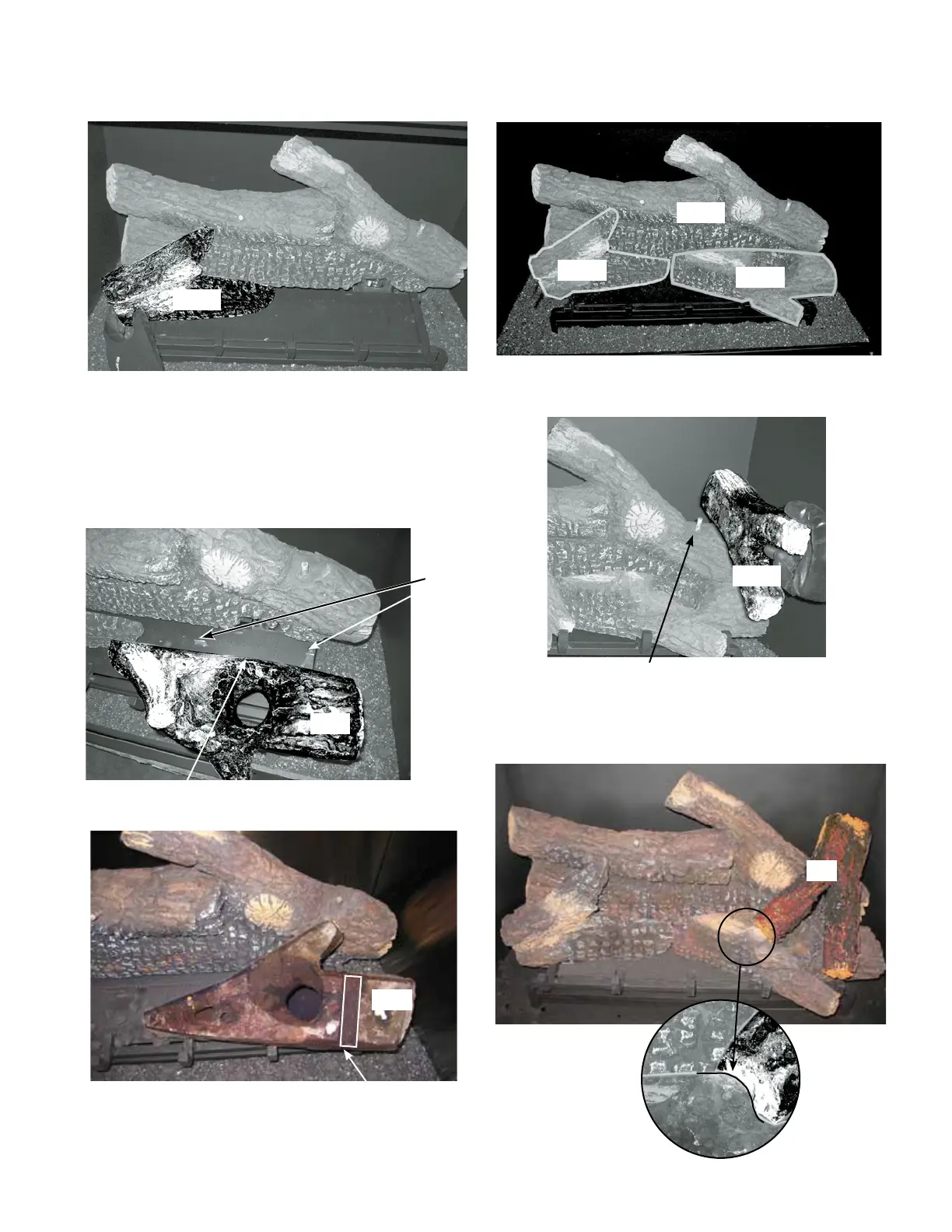

6) Position Log D with the fl at side toward Log E.
Fit Log D into right peg on Log E.
D
5) Place Log A on the front right side of the burner. Position the notch
on the bottom right side of the log into the right side of the grate.
Slide Log A back towards Log E until the fl at surface on Log A rests
up against the tabs on the burner and grate - this maintains a
necessary gap between Logs A & E.
Note: Use the notch on the bottom of Log A as a guide -see below.
Tabs on
burner &
grate
Back of Log A
A
7) The notch on the bottom of Log D rests against the knot on
Log A (as shown below).
A
