Regulus SRS 3 - B11 - 2 Storage Tanks & Heat Exchange Pump; B12 - Solar System with Pool Heating

13
│
R
EGULUS - SRS 3 Controller - www.re
g
ulus.
eu

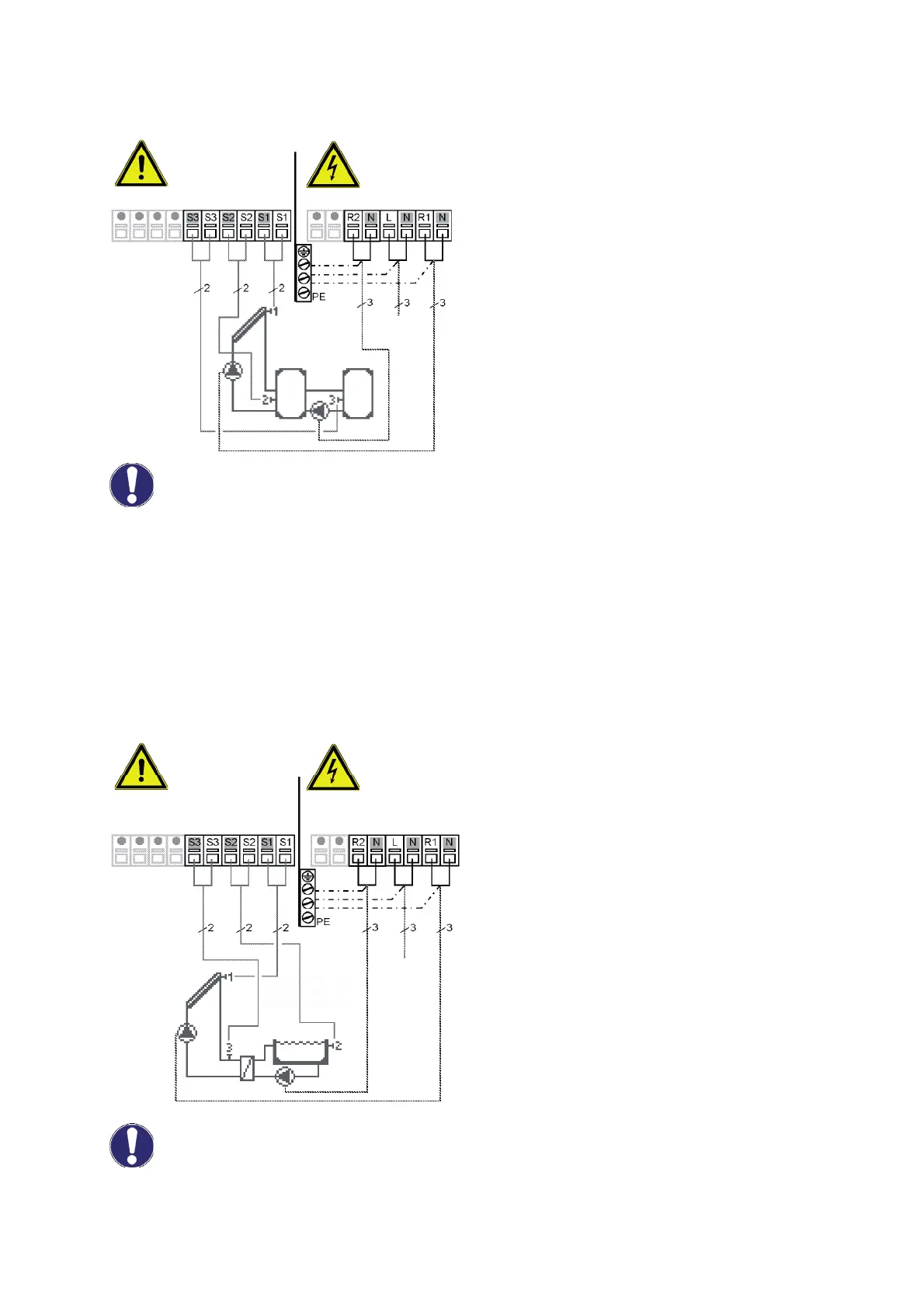

B11 - Solar system with 2 storage tanks and heat exchange pump
Sensor connection - max. 12V Mains voltage - 230V 50Hz
Low voltage - sensor connection
Terminal: connection for:
S1 (2×) sensor 1 collector
S2 (2×) sensor 2 storage tank 1
S3 (2×) sensor 3 storage tank 2
The polarity of the sensors is freely selectable.
Mains voltage - 230V 50Hz
Terminal: connection for:
L mains phase conductor L
N mains neutral conductor N
R1 pump L (speed)
N pump N
R2 pump (storage tank 2) L
N pump (storage tank 2) N
PE protective conductor (green-yellow)
R1 output: for speed control of standard pumps, minimum load 20VA.
B12 - Solar system with pool
Sensor connection - max. 12V Mains voltage - 230V 50Hz
Low voltage - sensor connection
Terminal: connection for:
S1 (2×) sensor 1 collector
S2 (2×) sensor 2 pool
S3 (2×) sensor 3 before heat exchanger
The polarity of the sensors is freely selectable.
Mains voltage - 230V 50Hz
Terminal: connection for:
L mains phase conductor L
N mains neutral conductor N
R1 pump L (speed)
N pump N
R2 pool pump L
R1 pool pump N
PE protective conductor (green-yellow)
R1 output: for speed control of standard pumps, minimum load 20VA.
max. 12V 230VAC
Sensor side
Danger
Danger
Mains side
Mains
230VAC
Optional
max. 12V 230VAC
Sensor side
Danger
Danger
Mains side
Mains
230VAC
Optional
Caution
Caution
