C - Controller Use
C 1 - Display and input

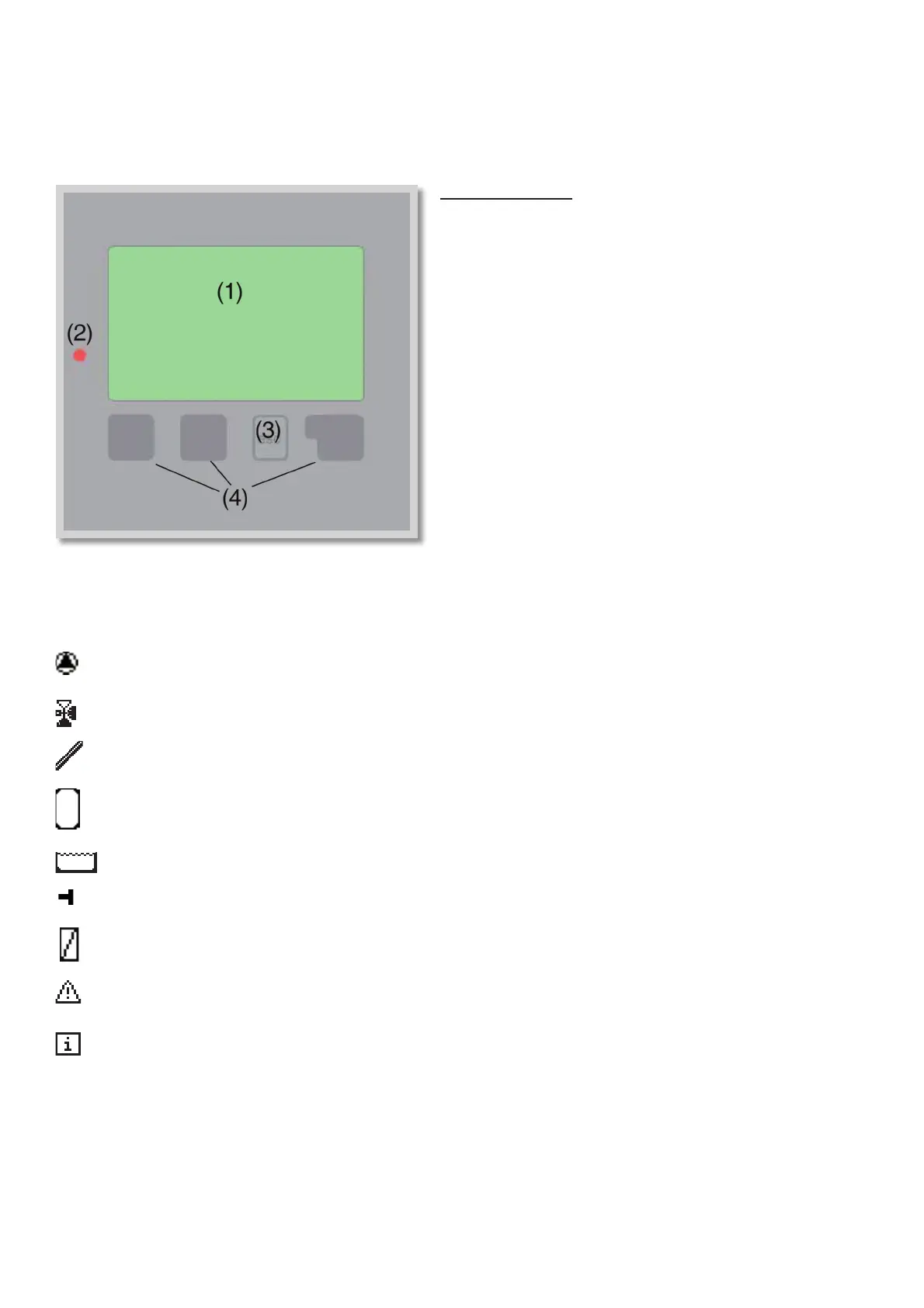

The display (1) shows graphic and text info on the hydraulic variant, set and measured values and other text
info.
The LED lamp (2):
lights up green - if a relay is closed and the
controller works right
lights up red - if the controller is set to
automatic operation and all
relays are open
flashes slowly red - if manual operation mode
is set
flashes quickly red - if an error occurred
Entries are made using four keys (3+4), which are
assigned to different functions depending on the
situation.
The „esc” key (3) is used to cancel an entry or to exit
a menu.
If applicable there will be a request for confirmation
as to whether the changes which have been made
should be saved.
The function of each of the other three keys (4) is
shown in the display line directly above the keys;
the right-hand key generally has a confirmation and
selection function.
Examples of key functions:
+/- increase/decrease values
▼/▲ scroll menu up/down
YES/NO confirm/reject
Info additional information
Back to previous screen
Examples of display symbols:
pump (rotates in operation)
valve (direction of flow black)
collector
storage tank
pool
temperature sensor
heat exchanger
warning/error message
new information available
